Manual-3 rear panel description – Rane MA 6S 1994 version User Manual
Page 5
Manual-3

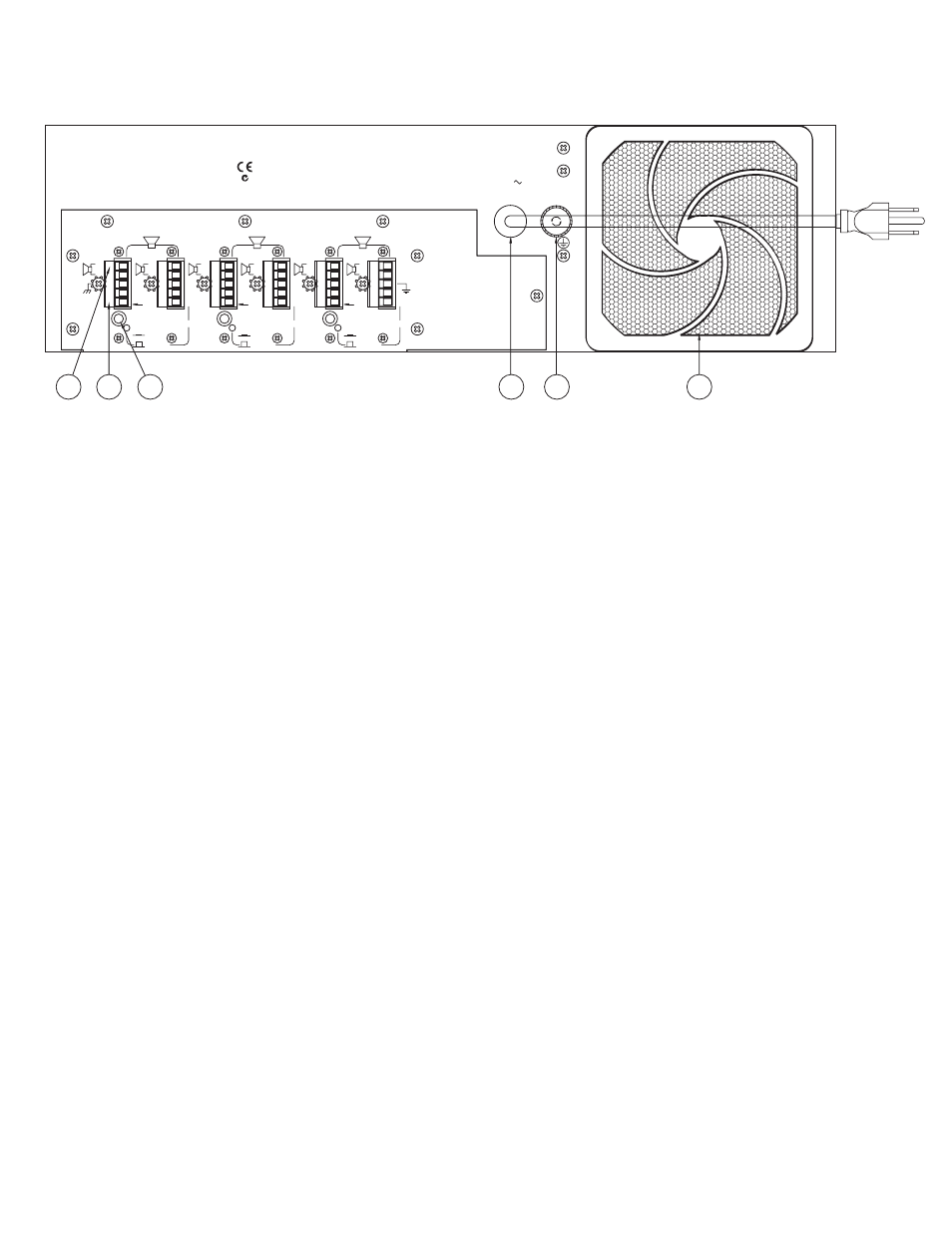

REAR PANEL DESCRIPTION
INPUTS: These are balanced Euroblock connectors. Cable should include two wires with shield. Euroblocks accept up to 12
AWG wire. The shield may be attached to either chassis or signal ground. For unbalanced sources consult the included RaneNote,
“Sound System Interconnection.”
OUTPUTS: Connect the speaker(s) to each of the six channels by means of the Euroblock connectors with 18 to 12 AWG wire
(See for Bridged operation).
NORMAL/BRIDGED switch: With the switch in the out position and the red BRIDGED indicator on, the MA 6S is operating
in BRIDGED mode. The MA 6S utilizes the BRIDGE switch to make internal connections between each pair of channels: 1&2,
3&4, and 5&6. Whenever a signal is connected to an odd numbered channel (say channel 1), the next even-numbered channel is
driven inverted when the BRIDGE switch is activated. Connect Inputs to odd amplifier channels only (1,3,5), and connect speak-
ers to the “+” terminals of each channel pair as shown in gray on the chassis silk-screen. When the BRIDGE switch is inactive, the
internal connection is defeated and both channels operate independently.
AC line cord: Plug this into a grounded l20 VAC AC outlet (or 230 VAC if the MA 6S is internally wired for 230 V operation).
Line FUSE: For 120 volt operation, use only a 15 amp 250 volt Fast-blow (or Normal blow—not Slow blow) fuse, 1.25" long, such
as Buss ABC-15 or equivalent. For 230 volt operation use Buss AGC-8 or equivalent.
Fan filter: This washable filter may easily be removed for periodic cleaning by gently pulling on the black plastic housing and then
lifting it away–perform this feat with the fan off, of course. Once the filter is removed, rinse it under hot tap water; use dish soap
to cut through particularly stubborn “tav sludge.” The MA 6S draws a tremendous amount of air to ensure proper cooling and
resultant long term reliability. Check and clean the filter as often as necessary, especially if the THERMAL overload indicator ever
comes on.
IMPORTANT: Keep this filter clean to ensure proper cooling and reliability. Never remove the filter with the unit plugged in.
2
1
3
4
5
6
MA 6S
ACN 001 345 482
MADE IN U.S.A.
RANE CORP.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK DO
NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. DO
NOT REMOVE COVER. NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
AVIS
RISQUE DE CHOC ELECTRIQUE — NE PAS OUVRIR
CAUTION
TO REDUCE THE RISK OF FIRE REPLACE ONLY WITH THE SAME
TYPE FUSE. DISCONNECT SUPPLY CORD BEFORE CHANGING
FUSE.
ATTENTION
UTILISER UN FUSIBLE DE RECHNAGE DE MÊME. DÉBRANCHER
AVANT DE REMPLACER LE FUSIBLE.
120VAC UNIT: FUSE TYPE 3AB 15A/250VAC FB
230VAC UNIT: FUSE TYPE 3AB 8A/250VAC FB
CAUTION
TO PREVENT POSSIBLE INJURY
TURN UNIT OFF AND UNPLUG AC
LINE CORD BEFORE REMOVING FAN
FILTER GUARD FOR CLEANING.
FOR CONTINUED GROUNDING
PROTECTION DO NOT REMOVE SCREW
50/60 Hz
1400 WATTS
TYPICAL
120 V
INPUT
BRIDGED
300 WATTS / 8
Ω
USED)
(NOT
300 WATTS / 8
Ω
USED)
(NOT
300 WATTS / 8
Ω
USED)
(NOT
BRIDGED SPEAKER
BLACK
RED +
BRIDGED SPEAKER
+
–
BLACK
RED +
RED +
BRIDGED SPEAKER
BLACK
INPUT
BRIDGED
+
–
INPUT
BRIDGED
+
–
6
5
4
3
2
1
NORMAL
CLASS 2
150 WATTS / 4
Ω
100 WATTS / 8
Ω
OUTPUT POWER PER CHANNEL
CLASS 2
150 WATTS / 4
Ω
100 WATTS / 8
Ω
OUTPUT POWER PER CHANNEL
CLASS 2
150 WATTS / 4
Ω
100 WATTS / 8
Ω
OUTPUT POWER PER CHANNEL
NORMAL
NORMAL
CHASSIS
GROUND
–
+
IN
–
+
IN
+
–
–
+
IN
+
–
–
+
+
–
IN
–
+
IN
–
–
+
+
+
IN
–
–
+
SIGNAL
GROUND
U
S
SE
FU
E
S
U
F
E
F
