OPERATORS MANUAL
Quick Start
Connect the output from any stereo source such as a mixer
or tape deck, and plug the left and right inputs into the respec-
tive INPUT jacks. The Inputs accept balanced or unbalanced
sources. Just plug them in. This source is now routed to each of
the four Outputs.
For a single mono source feeding all headphones, connect
it to either one of the INPUT jacks and engage the STEREO/
MONO switch. Set the LEVEL controls for individual head-
phone levels.
Never connect anything except a Rane power supply to the
thing that looks like a telephone jack on the rear of the unit.
This is an AC input and requires special attention if you do not
have a power supply exactly like the one originally packed with
your unit. See the full explanation of the power supply require-
ments on page Manual-3.
WEAR PARTS: This product contains no wear parts.

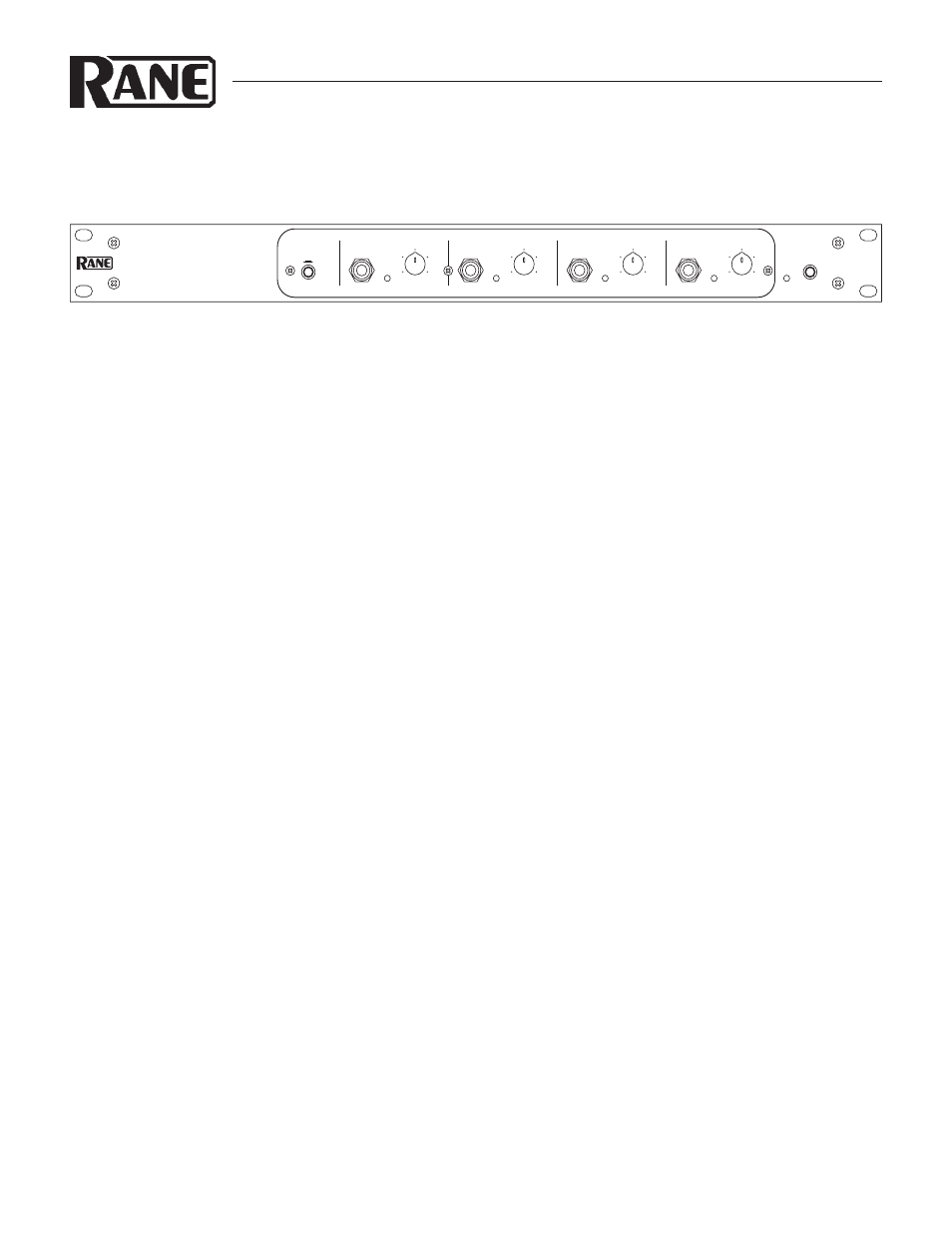

HC 4
HEADPHONE AMPLIFIER
10 0
2
4
8
6
10 0
2
4
8
6
10 0
2
4
8
6
10 0
2
4
8
6
MONO
CONSOLE
HEADPHONE
PHONES PHONES PHONES PHONES LEVEL LEVEL LEVEL LEVEL OL OL OL OL
1 2 3 4
STEREO
SOURCE
HC 4
POWER
HC 4 Connection
With the power switch in the off (out) position, plug the
power cord into the appropriate AC power source indicated on
the rear panel. Locate the power supply case away from the HC 4
and other hum sensitive equipment.
Begin with all LEVEL controls counterclockwise at “0.” Plug
the outputs from a mono or stereo source into the INPUTS.
See the Sound System Interconnection RaneNote for informa-
tion on proper cable wiring between devices that have different
connector types and grounding schemes.
