Rane ECS Hardware (ECB 62e and ECM 82e) User Manual
Page 12
HW Manual-12
AMX AX 232 to ECB 62e - Euroblock to DB-9 male
PC to ECB 62e - DB-25 female to DB-9 male
PC to ECB 62e - DB-9 female to DB-9 male
Unbalanced source to balanced ECB 62e Input, 1-conductor cable with shield

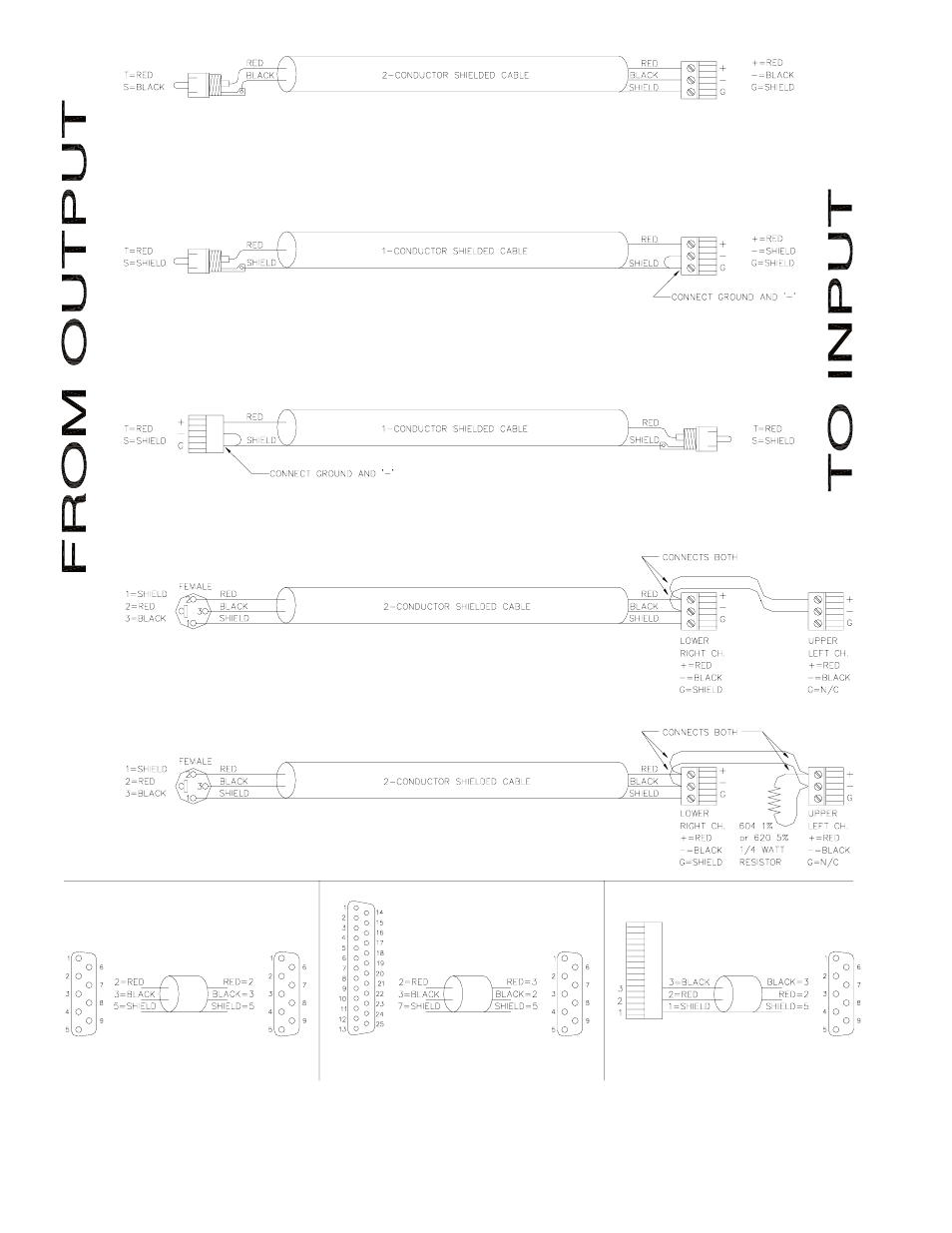

Figure 13. ECS cable wiring
Balanced mono source to a stereo ECB 62e with transformer type termination
Balanced mono source to a stereo ECB 62e
Unbalanced source to balanced ECB 62e Input, 2-conductor cable with shield
Balanced ECB 62e Output to an unbalanced unit
