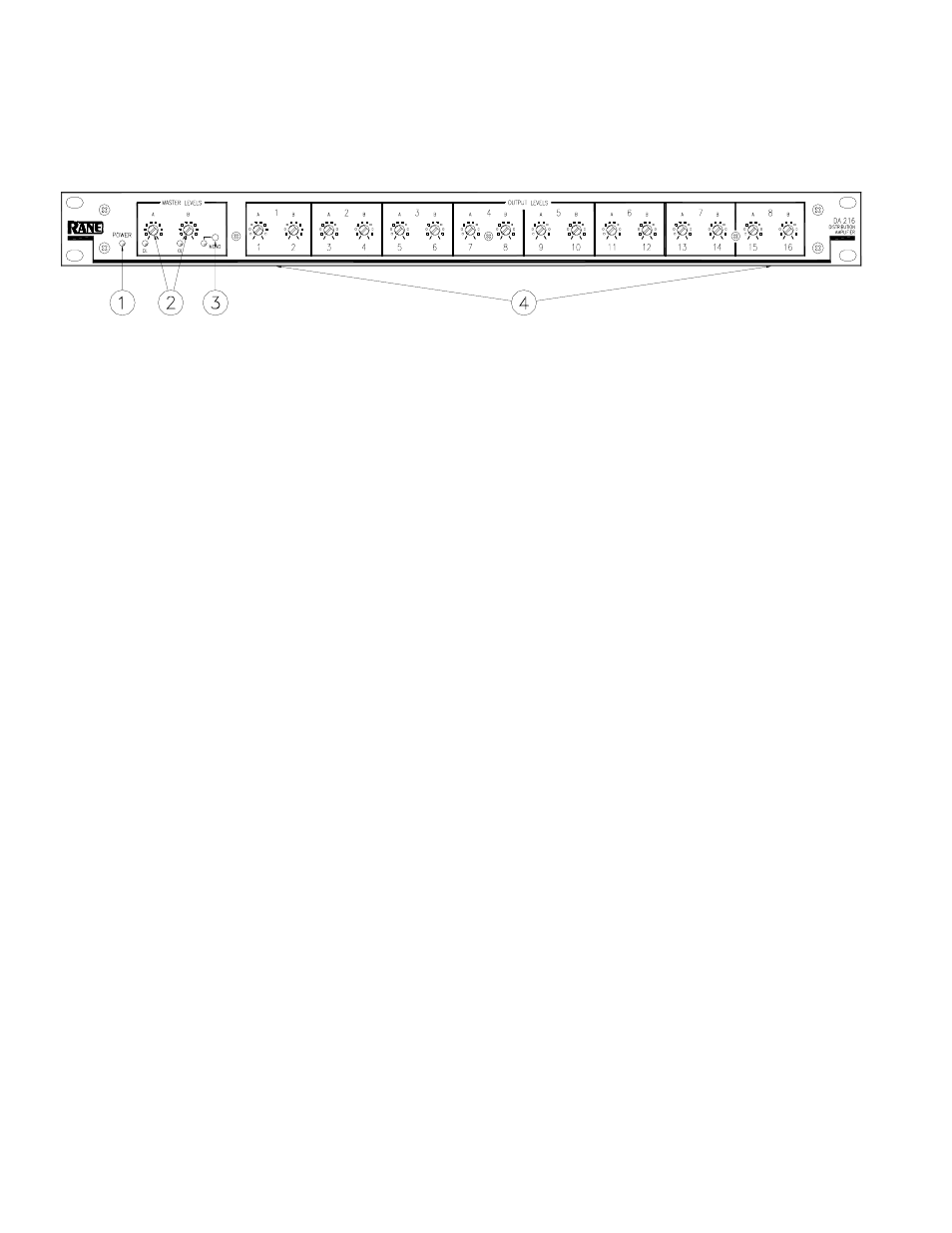

DA 216 FRONT PANEL
1. POWER indicator. When this yellow LED is illuminated, the following information should be correct. If darkness is
present at this location, most or all of the below will be speculation at best.
2. MASTER LEVELS. These screwdriver adjustable controls set the Gain of each Input to be routed to bus A or B for Stereo
operation, or to the odd and even buses for Mono use. The OVERLOAD LEDs illuminate whenever the input section
approaches clipping.
3. MONO switch. This switch is accessed through its hole in the front panel. Any small tool that fits in the hole can actuate the
switch. The associated LED illuminates when in the MONO mode.
4. OUTPUT LEVELS. Each pair of OUTPUT controls sets the individual Channel Output levels. The DA 216 is a combined
stereo or mono unit, depending on the status of the MONO switch. Stereo outputs are labeled in white, mono outputs are
labeled in gray.
