- 8 -
,, ,, , ,
Outside Corner Inside Corner

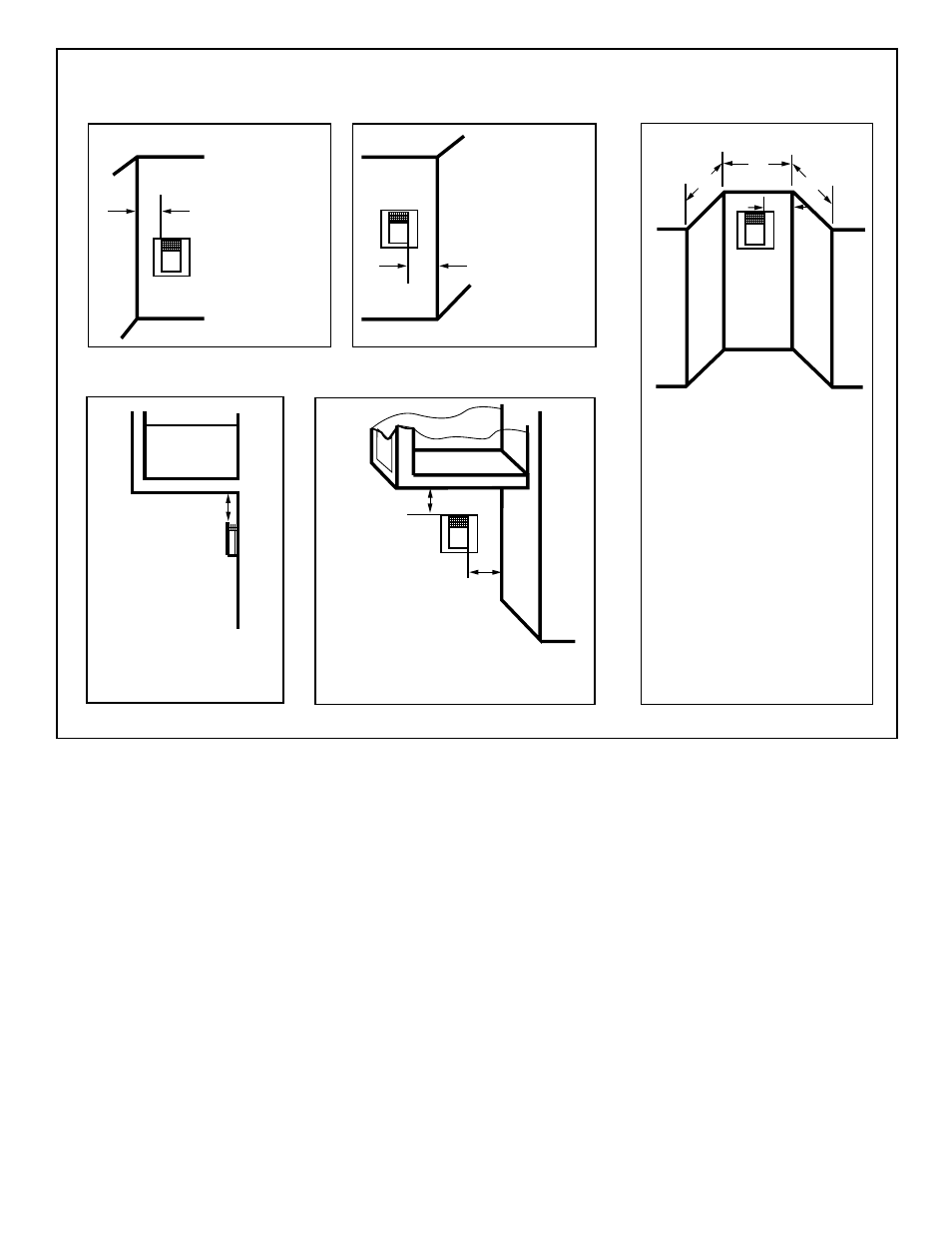

Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
A =
Combustible
6"(152mm)
Noncombustible
2"(50mm)
B =
Combustible
6"(152mm)
Noncombustible
2"(50mm)
,
A
,,
,,
Balcony -
with no side wall
G =
Combustible
24"(610mm)
Non-Combustible
18"(457mm)
G
Balcony -
with perpendicular side wall
H = 24"(610mm)
J = 20"(508mm)
H
J
B
Recessed Location
C = Maximum depth of 48"
(1219mm) for recessed
location.
D = Minimum width for back wall
of a recessed location.
Combustible 38"(965mm)
Noncombustible 24"(610mm)
E = Clearance from corner in
recessed location.
Combustible 6"(152mm)
Noncombustible 2"(50mm)
,,
C
D
C
E
V
V
Combustible &
Non-Combustible
V V
V
Fig. 8
