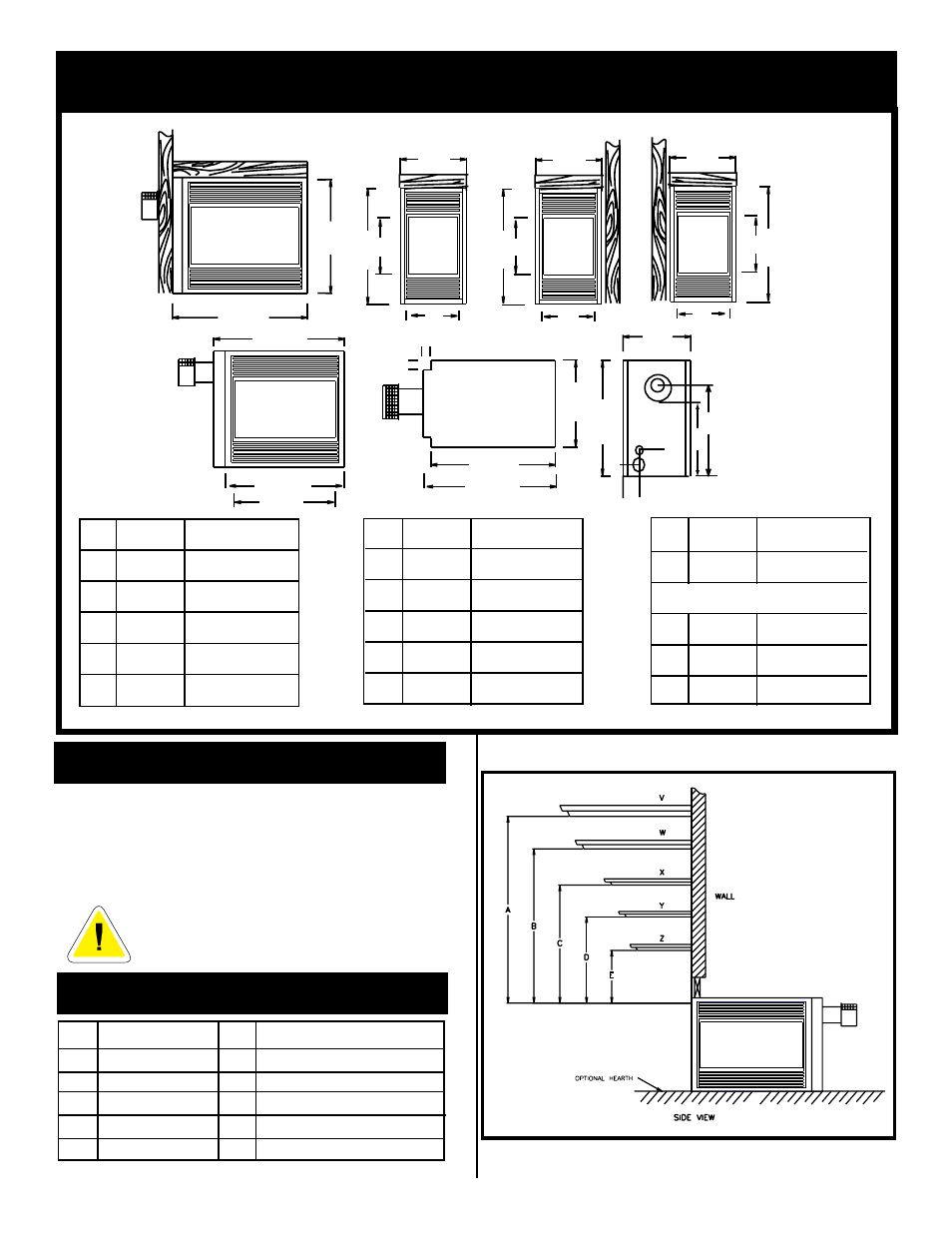

FIREPLACE DIMENSIONS
MANTELS
Depending on the width of the mantel it may be installed
higher or lower from the top of the louvre opening. See
drawing and chart below for proper installation height of
your combustible mantel piece. Non-combustible mantels
may be installed at any height above the appliance opening.
When using paint or lacquer to finish the
mantel, such paint or lacquer must be
heat resistant to prevent discolouration.
Ref. Mantel Width
Ref. Height from Top Louvre
V
10" (254 mm)
A
12" (305 mm)
W
8" (203 mm)
B
10" (254 mm)
X
6" (152 mm)
C
8" (203 mm)
Y
4" (101 mm)
D
6" (152 mm)
Z
2" ( 51 mm)
E
4" (101 mm)
MANTEL CHART
Fig. 2
A
38
1/2"
978mm
B
34
1/4"
870mm
C
34
3/4"
882mm
D
21"
533mm
E
33"
838mm
F
17
1/4"
438mm
G
22"
559mm
H
24
1/2"
622mm
I
29"
737mm
J
2
1/2"
63mm
K
4"
102mm
L
3
1/4"
83mm
M
3
3/4"
95mm
N
2"
50mm
FRAMING & FINISHING
O
22"
559mm
P
38
3/4"
984mm
Q
34
1/2"
876mm
A
C
E
M
N
G
C
B D
F
P
Q
O
A
J
K
L
G
B
H
I
B D
F
O
O
B
D
F
DVRS3
DVRSR DVRSL
