- 28 -
REAR
REFRACTORY
BOTTOM SIDE
REFRACTORY
BOTTOM SIDE
REFRACTORY
BOTTOM END
REFRACTORY
BOTTOM
REFRACTORY
MANIFOLD SIDE

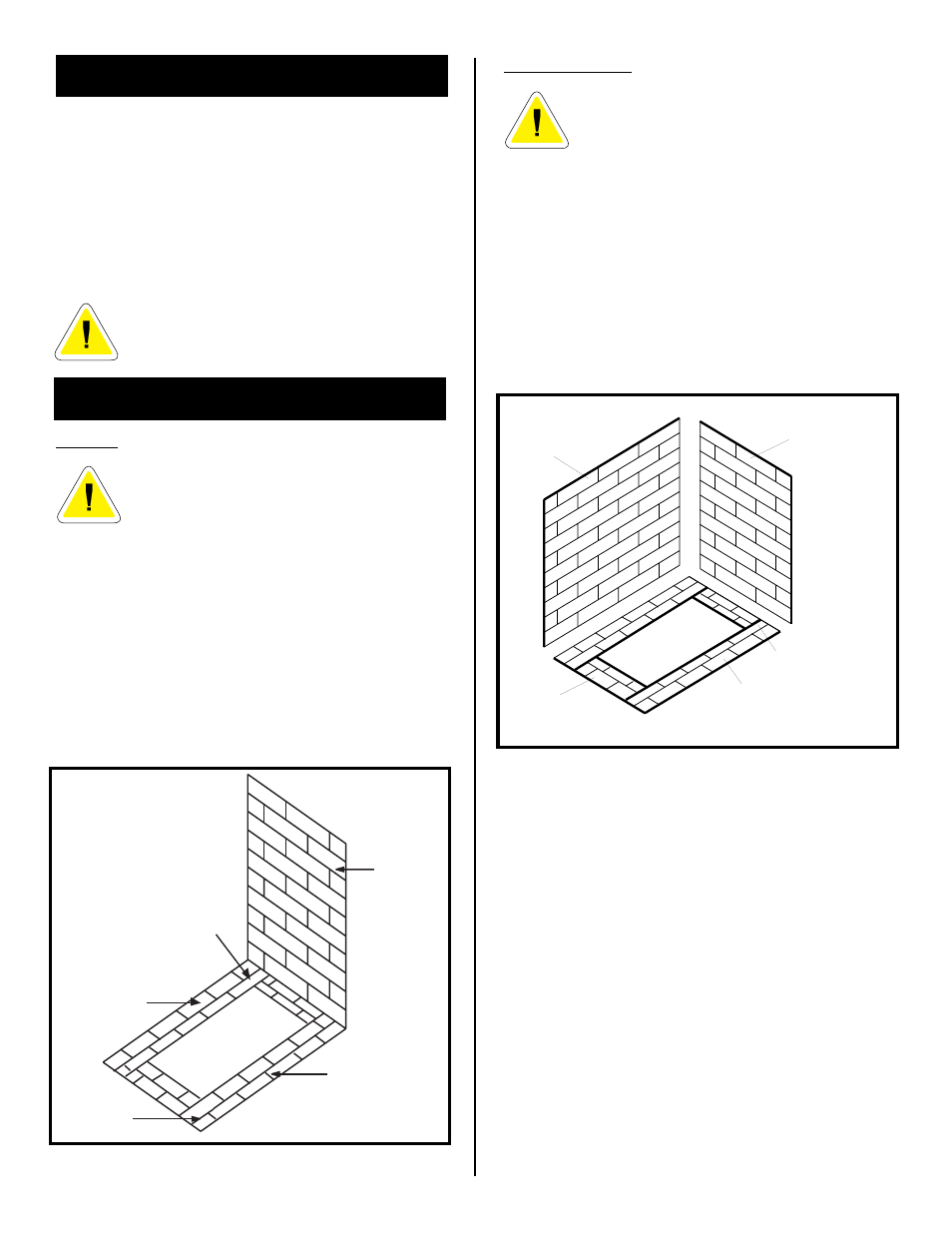

CERAMIC REFRACTORY INSTALLATION
1 . Unpack ceramic refractory from its carton. HANDLE
REFRACTORY CAREFULLY.
2. Place bottom refractory manifold side onto fireplace
floor and slide under rear refractory.
3. Place bottom sides onto fireplace floor.
4. Place bottom end refractory onto fireplace floor.
GLASS CLEANING
It will be necessary to clean the glass periodically. During
start-up condensation, which is normal, forms on the inside
of the glass and causes lint, dust and other airborne
particles to cling to the glass surface. Also initial paint
curing may deposit a slight film on the glass. It is therefore
recommended that the glass be cleaned two or three times
with a non-ammonia household cleaner and warm water
(we recommend gas fireplace glass cleaner). After that the
glass should be cleaned two or three times during each
heating season depending on the circustances present.
Clean glass after first two weeks of
operation.
Fig. 66
DVRS3 (Fig. 66)
1 . Unpack ceramic refractory from its carton. HANDLE
REFRACTORY CAREFULLY.
2. Place bottom rear refractory manifold side onto fire-
place floor and slide under rear refractory.
3. Place bottom side refractory onto fireplace floor.
4. Place bottom end refractory onto fireplace floor.
Fig. 67
SIDE
REFRACTORY
REAR
REFRACTORY
BOTTOM END
REFRACTORY
BOTTOM SIDE
REFRACTORY
BOTTOM
REFRACTORY
MANIFOLD SIDE
DVRSL/DVRSR Fig. 67
Rear refractory is already installed
from factory.
Rear and side refractory are already
installed from factory.
