Steps to Programming
Your Curtis Cafe System is Factory Pre-Set for Optimum Performance. Usually this Does Not Change.
Manual Liquid Dispensing Mode
This feature sets up the Café PC unit to dispense product only as long as the user holds down the selected PUSH button.
As soon as the user stops pressing the button, product stops flowing into the cup. Setting the unit for Manual Liquid Dispense will turn off the
Portion Control Dispense Mode.
Enter Program Mode – press and hold STOP/WASH for about ten [10] seconds until all
lights start blinking.
To program Product % Ratio, press and hold the selected PUSH button for approximately
one second, then release. The current setting will be indicated by LED flashes.
To change the product throw, press and hold the button until light starts quick flashing. Each quick flash increases
the amount by 10%. Release the button when the desired throw amount is achieved. After releasing the button, the
number of blinks represent the new setting.
To exit the Powder Dispensing Mode, push any other PUSH button.
Product % Ratio
This controls the amount of dry product that is metered from the hoppers. This can be programmed from 10% to 100%
of the capacity of the dispensing system. By counting LED flashes you can determine the product % ratio currently set
for this dispense button (see table).
Portion Control Liquid Dispensing Mode
This program adjustment allows you to setup the machine to automatically dispense a preset volume of cappucino product. When the user
makes a PUSH button selection, the unit dispenses only the volume of cappucino product programmed by the Portion Control Dispensing
Mode. By setting the unit for Portion Control Dispensing, you have locked out the manual dispense feature.
Enter Program Mode – press and hold STOP/WASH for about ten [10] seconds until all lights start blinking.
To select & change the Portion Control Dispensing Volume – while in the programming mode, press and hold the
selected PUSH button until the liquid begins to flow, then release. The timing starts when liquid begins to flow.
Stop & Exit – When 3/4 of the cup volume is achieved, press the PUSH button once again to stop the dispensing.
You have now set the timing for this button and have exited the programming mode. Pressing the dispense button
now will provide the liquid volume that you just set. To reset the timing, you must start again by entering the program-
ming mode.
WARNING HOT LIQUID, Scalding
may occur. Avoid splashing.
Place an empty container under the
dispensing nozzles while programming.

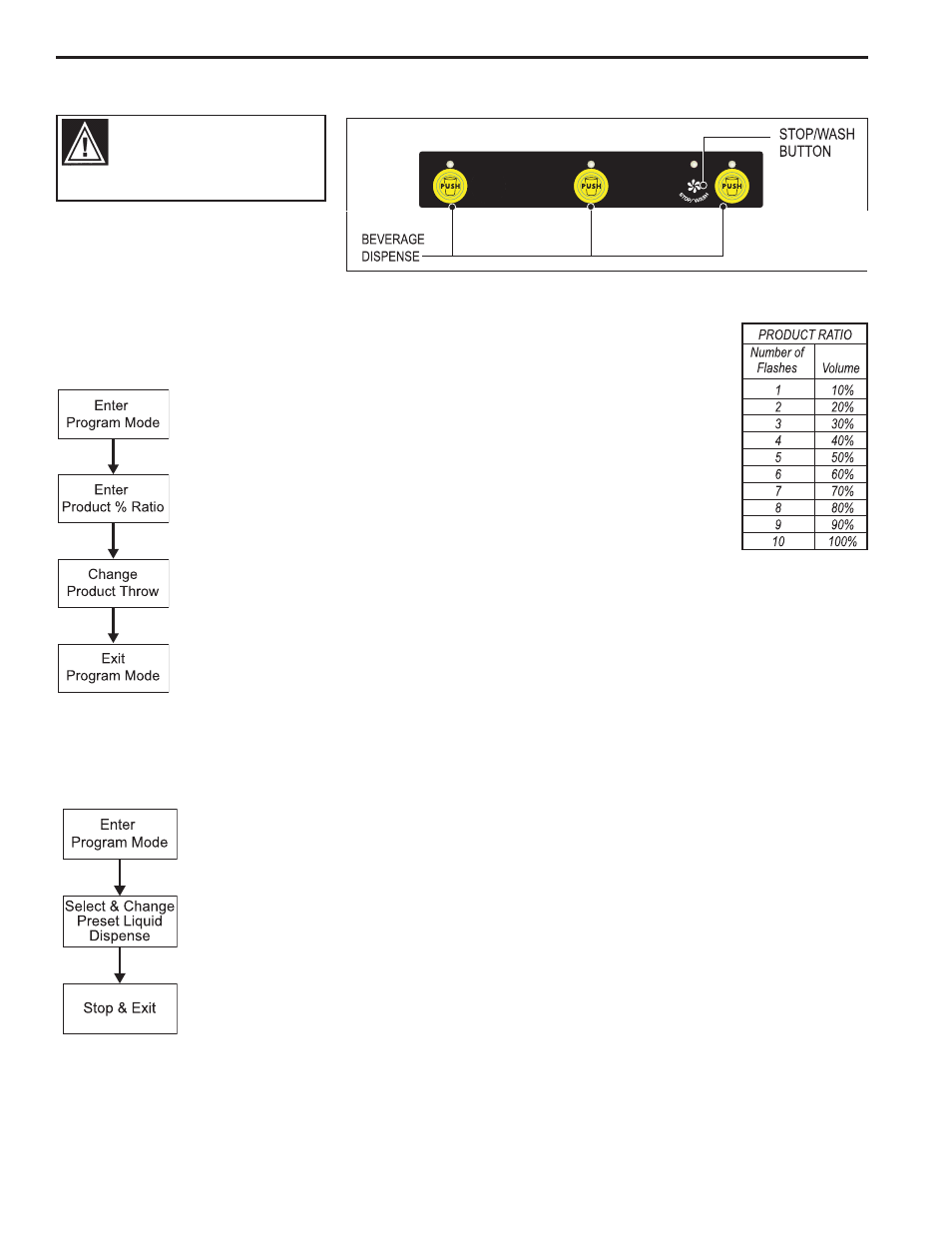

All programming is performed at the control panel
(illustration, right).
The STOP/WASH BUTTON has several func-
tions. This button is used to stop a Portion Control
dispense cycle. It is used to wash out the mixing and dispensing systems and it is used to enter programming functions.
