Wilbur Curtis G4GEMTIF - Manual (Page 13)

13
22.250"
(56.5 cm)
SHOWING WC-3422
BREW CONE ASSEMBLY
18.125"
(46.0 cm)
30.625"
(77.8 cm)
5.500"
(14.0 cm)
7.750"
(19.7 cm)
12.625"
(32.1 cm)
4.000"
(10.2 cm)
11.875"
(30.2 cm)
.875"
(2.2 cm)
.125"
(.3 cm)
.250"
(.6 cm)
Illustrated Parts List
ITEM NO. PART NO. DESCRIPTION
22 WC- 571K-R KIT, IF CONNECTOR- RIGHT
22A WC- 571K-L KIT, IF CONNECTOR- LEFT
23 WC-43133 O-RING, 1.424ID X 1.630 OD X .103 WALL GEMIF’s
24 WC-3528 LEG, 4” ADJUSTABLE 3/8-16 THRD STYLIZED
25 WC-5310* TUBE, 5/16 ID x 1/8W SILICONE
26 WC-5350* TUBE, SILICONE Ø1/2” ID x Ø3/4” OD x 1/8” WALL
27 WC-2402P ELBOW, 3/8 NPT x 3/8 FLARE PLATED
28 WC- 847* VALVE, INLET 2 GPM 120V-10W
29 WC-13450 HARNESS ASSY, COMPLETE TP2T10G4/GEMTS10G4/GEMTIF10G4
30 WC-1501 FUSE, HOLDER ASSY w/5A FUSE
31 WC- 102 * SWITCH, TOGGLE SPST 15A 125Vac RESISTIVE
32 WC-4212-02 NUT, 5/8-18 JAM PLASTIC-ULTEM
33 WC-37121 KIT, DUMP VALVE LEFT
34 WC- 442* SOLENOID, LOCK BREW CONE RIGHT 120VAC
35 WC-2977-101K KIT,SPRAYHEAD FITTING PLASTIC
36 WC-43089* GASKET, 1.00”OD x .625” I.D. x .030” THK RED SILICONE 40 SHORE
37 WC-39812 LABEL, OUTER TOUCHSCREEN GEMTSG4 CURTIS LOGO
38 WC-10000* CONTROL MODULE, TOUCH SCREEN G4
39 WC- 589-101 TRANSFORMER, 120/230VAC - 24VAC 4.8VA w/LEADS & TERMINALS
40 WC- 844-101* VALVE, BYPASS 120V-14W NON ADJUSTABLE WITH RESTRICTOR (WC-2945)
41 WC-37122* KIT, DUMP VALVE RIGHT
42 WC-10008 UNIVERSAL HOST ADAPTER (USB)
43 WC-10001* UNIVERSAL POWER MODULE - G4
44 GEM3IF 1½ GALLON SATELLITE SERVER WITH INTELLI-FRESH
* RECOMMENDED PARTS TO STOCK

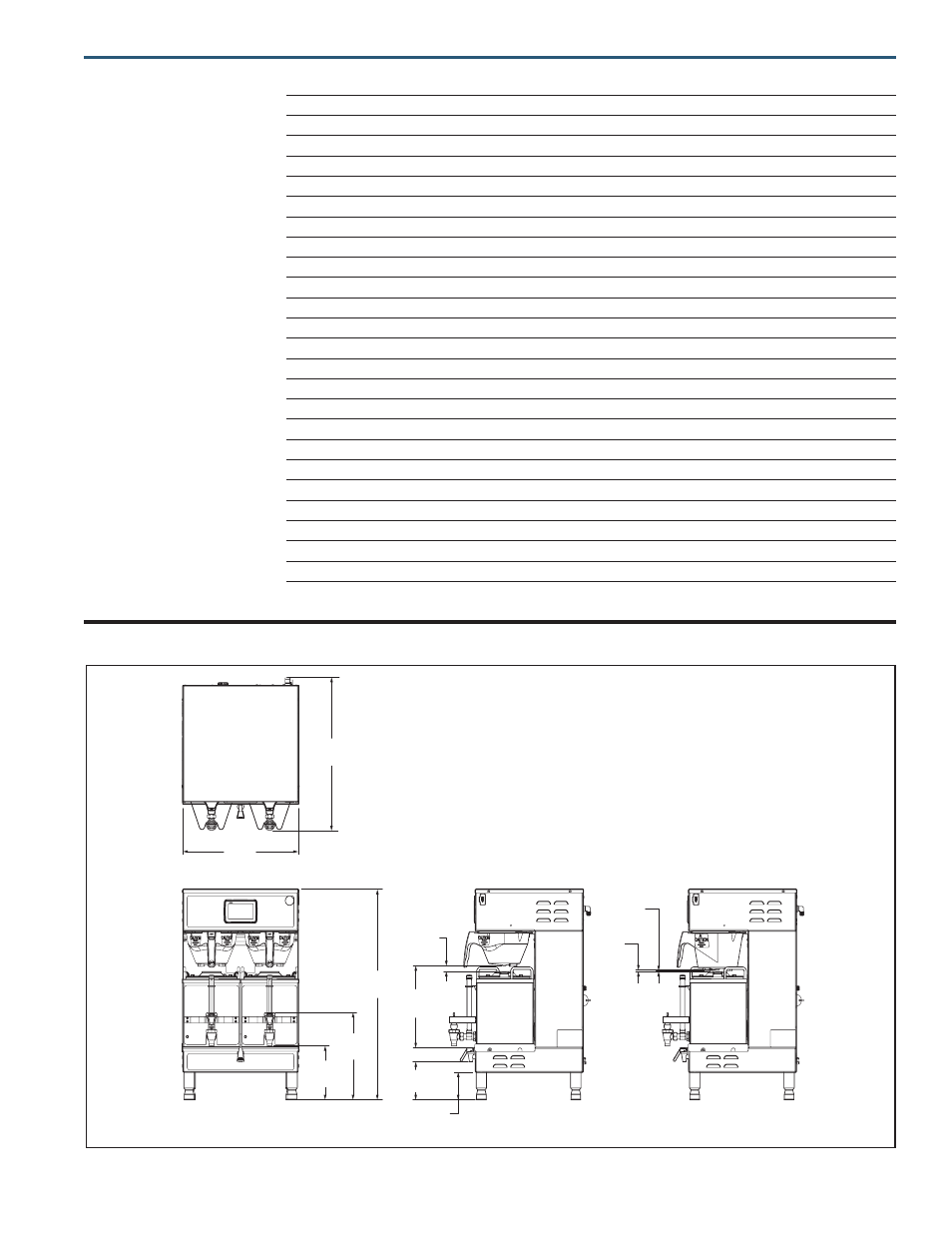

Rough-In Drawing
