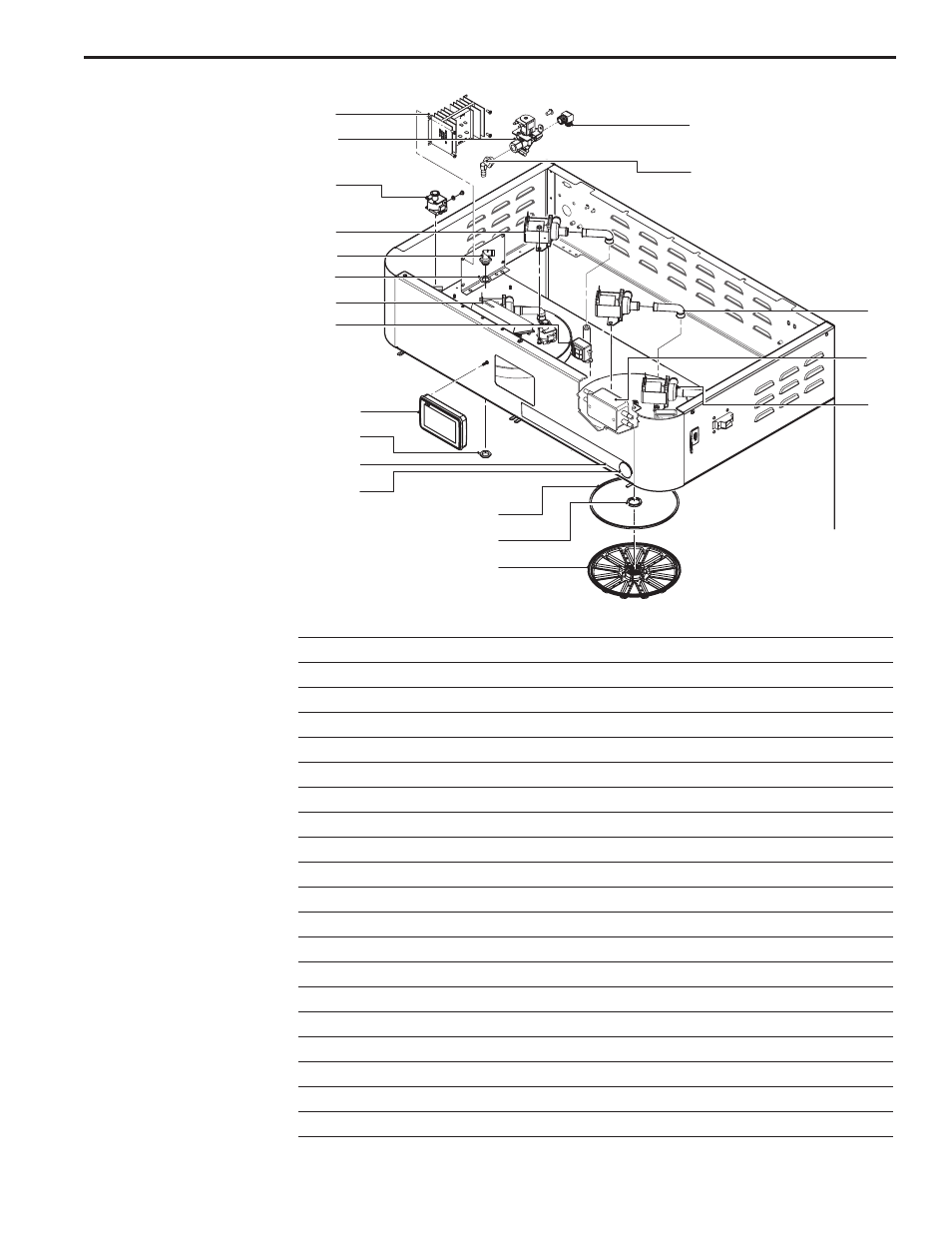

Illustrated Parts
Top Wrap
28
37
31
32
39
40
33
34
41
42
43
44
45
35
36
46
47
38
30
29
RELAY, SOLID STATE 40A W/INTEGRATED HEATSINK
BREAKER, CIRCUIT 2-POLE 20A/250VAC
NOISE, EMI FILTER 250VAC 20A
SOLENOID, LOCK BREW CONE RIGHT 120VAC
VALVE, DUMP .50 INCH 120VAC 50-60HZ
UNIVERSAL POWER MODULE G4
TRANSFORMER, 120/230VAC-24VAC 4.8VA W/LEADS
CONTROL MODULE (UCM), TOUCH SCREEN G4
NUT, 5/8-18 JAM PLASTIC ULTEM
VALVE, INLET 120V-10W 4GPM
ELBOW, SILICONE
FITTING, SPRAYHEAD ULTEM (NO INSERT)
GASKET, 1.00”OD x .625” I.D. x .030” THK SILICONE
O-RING, 7.484 I.D. X .139 THICK BUNA-N
O-RING, .984 I.D. X .130 THICK BUNA-N
SPRAYHEAD, PLASTIC 8 INCH DIAMETER
ELBOW, 3/8 NPT x 3/8 FLARE PLATED
FITTING, 3/8” MNPT x 3/8” HOSE BARB SS
LABEL, FRONT WRAP OMEGA
LABEL, GOLD CUP NAMEPLATE
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47 WC-8559*
WC-1516
WC-588*
WC-442
WC-12012*
WC-10001*
WC-589-101*
WC-10000*
WC-4212-02
WC-890-102*
WC-2471
WC-2977-02
WC-43089
WC-43141*
WC-43140*
WC-29086
WC-2402P
WC-29089-101
WC-39982
WC-39805
