Step 3 Connect the DB-25 end of the adapter to the modem.
Wall-Mounting
The Cisco 1721 router can be wall-mounted using two number six, 3/4-inch
screws and the molded mounting brackets on the bottom of the hub, as shown in
Figure 2-7 . You must provide the screws. We recommend using pan-head or
round-head screws.

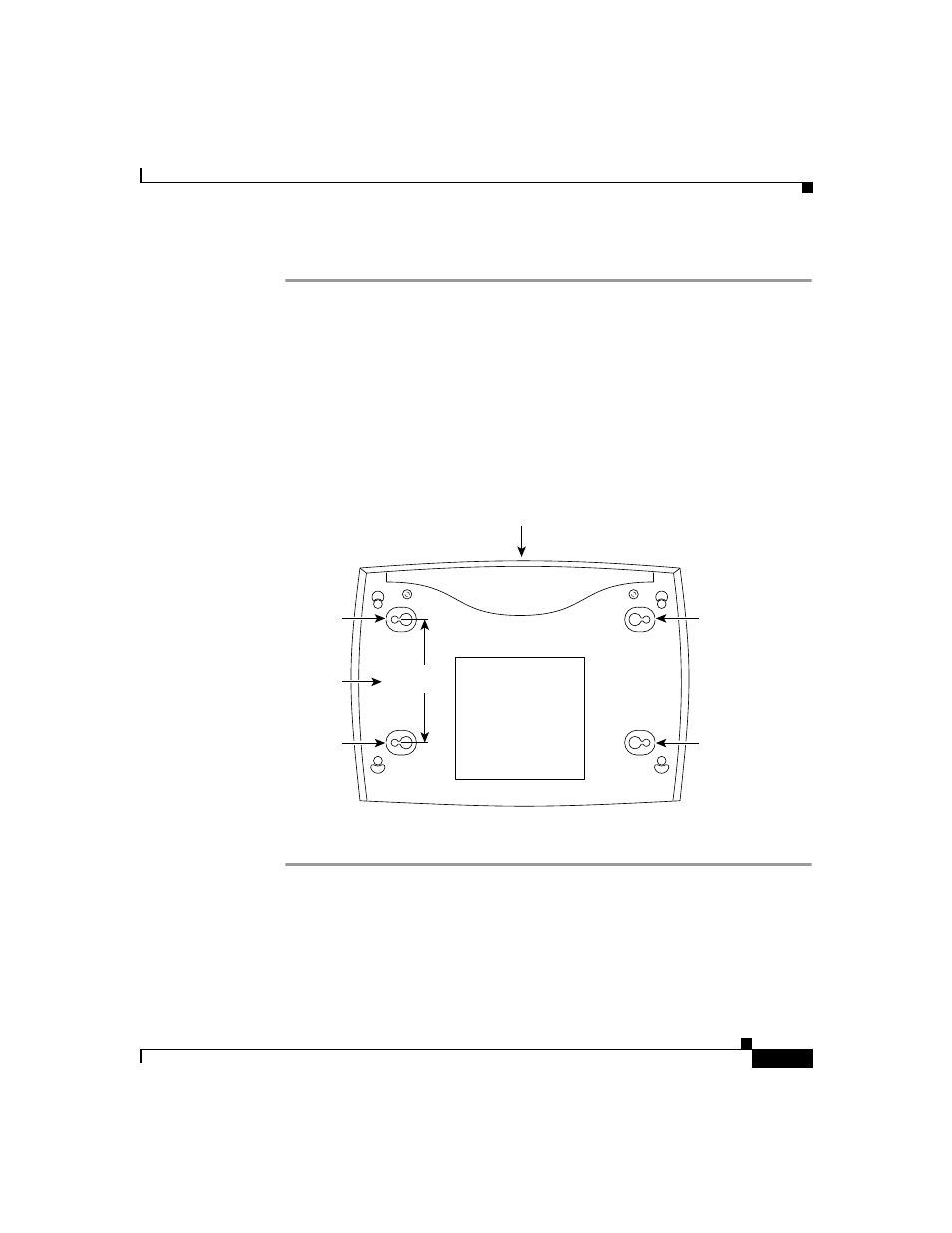

Figure 2-7 Wall-Mount Brackets—Bottom of Router
To mount the router on a wall or other surface:
Step 1 Install the two screws 3.75 inches (9.52 centimeters) horizontally apart on a wall
or other vertical surface.
The screws should protrude 0.25 inch (0.64 centimeter) from the surface of the
wall.
Front panel of router
12016
3.75"
(9.52 cm)
Mounting
bracket
Mounting
bracket
Mounting
bracket
Bottom
of router
Mounting
bracket
