14
0 15
45
OPERATION

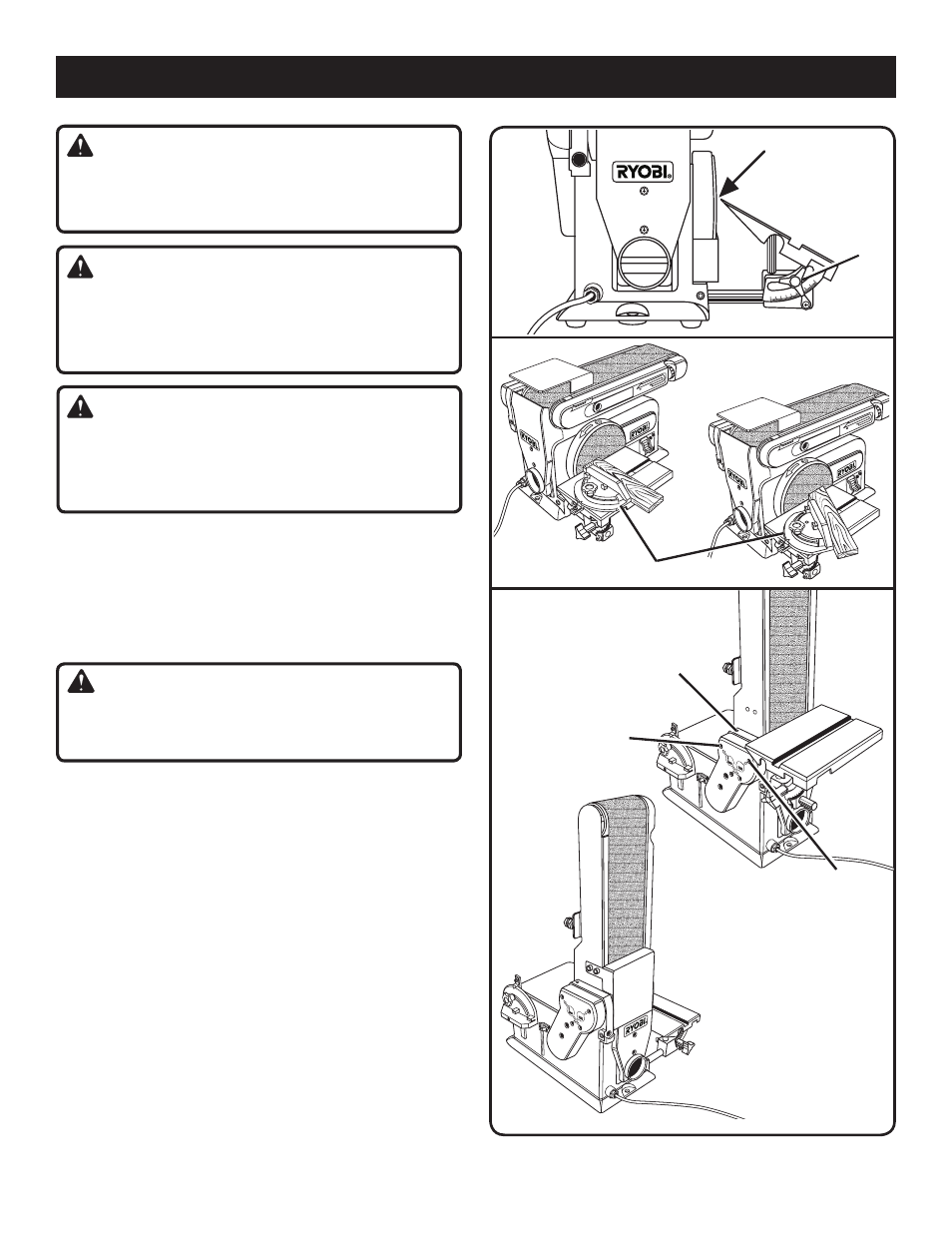

Fig. 13
tABle
loCK
KnoB
WARNING:
Do not allow familiarity with tools to make you care-
less. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING:
Always wear safety goggles or safety glasses with side
shields when operating power tools. Failure to do so
could result in objects being thrown into your eyes
resulting in possible serious injury.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this tool. The use
of attachments or accessories not recommended can
result in serious personal injury.
APPLICATIONS
You may use this tool for the purpose listed below:

Sanding and finishing plastic, wood, and wood composi-
tion materials
 Bevel sanding
 Horizontal and vertical sanding
 Sanding curved pieces
WARNING:
Applying the workpiece to the right side of the sanding
disc could cause the workpiece to kickback. Failure to
heed this warning could result in serious personal injury.
BEVEL SANdING
See Figure 13.
The worktable can be tilted from 0° to 45° for bevel sanding.
To tilt the worktable:

Loosen the table lock knob by turning it counterclockwise.
 Set worktable to desired angle. Position the worktable
no farther than 1/16 in. from the sanding surface.
 Tighten the table lock knob by turning it clockwise.
SANdING SMALL ENd SURFACES USING THE
MITER GAUGE
See Figure 14.
A miter gauge is included with the tool for increased
accuracy. Use of a miter gauge is recommended for sanding
small end surfaces on the sanding disc.
NOTE: Always move the workpiece across the sanding disc
from the left side toward the center.
Fig. 14
4 x36
4 x3
6
Fig. 15
VertiCAl
PoSition
Hole
Miter GAuGe
HorizontAl
PoSition
Hole
1/16 in. or
leSS
VertiCAl
Set SCreW
