OPERATION

FULL-ROOM COVERAGE: The unit will project a line out each
end of the laser head at an approximate angle of 130˚ each
way for a total of 260˚. To cover the remainder of the work
area with a level line, turn the laser head as far as 180˚.
SELF-LEVELING MODE: If horizontal lines are desired, use
the self-leveling mode to allow the unit to automatically level.
The LED indicator located next to the thumbwheel will light
if the unit is out of level. Reposition the laser head to within

± 5˚ of the horizontal plane to allow the self-leveling feature
of the level to properly function.
ANGLE-FINDER MODE: The dial indicator on top of the
laser head is an angle finder. It allows any degree angle to
be projected by the unit. To use the angle-finder:
��n Turn the laser head dial to the left to lock out the self-

leveling feature.

��n Move the laser head downward, away from the wall.
��n Wait until the arrow on the dial is pointing downward at

0˚.

��n Move the laser head to the desired angle. The scale is

graduated in 5˚ increments.

NOTE: Unit will not self-level when face of angle indicator
dial is parallel to direction of gravity.

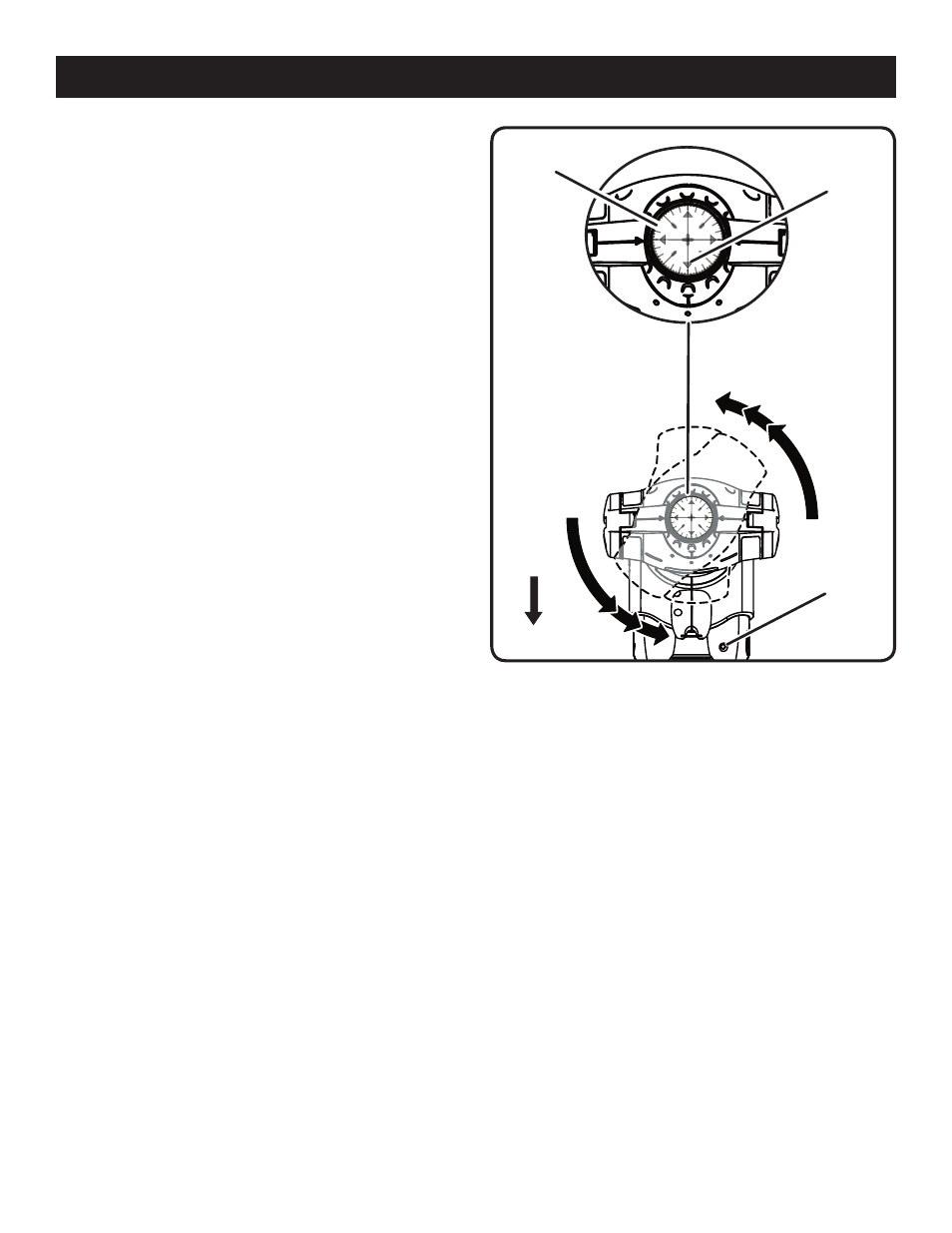

Fig. 11

DIAL INDICATOR

ANGLE FINDER

ROTATE DIAL

LEFT FOR

ANGLE-FINDER

MODE

DOWN ARROW

INDICATES 0°

ROTATE LASER HEAD

FOR FULL-ROOM

COVERAGE

ROTATE DIAL

RIGHT FOR

SELF-LEVELING

MODE

OUT OF LEVEL

LED INDICATOR

GRAVITY
