16 Customer Care Center 1-800-732-2677
Install the Boundary Wire
• Underground cables can carry high voltage. Have all underground cables marked before you dig to bury your
wire. In most areas, this is a free service. Avoid these cables when you dig.
• Before you begin installing the Boundary Wire, turn the Fence Transmitter OFF and unplug the adapter from
the Surge Protector.
To Bury the Boundary Wire
Burying the Boundary Wire is recommended to protect it and prevent disabling the system.
1. Cut a trench 1-3 inches deep along your planned boundary.
2. Place the Boundary Wire into the trench maintaining some slack to allow it to expand and contract with
temperature variations.
3. Use a blunt tool such as a wooden paint stick to push the Boundary Wire into the trench. Be careful not to
damage the Boundary Wire insulation.
To Attach the Boundary Wire to an Existing Fence
The Boundary Wire of the PetSafe ® In-Ground Fence ™ can be attached to a chain link fence, split rail fence, or
a wooden privacy fence. The Boundary Wire can be attached as high as needed. However, make sure the Field
Width is set at a high enough range for the pet to receive the signal. If using a Double Loop with an existing
fence at least five feet tall, run the Boundary Wire on top of the fence and return it on the bottom of the fence
to get the five foot separation needed.

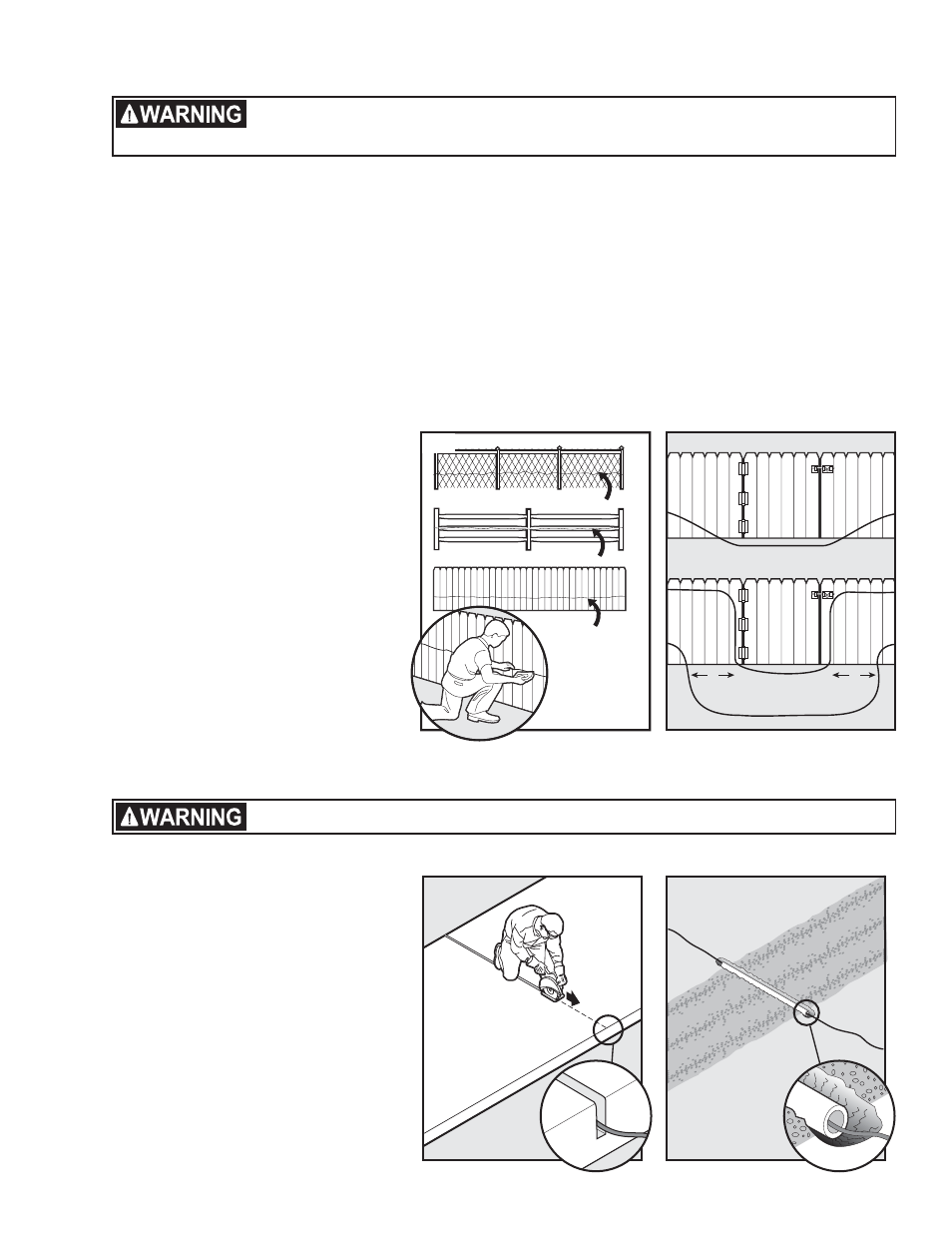

• Chain Link Fence (9A): Weave
Boundary Wire through the links or use
plastic quick ties.
• Wooden Split Rail or Privacy Fence
(9A): Use staples to attach Boundary
Wire. Avoid puncturing the insulation of
the Boundary Wire.
• Double Loop with an Existing
Fence: Run the Boundary Wire on
top of the fence and return it on the
bottom of the fence to get the five foot
separation needed.
• Gate (Single Loop) (9B) : Bury the
Boundary Wire in the ground across the
gate opening. Note: The signal is still
active across the gate. Your pet cannot
pass through an open gate.
STAPLE WIRE TO FENCE
WEAVE WIRE INTO FENCE
STAPLE WIRE
TO FENCE
9A
5' 5'
SINGLE LOOP
DOUBLE LOOP
9B
• Gate (Double Loop) (9B): Bury both Boundary Wires across the gate opening while keeping them five feet
apart.
Follow all safety instructions for your power tools. Be sure to always wear your safety goggles.
To Cross Hard Surfaces (driveways, sidewalks, etc.)
• Concrete Driveway or Sidewalk (9C):
Place the Boundary Wire in a convenient
expansion joint or create a groove using
a circular saw and masonry blade. Place
the Boundary Wire in the groove and
cover with an appropriate waterproofing
compound. For best results, brush away
dirt or other debris before patching.
• Gravel or Dirt Driveway (9D): Place
the Boundary Wire in a PVC pipe or
water hose to protect the Boundary
Wire before burying.
9C 9D
Step
9
