Petsafe Petporte Smart Flap® Microchip Cat Flap - Manual (Page 11)

11

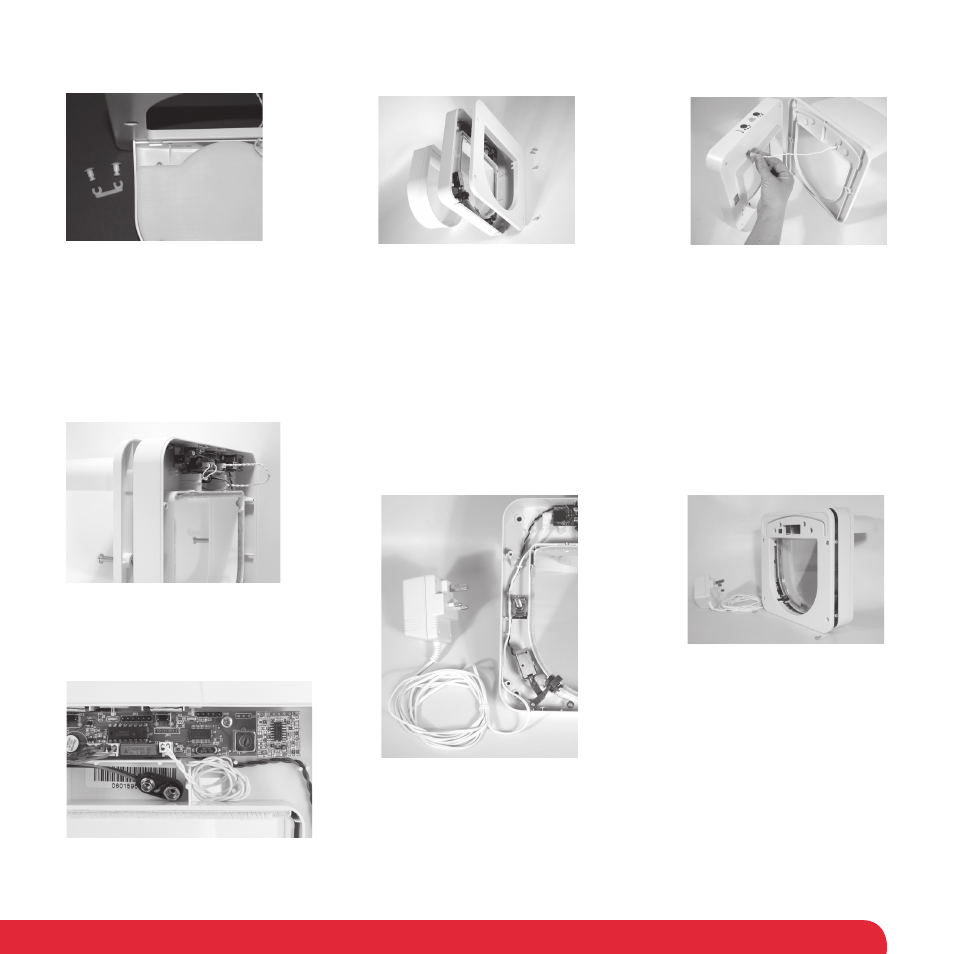

Fig. 3 Fig. 4 Fig. 5
Fig. 6a
Fig. 6b
Fig. 7 Fig. 8
Attach the “horseshoe” clips to
the four “mushrooms” pins on the
underside of the porch. Remove the extension tunnel
from the interior section. Loosen
the four self-tapping fi xing
screws from the interior section
and remove the large cover
plate. Pass the porch cable from the
porch and exterior section through
the rectangular opening in the
interior section.
Temporarily attach the porch and
exterior section to the interior
section with the two M6 screws.
Attach the porch cable to the
electronics board as shown. Any excess
cable must be routed to the right of the
battery compartment.
Attach the low voltage power
supply connector to the
electronics board and pass
the power cable through the
clips and out the opening at the
bottom of the interior section.
Replace the large cover plate
to the interior section and
temporarily secure with the four
self-tapping fi xing screws.
