Key Defi nitions
Remote Transmitter: Transmits the radio signal to the
Receiver Collar.
Arrow: Indicates the level of stimulation that will be
delivered to your pet.
Intensity Level Dial: Provides a choice of 10 different
levels of stimulation to enable you to match the level to
your pet’s temperament.
Transmitter Indicator Light: Indicates when any
button on the Remote Transmitter is pressed. This light
also serves as a low battery indicator.
Tone Only Button: Sends an audible tone to your pet.
There is no stimulation associated with this button.
Stimulation Only Button: Delivers stimulation to your
pet through the Contact Points. When this button is held
down continuously for 8 seconds, the Remote Transmitter
will “time-out”, and you must release and press the button
again before any additional stimulation can be delivered to
your pet.

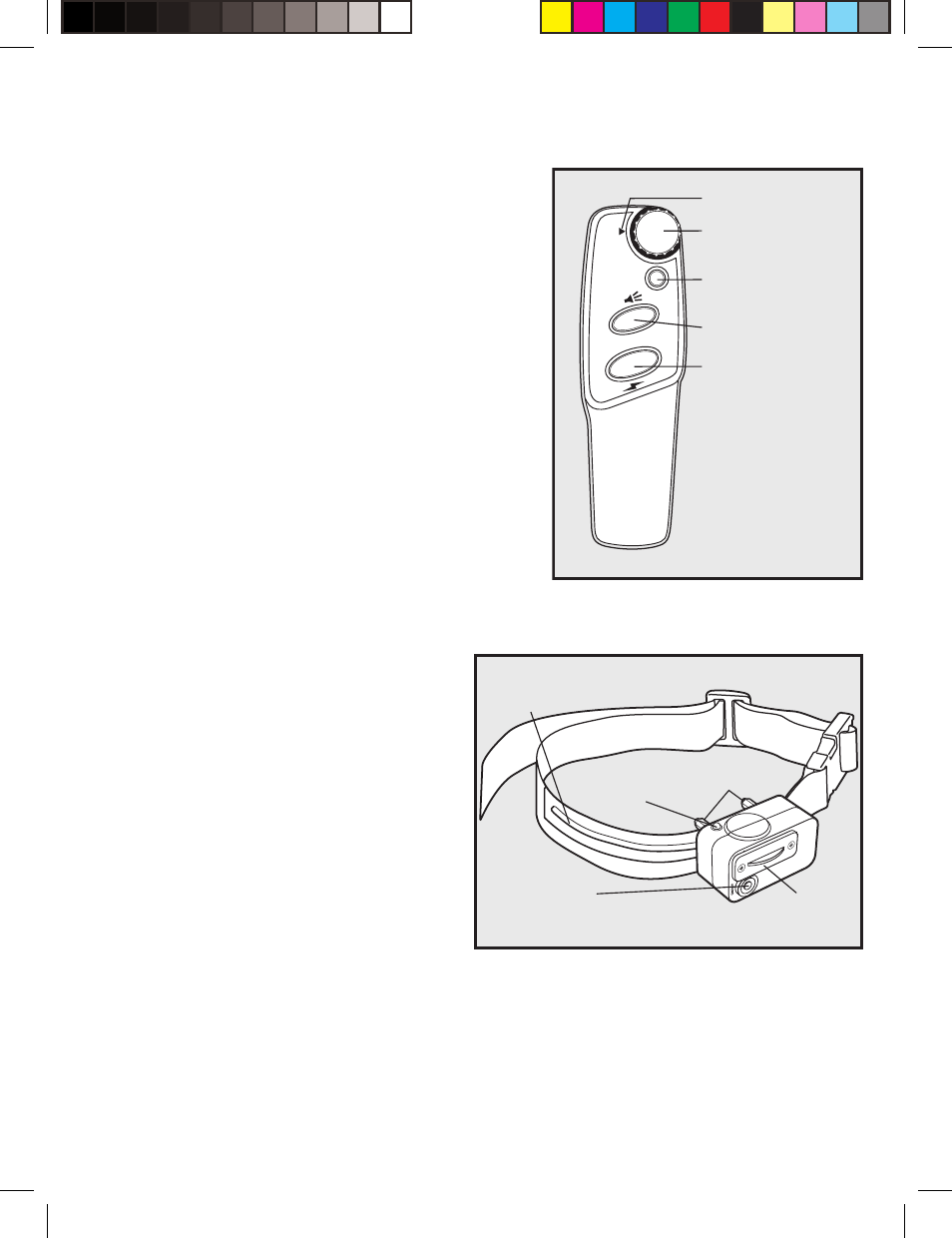

Remote Transmitter
Intensity
Level Dial
Arrow
Transmitter
Indicator Light
Tone Only Button
Stimulation
Only Button
1
2
3 4
5
6
7
8 9
0 1
Receiver Collar: Receives the radio signal
from the Remote Transmitter.
Contact Points: Deliver stimulation to your
pet.
Receiver Indicator Light: Indicates when the
Receiver Collar has been turned on or off. This
light also serves as a low battery indicator.
Receiver Collar
Receiver
Indicator
Light
Battery
Lid ON/OFF
Button
Contact
Points
Antenna
