PDR Mounts iwbB250 User Manual
Page 7

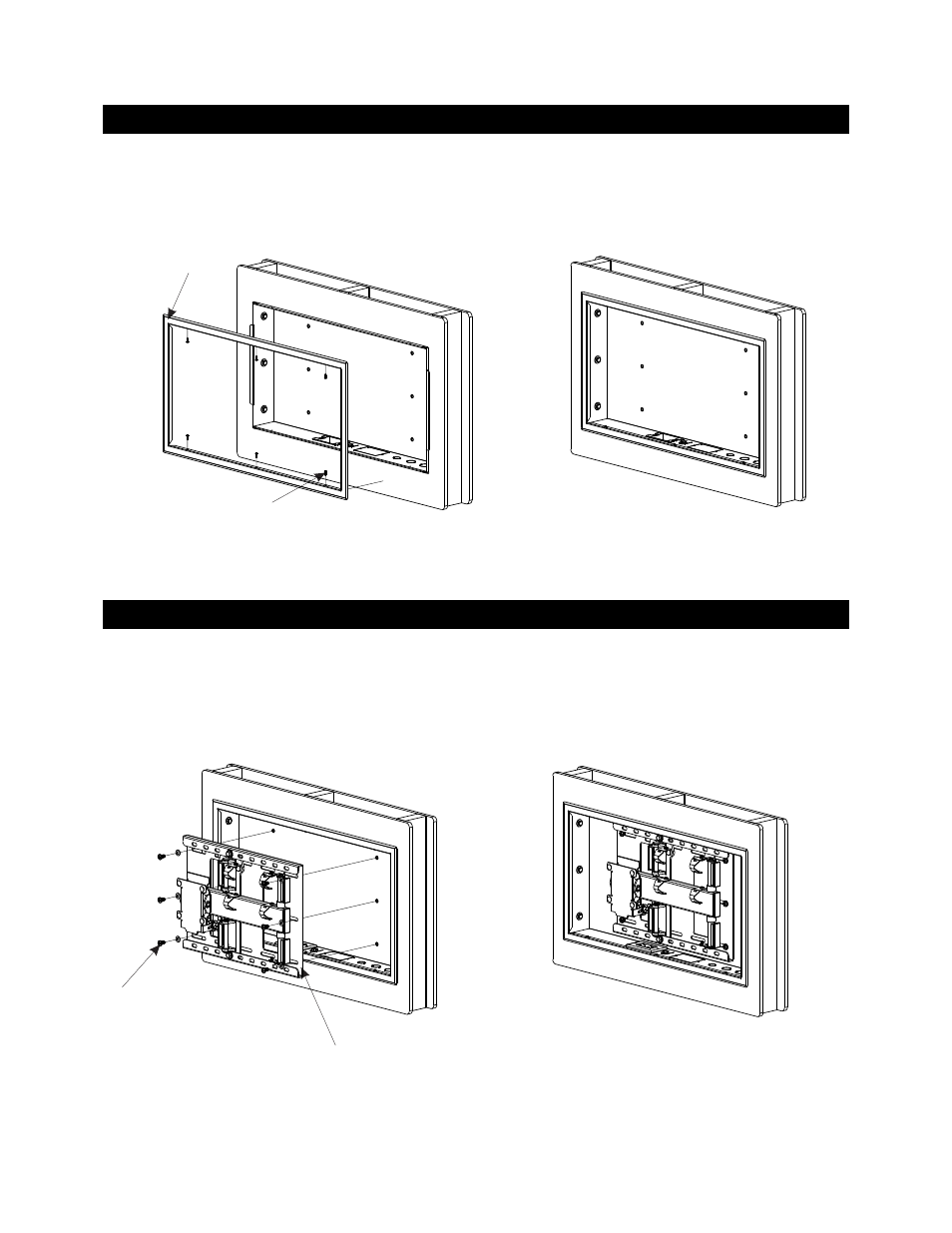

INSTALLING TRIM PLATE
INSTALLING ARTICULATING ARM INTO THE IWB-250 IN WALL BOX
7
1: Place the trim plate onto the in wall box and attach with the sheet metal screws supplied (item 7)
Trim plate
Item 2
Sheet metal screws
Item 7
Place the AWM-175 or AWM-250 into the in wall box using the screws and washers supplied (item 5 and 6)
AWM-175 or AWM-250
Mounting hardware
items 5&6
