INSTALLING THE IN WALL BOX IWB-250
6

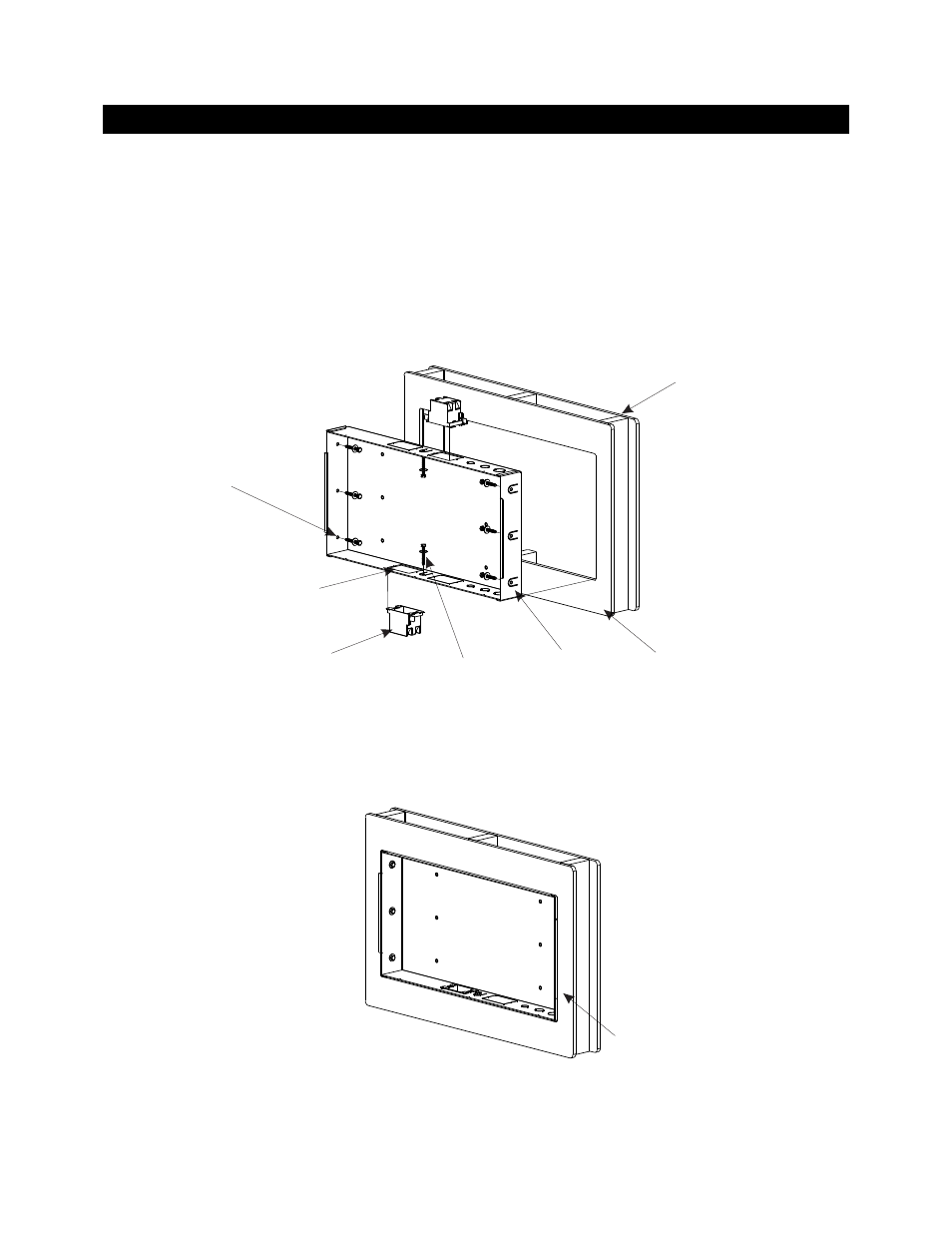

1: The proper orientation of the IWB-250 is with the side holes with slots facing to the right side stud.
2: There are 4 knock outs in the in wall box ( 2 top and bottom) for the use of the carlon elec. box (item 8).
3: Knock outs top and bottom are also provided for riged pipe.
2: Determine the location of the power and video cables and remove the desired knock outs (tap out with a hammer and twist to remove).
4: Pull the wires thru the knock outs and place the IWB-250 into the wall.
5: Push the box into the drywall cut-out
and lag bolt locations.
6: Using the lag bolts and washers supplied (items 3 and 4), fasten the left side first (the side without the slots around the mounting hole).
7: Push the right side flush to the drywall and fasten the lag bolts. The slots allow the metal tabs to bend and conform to the stud spacing.
8: Pull the cables thru the carlon boxes and place the box into the knock out hole. Fasten with the carlon screws attached to the box.
9: Box covers and plugs for the electrical and video (not supplied ) can be purchased from your local hardware store.
against the flange, Drill a 3/16” pilot hole on all
Tab flush against drywall
Right side of box
Side hole with slots
Knock outs
Carlon wiring box
Item 8
Drywall
Wood studs
Lag bolt
item 3
Mark and pre-drill 3/16” hole
in stud
