1. FASTEN MOUNTING PLATE TO WALL

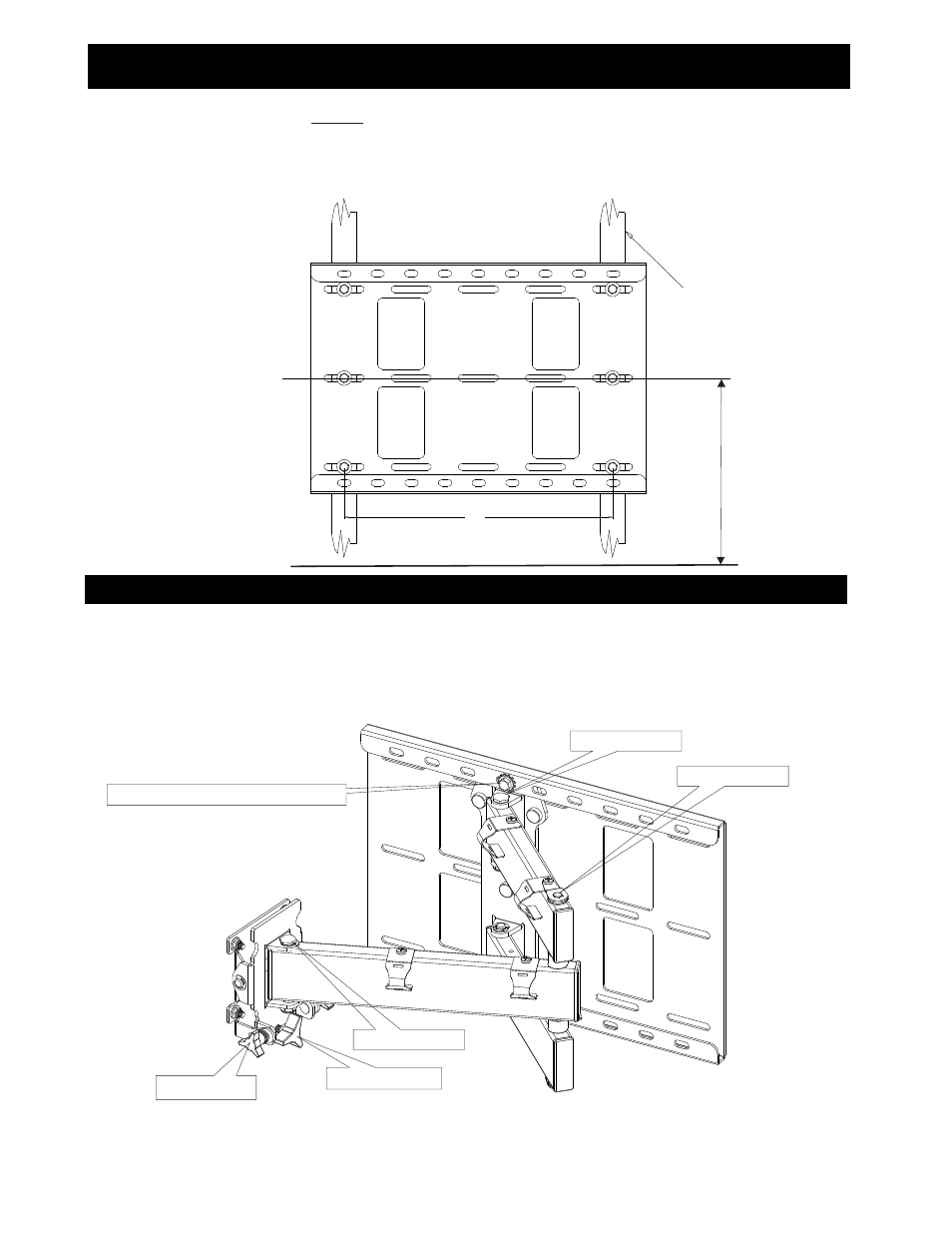

Fig 2

Fig 3

2. SECURE ARTICULATING ARM TO THE MOUNTING PLATE

Determine the exact mounting location for the wall mounting plate (1) prior to the installation, considering the swing of the articulating
arm. The plate must be secured to the

CENTER of the wall studs capable of at least (4) times the weight of the display and

The wall plate should be mounted at the same horizontal center line as the desired display center line (viewing horizontal center line).
Remove the screws and washers (6,7,8) holding the wall plate and arm assembly. Position the mounting plate (1) to the desired
position. Mark and

Pre drill a 3/16” (5mm) hole for the lag bolts. Using the six lag bolts (22) and washers supplied (23), level and

secure the mounting plate to the center of the wall studs.

Fig. 2

AWM175

After attaching the mounting plate to the wall, attach the articulating arm using the hardware (# 6, # 7 and # 8 ). Using the different
slots will aid in centering the mount to the desired position left or right of center. The arm must be level left and right to prevent the
display from creeping from the wall. Extend the arm and using a level, swing arm to the left or right and adjust top or bottom bolt (7) to
a level position. The arm should be level when extended left, right and straight out. Once level, tighten the top and bottom bolt (7)
securely. You can adjust the viewing angle by loosening the Tilt lock lever (35) and turning the tilt adjust lever (31) to suite the best
viewing angle.

SEE FIG 3

FLOOR LINE

VIEWING

HORIZONTAL

CENTER LINE

Tilt lock lever

WOOD STUDS
(std construction 2 x 4
studs and 1/2” wallboard)

ADJUST BOLT (7) TO LEVEL THE ARM

Tilt adjust lever

Model # AWM175

16.00

Tension bolt
