40

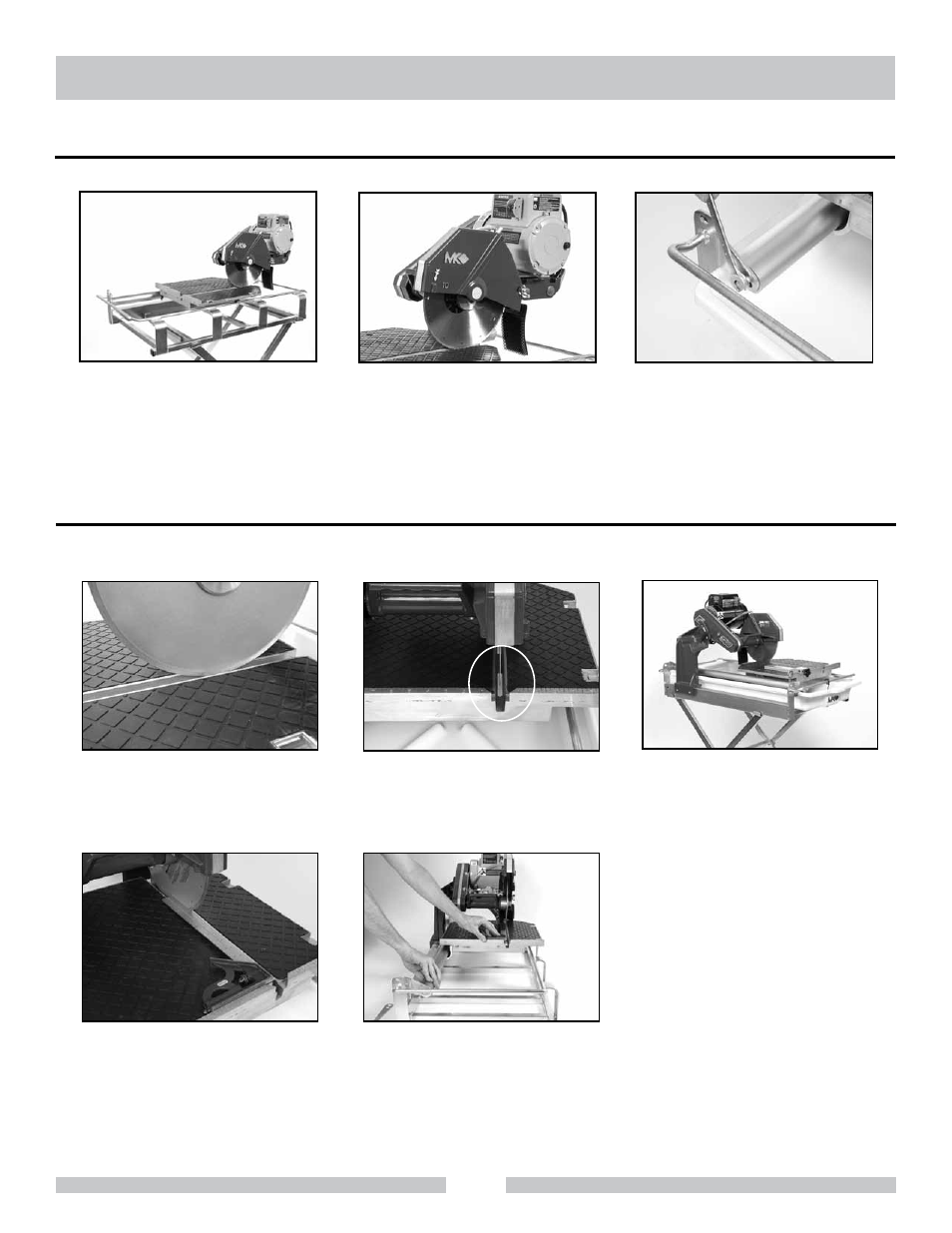

(A)
Remove Water Pan.
(B)
Inspect Diamond Blade
for damage.
(C)
Loosen front and rear
Guide Bar Retaining Bolts.
MK-101-24 TROUBLESHOOTING
Preparation for alignment
The Horizontal alignment will ensure that straight cuts (or Rip Cuts) are made.
(A)
Position Cutting Head
to normal Cut Depth.
(B)
Move Guide Bar until Blade is
centered in Cutting Groove. Tighten
rear guide bar retaining bolt.
(C)
Pull Movable Cutting Table
to front of Tile Saw.
(D)
Position Square flat on Movable
Cutting Table against Ruler/Stop.
Position front of Square
against Blade.
(E)
Move Guide Bar until Square
rests evenly across Blade.
Horizontal Rough alignment
