When installing the Retaining Nut, do not "cross-thread" and DO NOT over
tighten the nut.

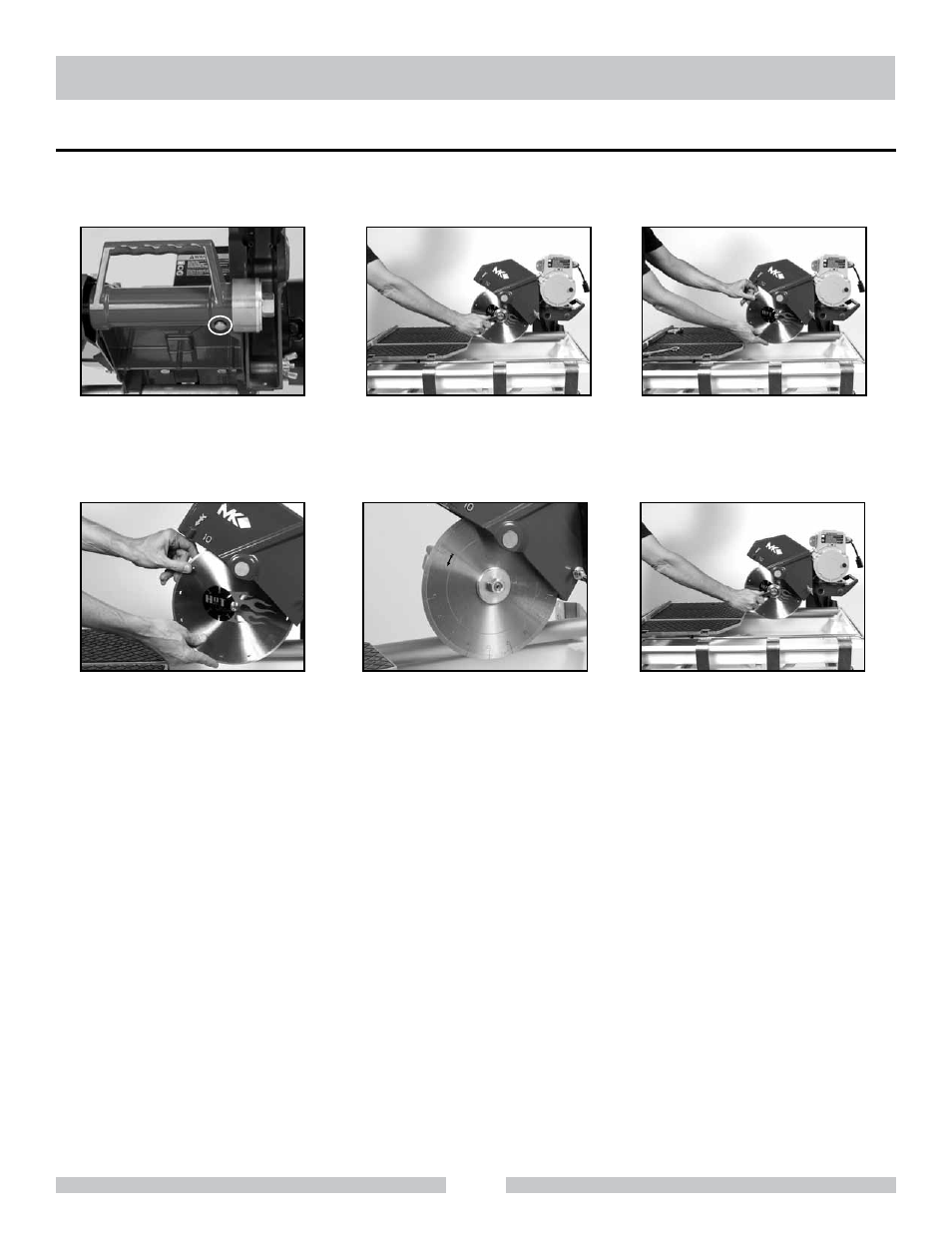

Diamond Blade Change-out
(A)
Locate the Shaft Lock push
button on the underside of the
Cutting Head
(B)
Remove Retaining Nut and Outer
Flange, depress and hold the Shaft Lock
hold button and loosen
NOTE:
(C)
Remove the Diamond Blade
(D)
Install the new Diamond Blade
onto Blade Shaft. Install Outer
Flange and Retaining Nut
(E)
Verify the Blade is seated on
the Blade Shaft and direction of
rotation is correct
(F)
Depress and hold the Shaft Lock but-
ton and tighten Retaining Nut
MK-101-24 MAINTENANCE
