7

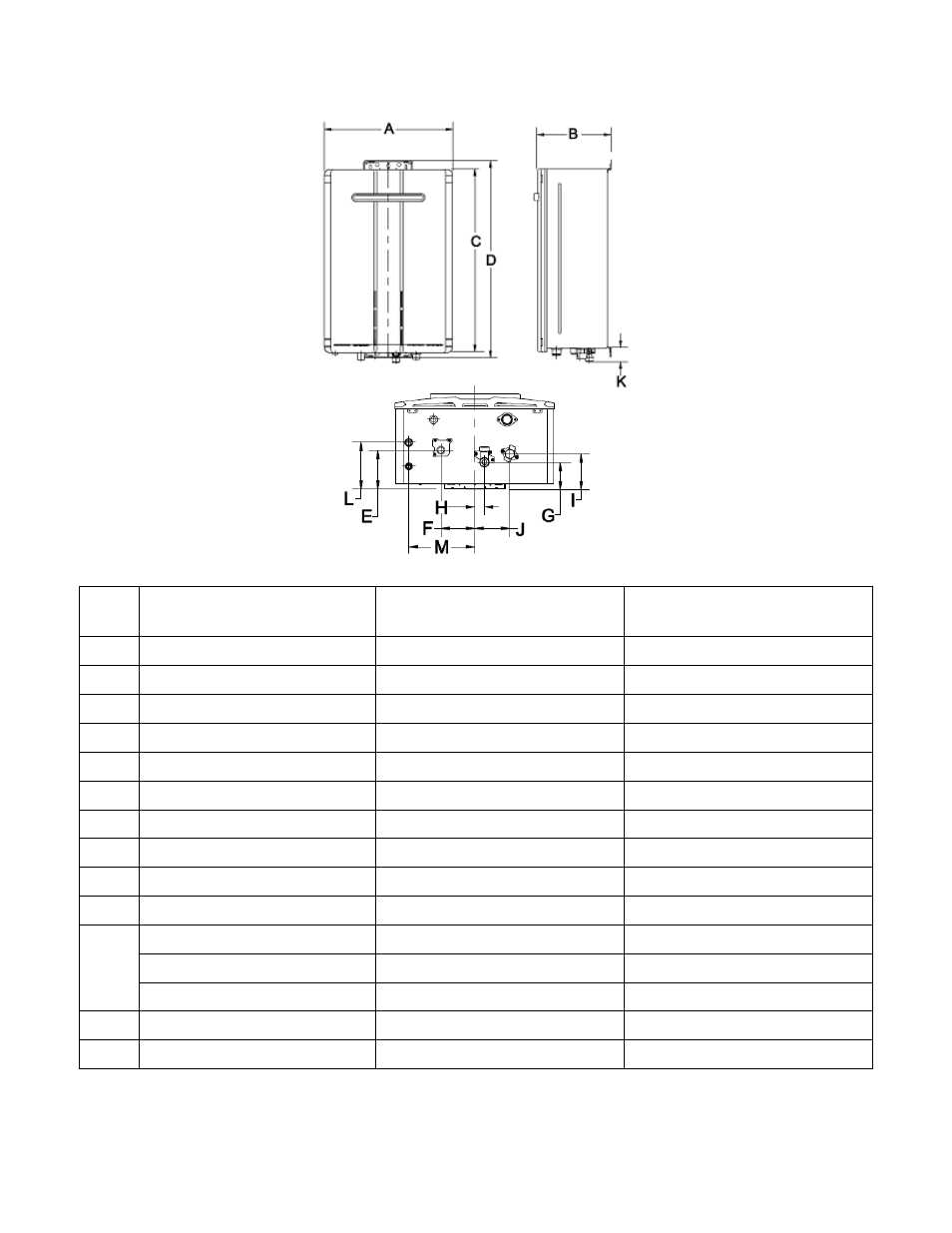

Dimensions
TGHE-160E-N(X), TGHE-199E-N(X)
Table 2. Water Heater Dimensions.
DIM DESCRIPTION
TGHE-160E-N(X)
In. (mm)
TGHE-199E-N(X)
in. (mm)
A Width 18 ½ (470) 18 ½ (470)
B Depth 10 5/8 (271.9) 10 5/8 (271.9)
C Height - Unit 26 3/8 (670) 26 3/8 (670)
D Height - with brackets 28 3/8 (721.6) 28 3/8 (721.6)
E Hot Water Outlet - from wall 4 ½ (115) 4 ½ (115)
F Hot Water Outlet - from center 3 7/8 (100) 3 7/8 (100)
G Cold Water Inlet - from wall 3 (75.0) 3 (75.0)
H Cold Water Inlet - from center ½ (12.8) 1 1/16 (27.7)
I Gas Connection - from wall 4 1/16 (104) 4 1/16 (104)
J Gas Connection - from center 4 1/16 (104) 4 1/16 (104)
K
From base to gas connection 1 5/8 (40.2) 1 5/8 (40.2)
From base to cold connection 2 (50.2) 2 (50.2)
From base to hot connection 1 5/8 (41.2) 1 5/8 (41.2)
L Condensate Drain – from wall 5 3/8 (137.6) 5 3/8 (137.6)
M Condensate Drain – from center 7 11/16 (195) 7 11/16 (195)
