Internet Version for Reference Only

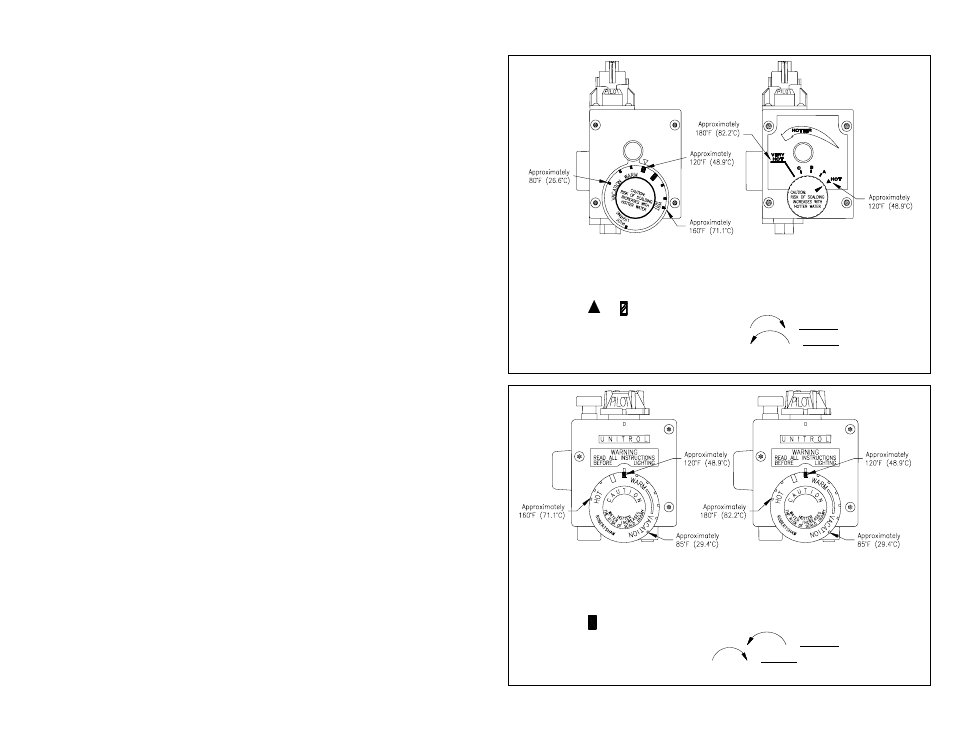

THERMOSTAT ADJUSTMENT








160°F Control 180°F Control

Figure 17

The thermostat dial is set to its lowest temperature setting when shipped from the factory.
Remember that lower temperature settings are more energy efficient. Adjust the
temperature by turning the thermostat dial. It is suggested that the starting point setting not be
greater than the ”

“ or “ “mark on the thermostat dial (approximately 120°F [48.9°C]) as

indicated below. Rotate the thermostat dial clockwise

to decrease the temperature

setting. Rotate the thermostat dial counter-clockwise

to increase the temperature

setting. Adjust the dial until the minimum acceptable temperature is achieved (See figure 17
above for approximate temperature settings).









160°F Control 180°F Control

Figure 18

The thermostat dial is set to its lowest temperature setting when shipped from the factory.
Remember that lower temperature settings are more energy efficient. Adjust the
temperature by turning the thermostat dial. It is suggested that the starting point setting not be

greater than the “

” mark on the thermostat dial (approximately 120°F [48.9°C]) as indicated

below. Rotate the thermostat dial counter-clockwise

to decrease the temperature

setting. Rotate the thermostat dial clockwise

to increase the temperature setting.

Adjust the dial until the minimum acceptable temperature is achieved (See figure 18 above for
approximate temperature settings).

32
