Installation (Venting) continued-

The co-axial vent-air intake tubes of this water heater can be installed in any
360

° configuration as long as the proper clearances for installation,

plumbing, operation and servicing are maintained. (See Figure 6).

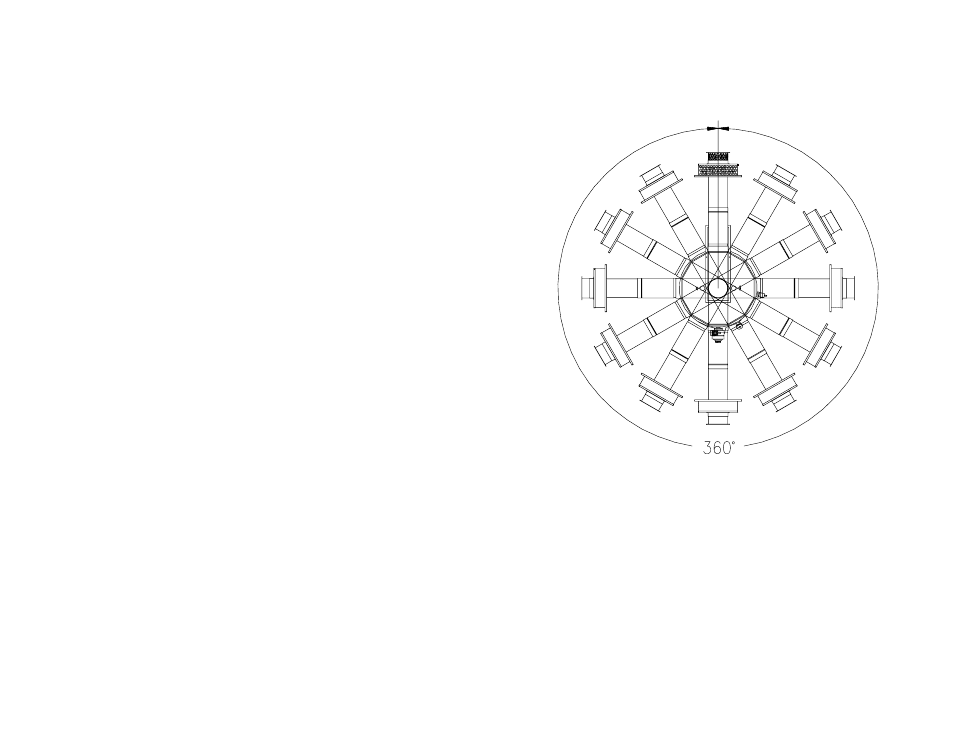

Figure 6.


Note:
Maintain proper clearances for installation, plumbing, operation
and service.


HORIZONTAL AND VERTICAL VENT-AIR INTAKE LENGTHS

Optional vent-air intake kits are available that can extend the horizontal
length and/or vertical height of the vent-air intake system. Table A lists the
various vertical and horizontal vent air-air intake system configurations.




14
