Internet Version for Reference Only

Installation (Vent-Air Intake System Installation) continued-


12. Mark the mounting screw hole locations for the backing plate. Rotate

the backing plate in order to gain access to the markings. With a 3/16
(4.75 mm) inch diameter drill bit (not supplied), drill holes for the
supplied wall anchors. Install the wall anchors and secure the backing
plate to the wall with four (4) #10 x 1 inch screws (supplied) (See Figure
16). Note: Certain construction of walls may require the use of a
different type of anchoring means than supplied.

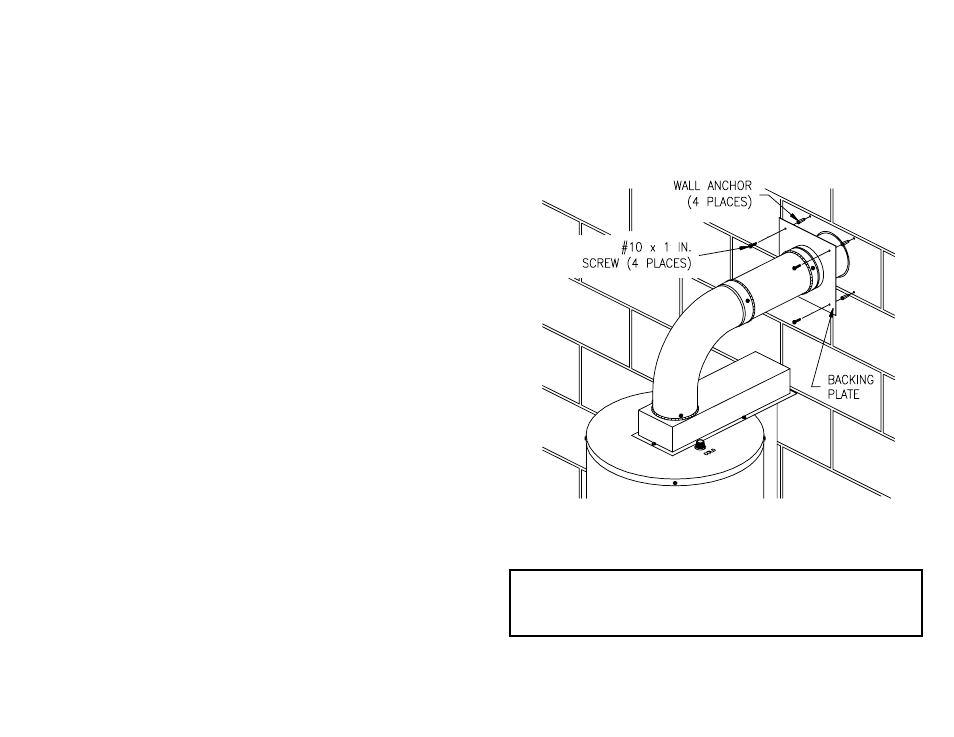

Figure 16.



IMPORTANT

When the installation is complete, visually inspect the air intake
system to insure that all joints are completely sealed.




24
