Sheet3(3)(2), Drawing view454, Drawing view458 – AVF Package L MC1000 Cart + MC-XLD Dual XL Mount User Manual
Page 4: Drawing view463, Drawing view476, Drawing view477, Drawing view492, Drawing view494, Drawing view501, Drawing view502

M6 x 40
(1)
M6 x 12
(1)
M6 Hex Key
M6 Hex Key

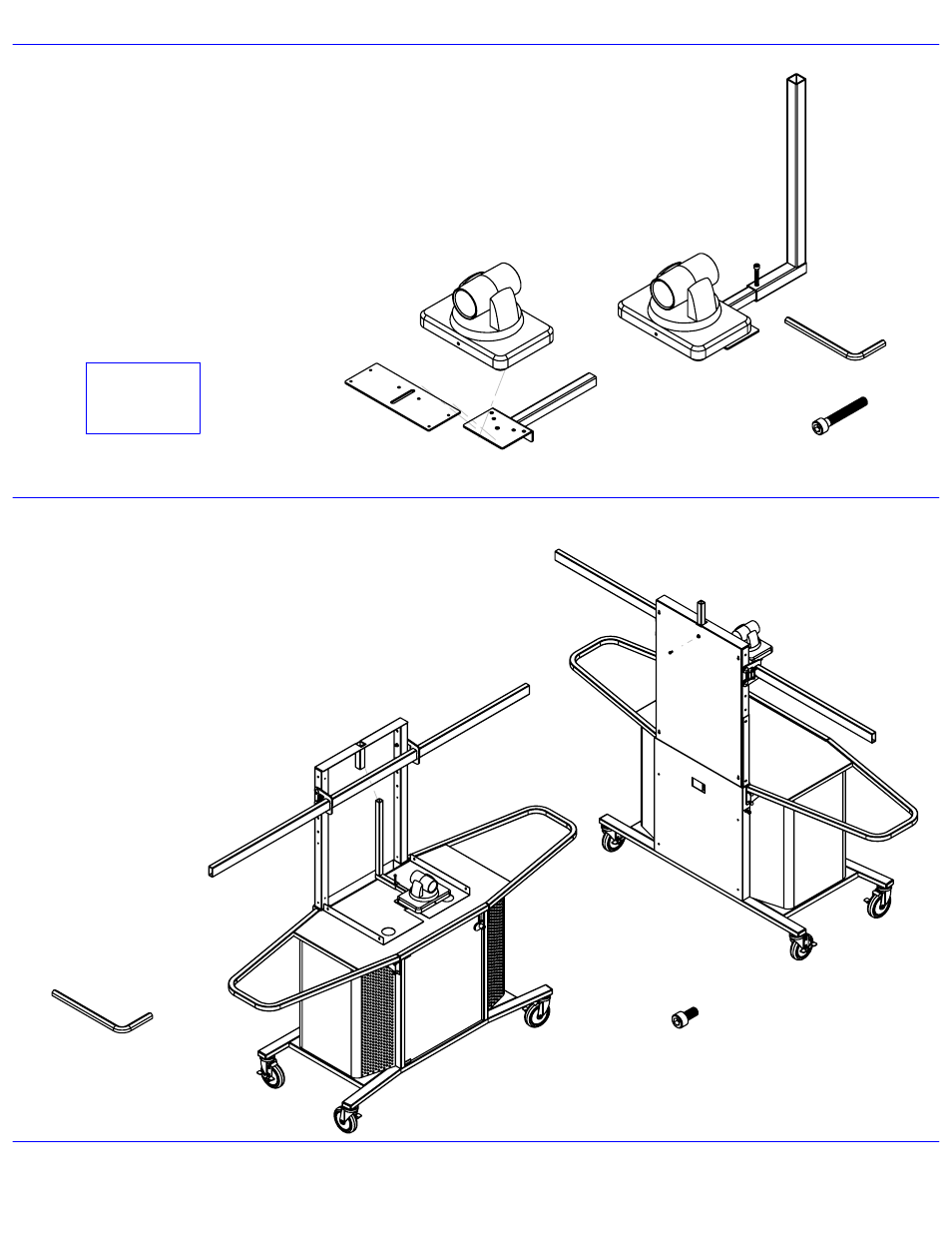

Step 4
1) Mount your video conferencing
camera onto the cam bracket using
contents of the camera hardware bag.
Install the cam plate first if you camera
requires it.
2) Slide the cam bracket into the cam
arm and secure in place with an M6 bolt.
Page 4
of 6
VIDEO FURNITURE INTERNATIONAL
190 Don Hillock Drive Aurora , Ontario L4G 0G9 www.video-furn.com
Toll Free: 1-877-834-3876 Fax: 1-905-751-1488 Local:905-751-1459
Positioning Camera Bracket
Step 5
1) Remove the front cover by removing
the M6 bolts on the side of the spine.
2) Slide the assembled cam arm into the
location at the top of the back cover and
secure in place with an M6 bolt.
3) Re-install front cover and connect all
cables including those that will be
attaching to the TV's.
Camera
Hardware
Bag
Assembling Cam Bracket
