Sheet2, Drawing view326, Drawing view402 – AVF Package I MC1000 Cart + MC-S Display Mount User Manual
Page 3: Drawing view429, Drawing view470, Drawing view487, Drawing view489, Drawing view490, Drawing view491, Drawing view492
M8 Hex Key
M8 x 12
(2)
9/16"
Wrench
or Socket
5-16 Carriage
Bolt (4)
Lock
Washer (4)
5/16 Nut (4)
M6 Hex Key
VIDEO FURNITURE INTERNATIONAL
190 Don Hillock Drive Aurora , Ontario L4G 0G9 www.video-furn.com
Toll Free: 1-877-834-3876 Fax: 1-905-751-1488 Local:905-751-1459
Page 3
of 7

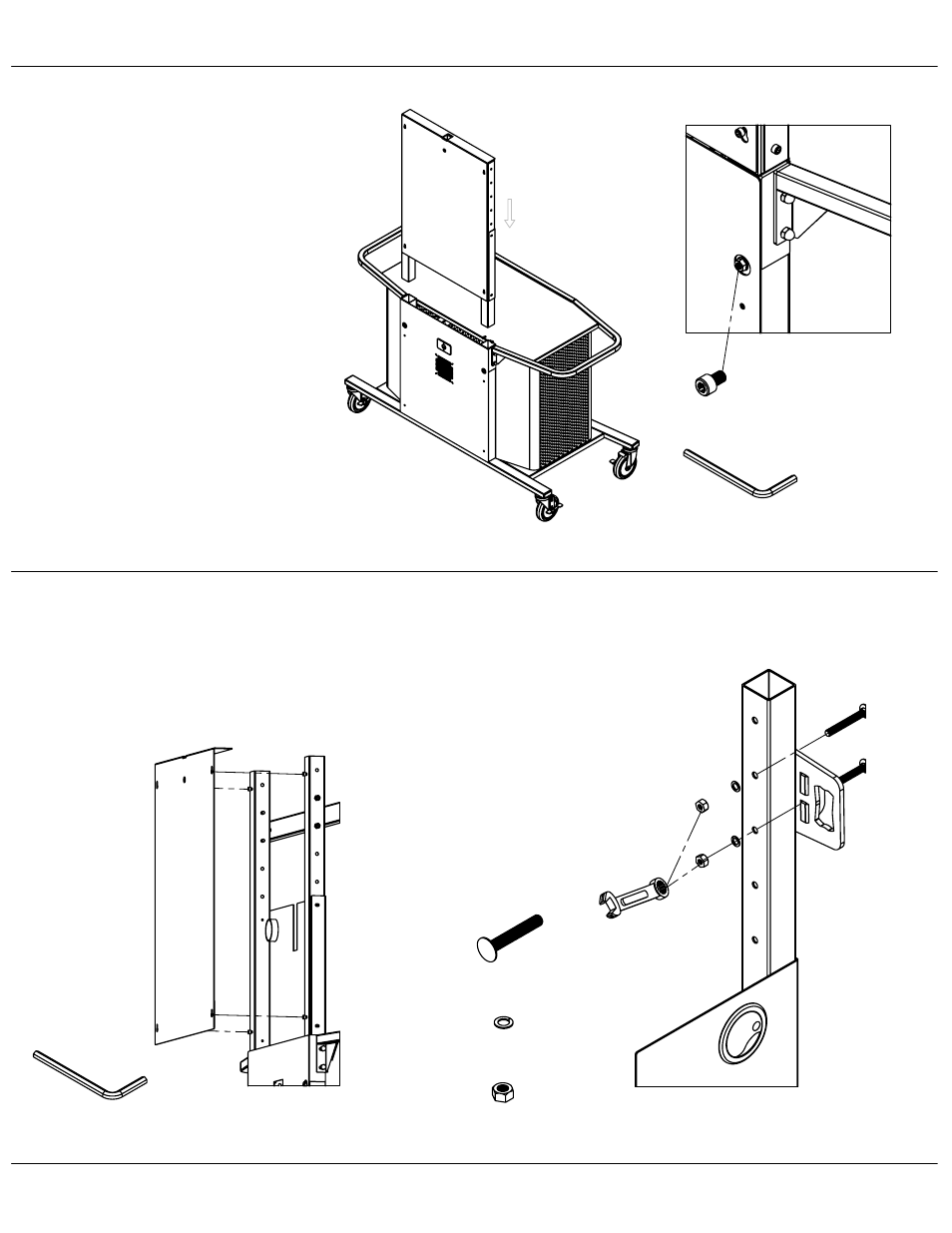

Installing Tube Brackets
Step 2
Slide the spine assembly into the
locations on the top of the cart with
the large cover facing the back.
Secure in place with an M8 bolt on
each side.
Step 3
1) Remove the back cover by first
loosening the M6 bolts, then sliding
upwards and out.
Installing Spine Assembly
2)
Attach tube brackets at a
desired height using the provided
hardware and 9/16" wrench or socket.
(If your TV's mounting locations are
600mm wide install the bar brackets on
the inside of the vertical tube.)
