Installation
Mounting Bolt Installation
20
Mounting Bolt Installation
The HP-60 requires the use of 3/4-10 x 8” bolts. Embed the bolts in 3500 psi reinforced
concrete with a minimum of 12” thickness. The threaded end of the bolt should extend 2
inches from the surface of the floor. As an option, a welded bolt locating fixture is available
(rebar frame). This rigid welded assembly is made of reinforcing rod (rebar) and is designed
to be encased in concrete.

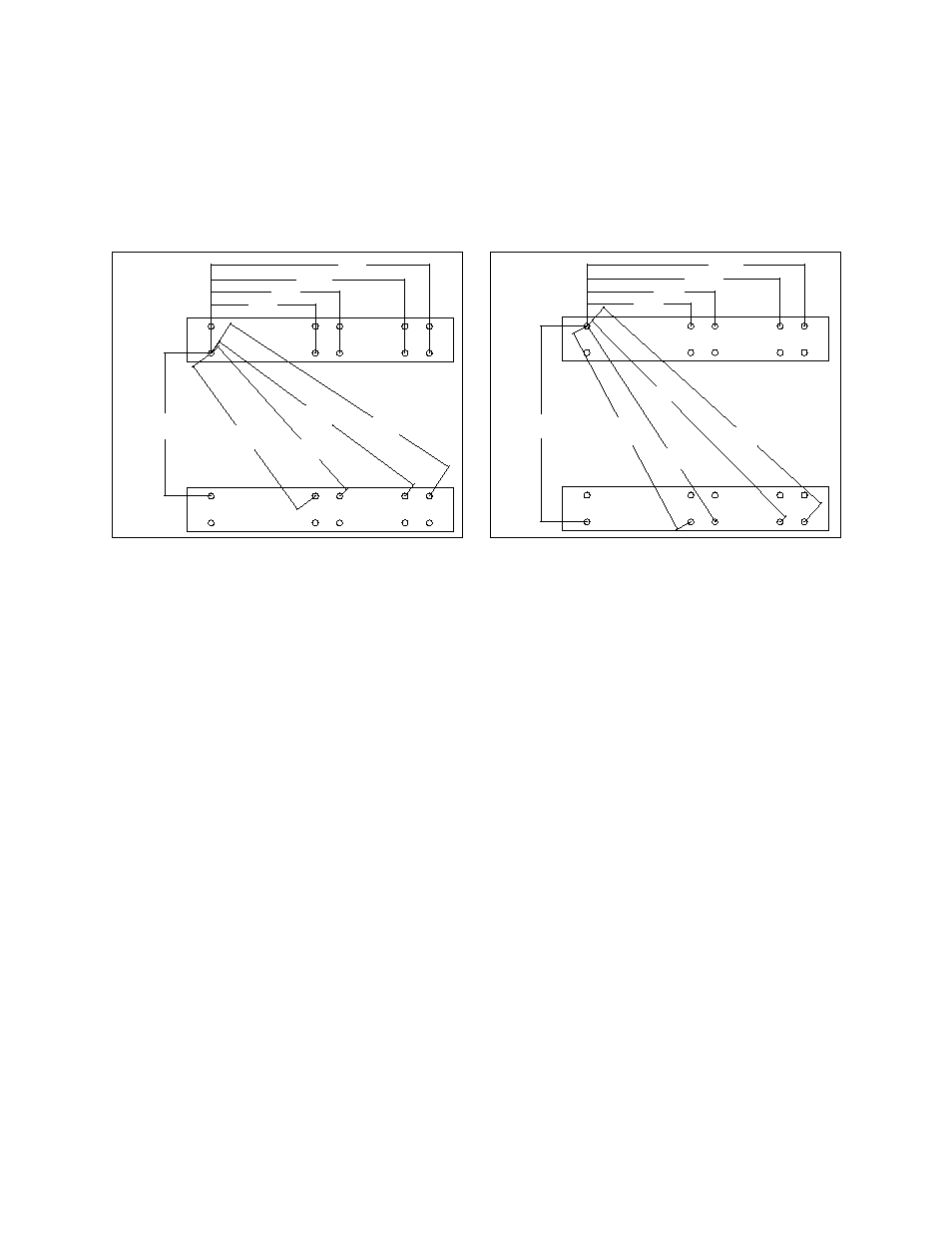

FRONT OF
MACHINE
HP-60
16.93
[430.00]
20.87
[530.00]
31.50
[800.00]
35.43
[900.00]
31.89
[810]
36.10
[917]
38.11
[968]
47.67
[1210.83]
44.82
[1138.46]
16.93
[430.00]
20.87
[530.00]
31.50
[800.00]
35.43
[900.00]
23.23
[590]
28.74
[730] 31.22
[793]
42.37
[1076.15]
39.14
[994.03]
FRONT OF
MACHINE
HP-60
