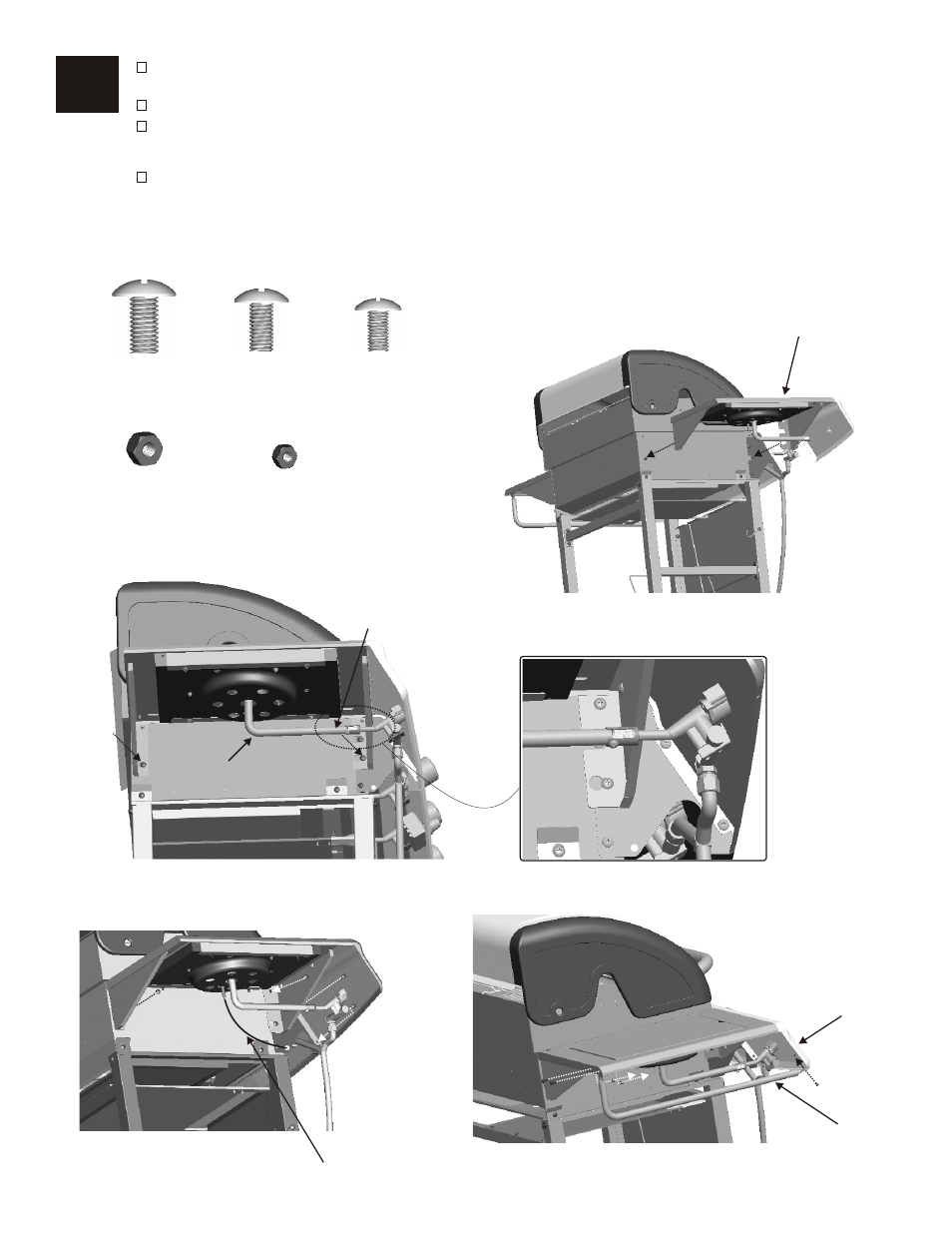

Remove two #8-32x5/16” screws from sideburner valve bracket,set aside until step 12.
Repeat step 8(A)on left side shelf. Place left side shelf to the side of firebox(A).
11
Qty: 2
1/4-20x1/2"
Machine Screw
B
Tighten the pre-installed screws to the left side shelf(B). Make sure valve is inside sideburner tube.
Attach left side shelf to the firebox with 1/4-20x1/2" screws on the upper holes. Attach left fasica to control panel
with #10-24x1/2" screws . Attach sideburner ignitor wire to the electronic ignition module through the hole of the
left plate of control panel(C).
Attach left towel bar to the rear of left side shelf with #10-24x1/2" screws and #10-24 hex nuts.
Attach left towel bar to the front of left fascia with #8-32x5/16” screw and #8-32 hex nut(D).
Qty: 7
#10-24x1/2"
Machine Screw
Qty: 5
#10-24 Hex Nut
Qty: 1
#8-32 Hex Nut
Qty: 1
#8-32x5/16”
Machine Screw
C
Sideburner Ignitor Wire
D
Left Fascia
Left Towel Bar
22
Sideburner Tube
Sideburner Valve
A
Left Side Shelf
