ASSEMBLY

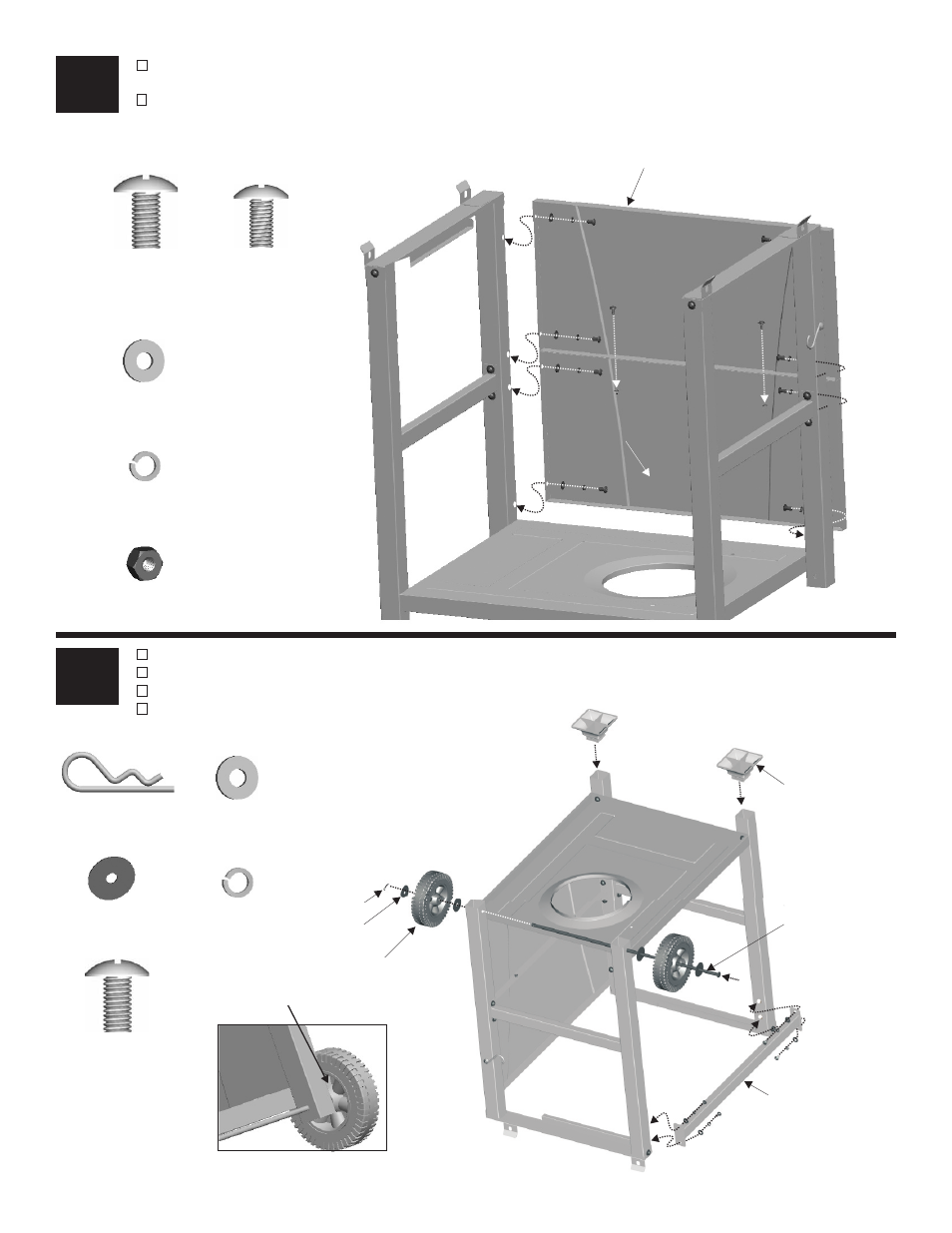

Attach upper and lower front panel to cart with 1/4-20x1/2" screws, 7mm Flat Washer and
7mm Lock Washer on each side.
Turn assembly upside down.
Insert axle rod into wheel, axle washer, legs and other wheel. Attach with a hitch pin.
Qty. 1
1” Hitch Pin
Qty: 4
Axle Washer
3
4
Qty:
1/4-20x1/2"
Machine Screw
8
Qty: 8
7mm Flat Washer
Qty: 8
Lock 7mm Washer
Qty: 4
1/4-20x1/2"
Machine Screw
Qty: 4
7mm Flat Washer
Qty: 4
Lock 7mm Washer
Hitch Pin
Axle Washer
Wheel
Back brace
Leg Extenders
"Cone" side of wheel against leg
Qty: 2
#10-24 Hex Nut
Qty:
#10-24x1/2"
Machine Screw
2
Attach upper front panel to lower front panel with #10-24x1/2" screws and #10-24 hex nuts.
Axle Rod
Push leg extenders into right legs.
Attach back brace to cart with 1/4-20x1/2" screws,
7mm Flat
Washer and 7mm Lock Washer on each side.
18
Upper Front panel
Lower Front panel
