battery release clip

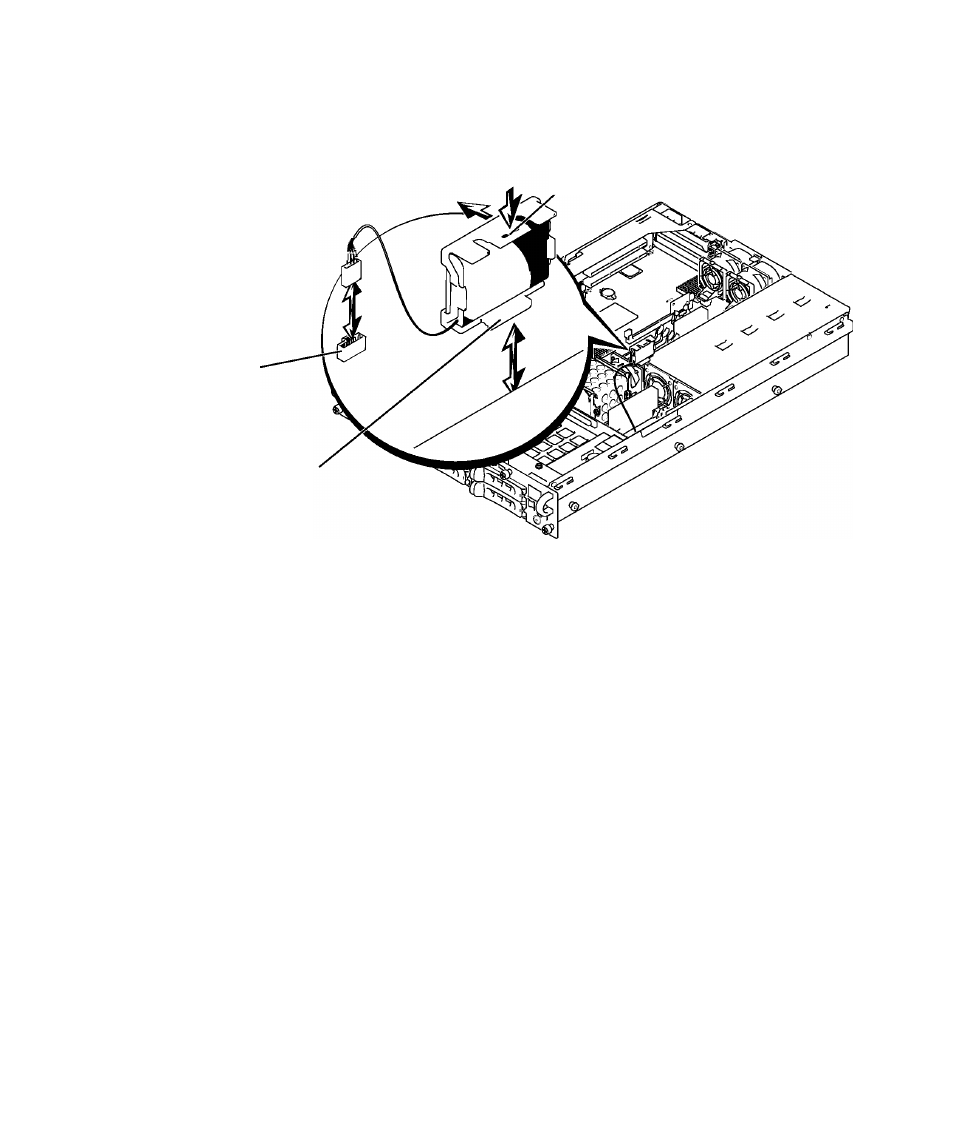

F i g u r e 1 - 3 . R e m o v i n g a n d I n s t a l l i n g t h e R A I D B a t t e r y

system board

connector

battery

retention tab

Replace the cover (see "Replacing the Cover" in your Installation and Troubleshooting

Guide).

Reconnect the system to its electrical outlet and turn the system on, including any

attached peripherals.

Enter the System Setup program and verify that the setting for the SCSI controller has

changed to reflect the presence of the RAID hardware (see "Using the System Setup
Program" in your User's Guide).

Install the RAID software.

See the RAID controller documentation for more information.

1 - 4

I A c t i v a t i n g t h e I n t e g r a t e d R A I D C o n t r o l l e r
