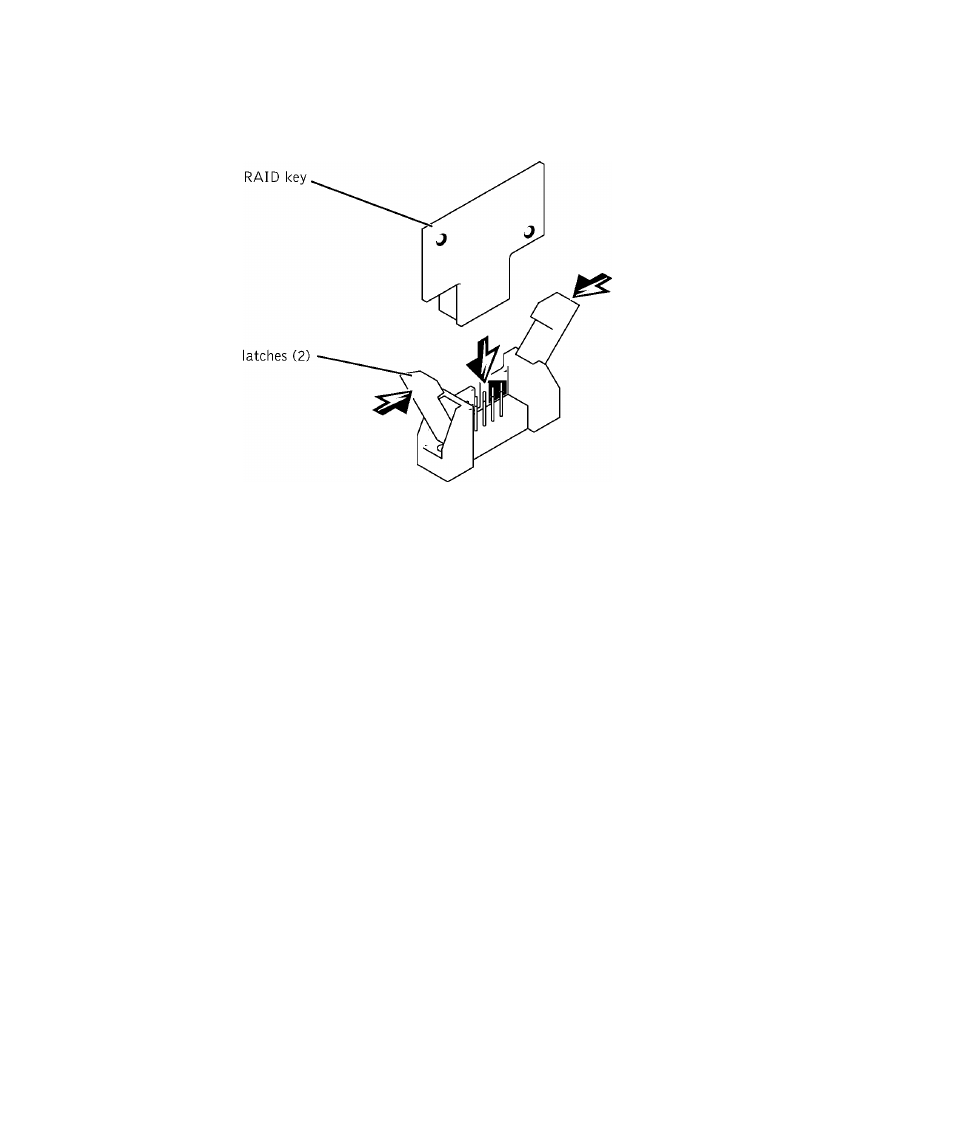

F i g u r e 1 - 2 . I n s t a l l i n g t h e R A I D H a r d w a r e K e y

9

Connect the battery cable to the RAID battery cable connector on the system board

(see Figure 1-3).

To locate the RAID battery cable connector on the system board, see your Installation

and Troubleshooting Guide.

10

Hook the retention tab on the bottom of the battery into the slot in the chassis side

wall, and then snap the battery release clip into place (see Figure 1-3).

A c t i v a t i n g t h e I n t e g r a t e d R A I D C o n t r o i i e r

|

1 - 3
