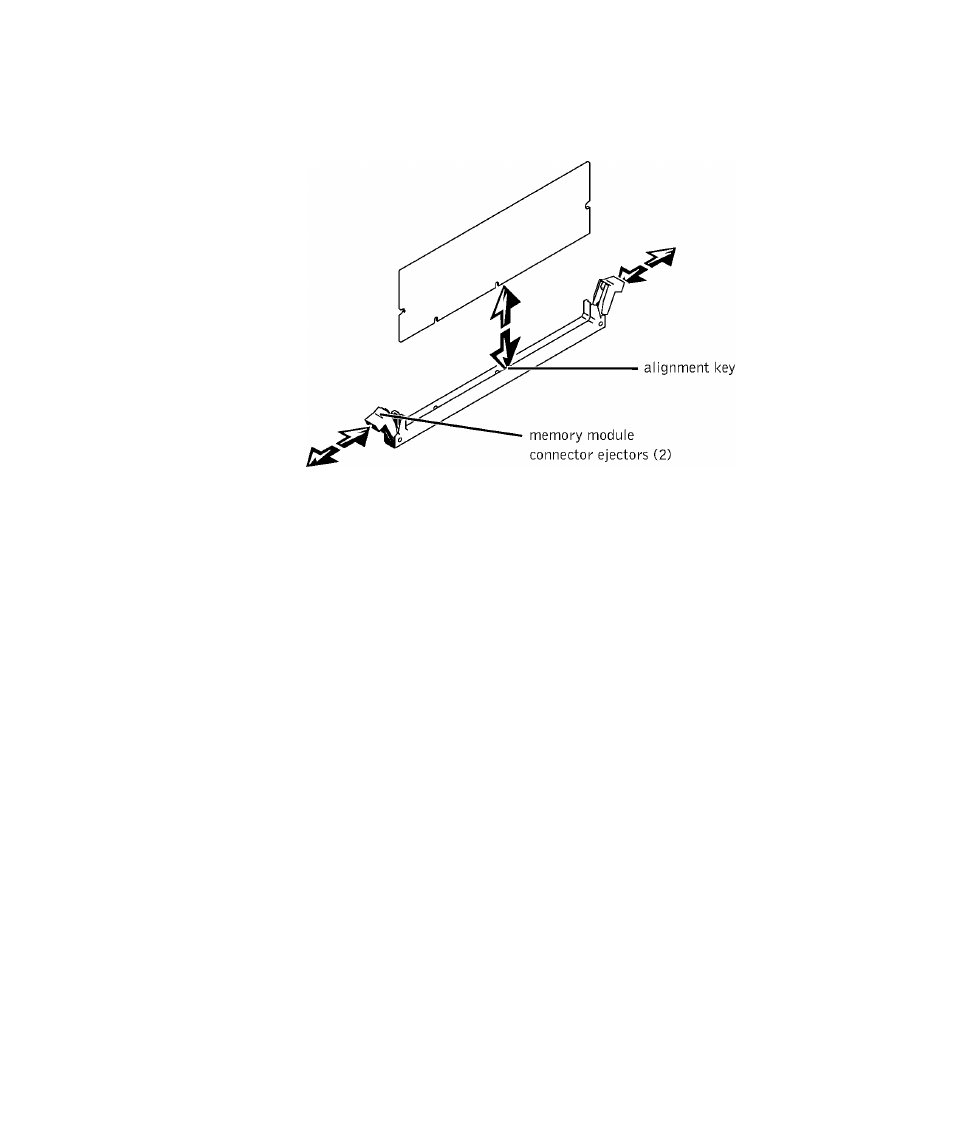

F i g u r e 1 - 1 . I n s t a l l i n g t h e R A I D C o n t r o l l e r M e m o r y M o d u l e
6 Push the ejectors on the RAID hardware key connector down and outward to allow the
key to be inserted into the connector (see Figure 1-2).
7 Insert the RAID hardware key into its connector on the system board and secure the
key with the latches on each end of the connector (see Figure 1-2).
To locate the RAID hardware key on the system board, see your Installation and
Troubleshooting Guide.
8 Press on the hardware key with your thumbs while pulling up on the ejectors with your
index fingers to lock the hardware key into the connector.
1 - 2 I A c t i v a t i n g t h e I n t e g r a t e d R A I D C o n t r o i i e r
