To setup Corel Draw X5 follow the steps below:
Note: If this ‘install’ option does not appear change the
file extension from ‘.ICM’ to ‘.ICC’ and repeat the
above.

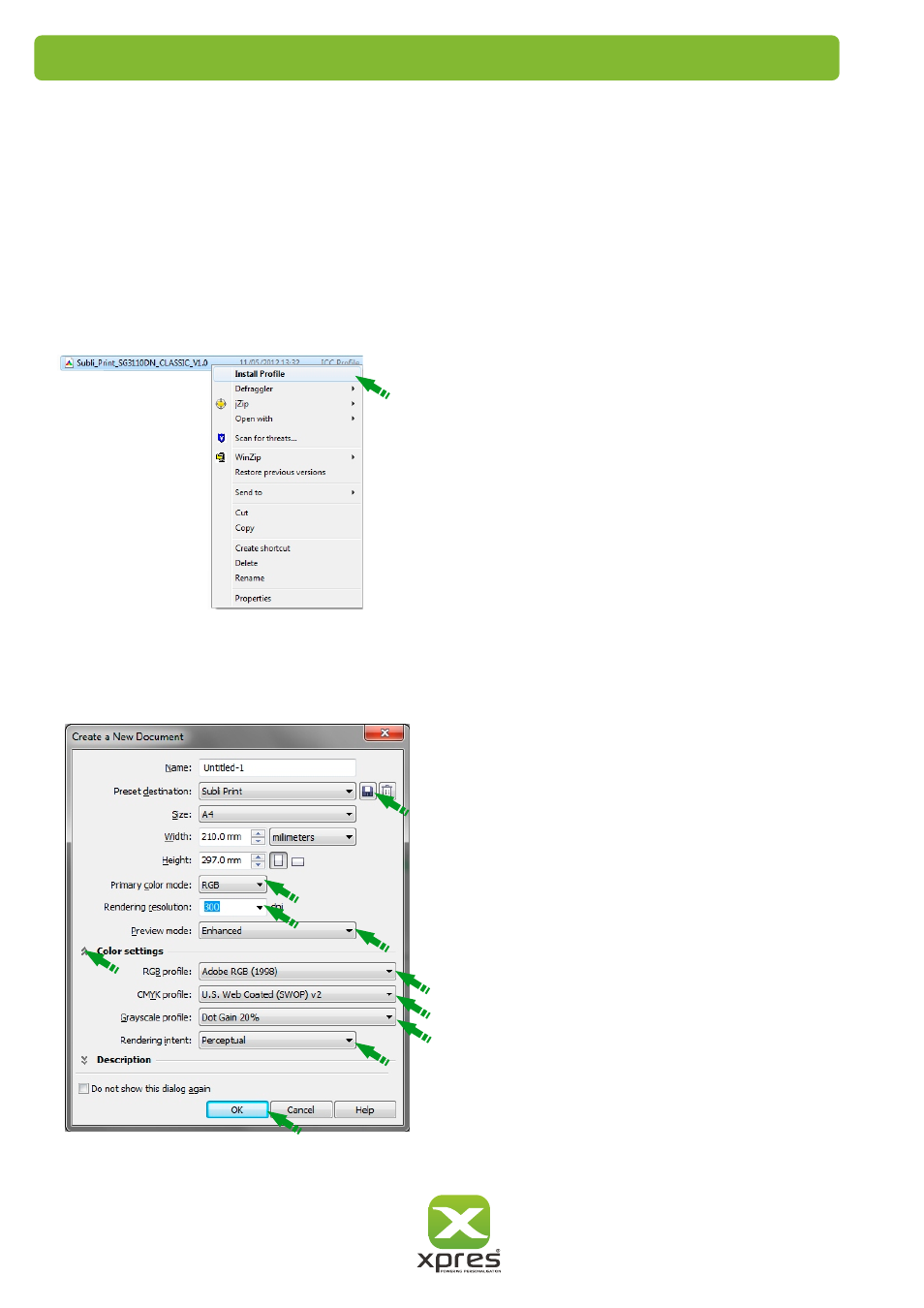

2. Now open Corel Draw and open a new page. When prompted, configure a new document workspace
13
CorelDRAW X5 / X6 Setup
1. Before opening Corel Draw you need to install the Xpres Sublimation Colour Profile, this can be downloaded
from
or can be found on the Subli Print DVD supplied.
Save the Colour Profile on to your Desktop (drag and drop if taking directly from the supplied DVD). Now Right Click the
Colour Profile (Subli_Print_SG3110DN_CLASSIC_V1.0) and select ‘Install Profile’ - There will be no confirmation
www.xprestechnical.co.uk
that the file has been installed (when you right click the profile again the drop down box will show ‘Uninstall Profile’ - we.
now know that the profile is installed correctly.
with the settings as shown below.
1. Primary color mode: RGB
2. Rendering resolution: 300
3. Preview mode: Enhanced
4. Click the down arrow to view Color Settings
5. RGB profile: Adobe RGB (1998)
6. CMYK profile: U.S. Web Coated (SWOP) v2
7. Grayscale profile: Dot Gain 20%
8. Rendering intent: Perceptual
9. Add Preset: Name your new preset
10. Click OK to continue
1
2
3
4
6
7
9
8
10
5
