Workrite two-piece Worksurfaces - Manual

Workrite Ergonomics | 800.959.9675 www.workriteergo.com
#1500123 - Rev B
F
#12 x ¾” Screws
Qty: 8 - 24
D
Draw Bolt with nut
and washer
Qty: 1 - 3
C
Biscuits
Qty: 1 - 3
A
Right Top Half
(size and shape differ
for each model)
Qty: 1
B
Left Top Half
(size and shape differ
for each model)
Qty: 1
Parts by Carton

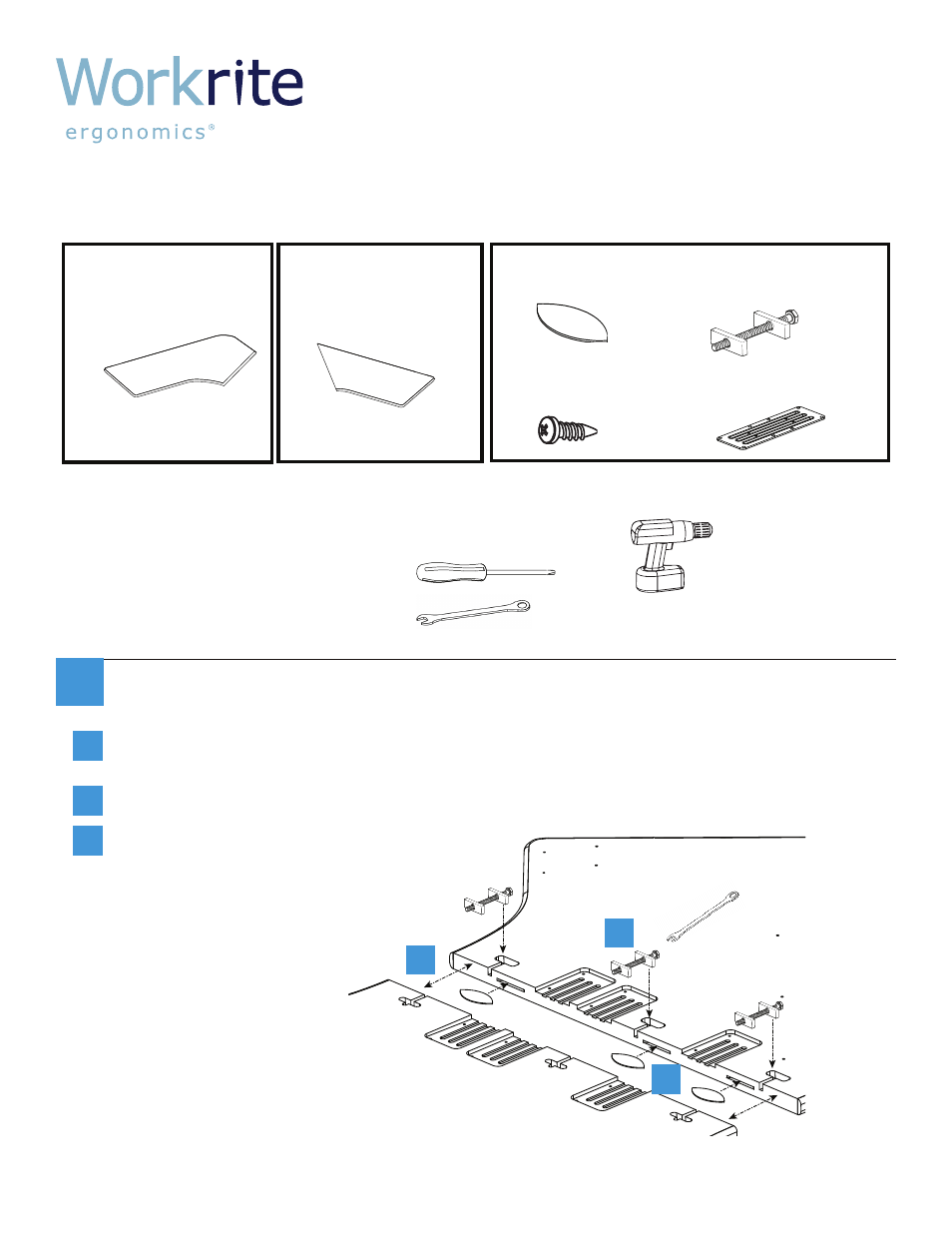

Assembly Instructions
for two-piece Worksurfaces
Join Halves using Biscuits and Draw Bolts
Insert Biscuits in slots.
Push Worksurface halves together.
Place Draw Bolts into slots, and tighten with
wrench, while squeezing Table Halves together.
1
A
a
b
a
b
C
B
Verify that you have all the hardware and tools needed for the assembly
You will also need:
#3 tip Phillips screwdriver or drill bit
7 /
16
" Open-end wrench
or
G Brackets
Qty: 1 - 3
c
c
D
