Sonoma Series™ VALUE Workcenters - Assembly Instructions for Tables with Left Front Crank
5
6
Center Leg
Left Leg
Right Leg

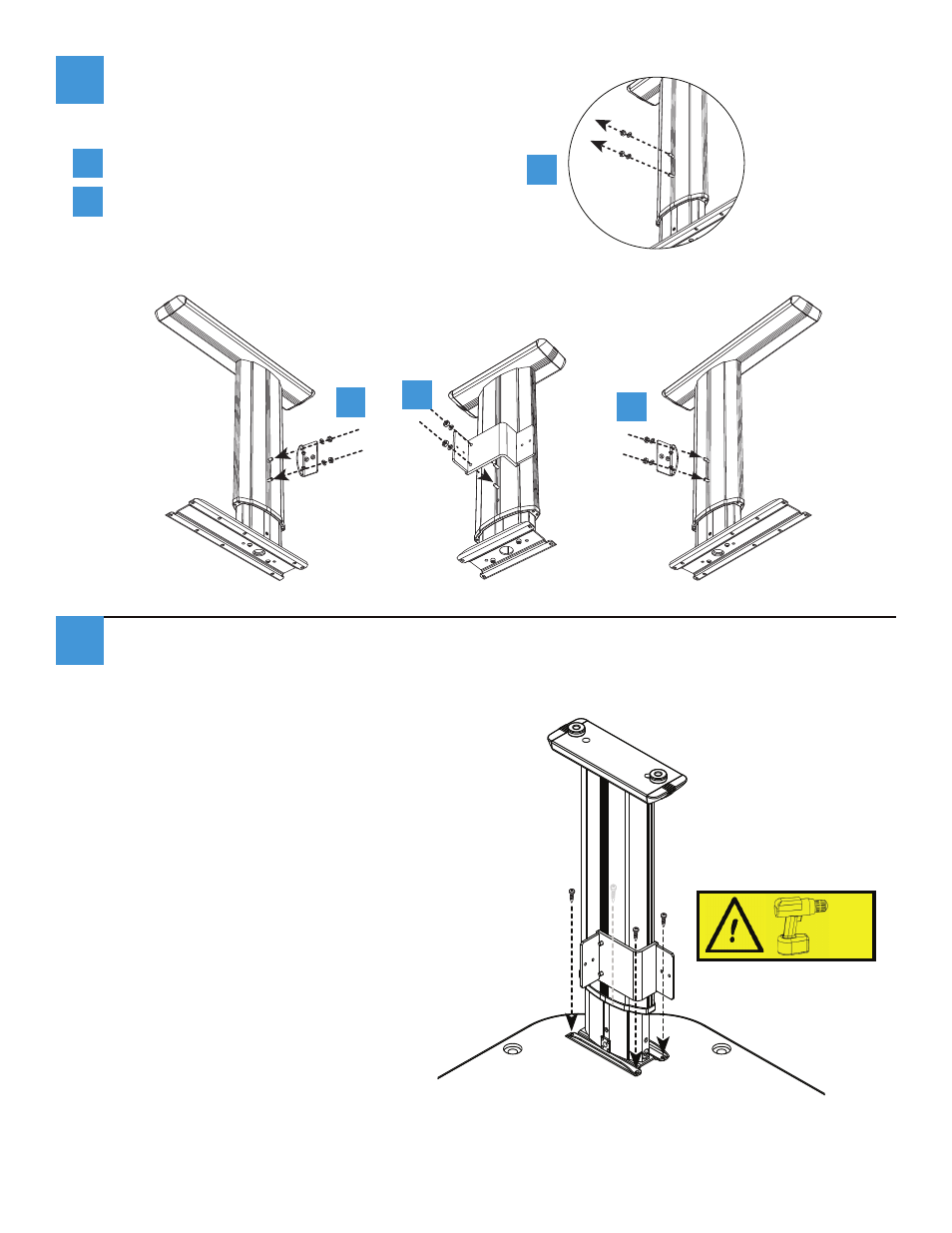

For 3-Leg Tables: Attach Leg Brackets
Turn legs upside down.
Remove nuts and lock washers from leg studs.
Slide Leg Brackets onto studs and reinstall nuts
and lock washers. Note how the flange orients to
the leg.
a
b
a
b
b
B
C
D
M M
N
b
For 3-Leg Tables: Secure Center Leg to Table
For base-only products, proceed to step 7.
Attach Leg 2 (center leg) to table using four Wood
Screws provided. Use locating holes. If you use an
electric screwdriver, be sure it is on the lowest torque
setting to avoid stripping the threads.
C
A
V
Set at
lowest
torque.
