Cleaning the Humidifier and Replacement of Evaporative Drip Pad

BEFORE STARTING WORK, BE SURE THE POWER TO THE WINE GUARDIAN COOLING UNIT

AND HUMIDIFIER ARE TURNED OFF.

MAKE SURE THE POWER CORD IS DISCONNECTED FROM THE POWER SOURCE.

1) Start by disconnecting the electrical power and shutting off the water supply.

2) Remove the access panel at the back of the humidifier.

3) Remove the drip pad by lifting up on the spring-loaded drip tray.

4) To clean the drain, pour some hot water mixed with a cleaning solution into the drain area of

the humidifier to flush the dirt down the drain tube.

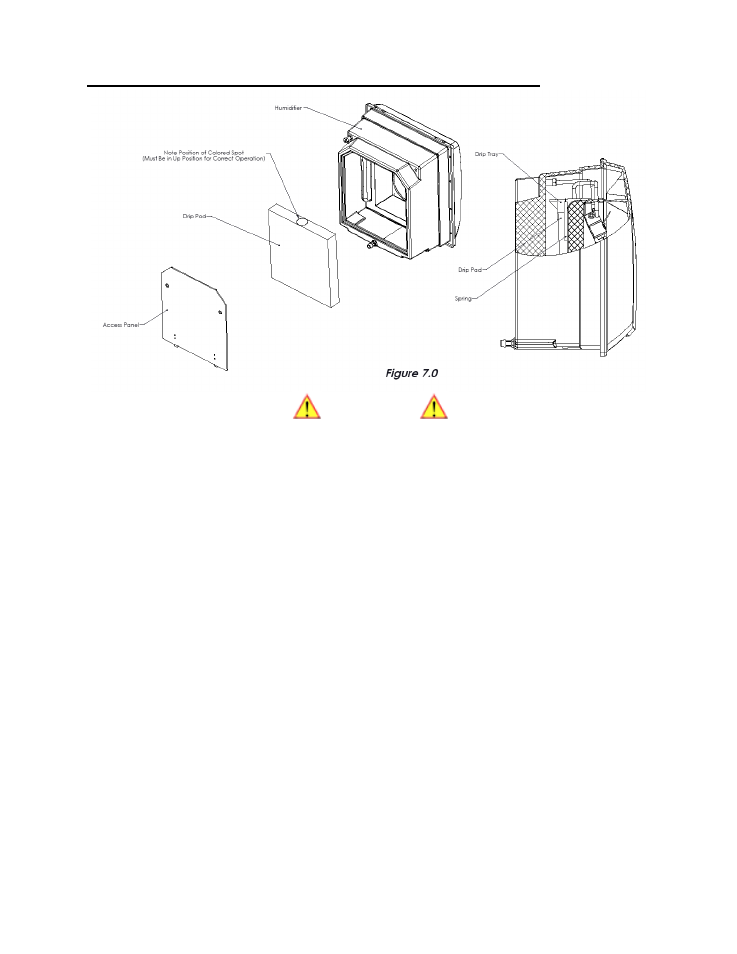

5) Check the humidifier pad. If dirty or excessive mineral deposits are present, install a new

evaporative pad. Replace the pad by lifting up on the spring-loaded drip tray. Note: the pad
must be installed in the correct position. There is a colored spot painted on one end of the
pad. This is the top of the pad and must be installed with the colored spot UP, next to the
distribution trough. There is no inlet or outlet side for the airflow, only the requirement that
the colored spot be on the top.

6) Be sure the water feed tube is aimed into the center of the tray.

7) Turn on the water and power.

8) Check for operation. See instructions under Start-Up. Be sure water is flowing into the

distribution tray and flows freely out the holes and over the pad. If water flow is not a steady
flow, the strainer and/or orifice may need service. See below.

9) Re-install the humidifier access cover.
