Operators guide
15
Applications
The head is typically installed as part of a robotic system and can be remotely controlled by the
Vinten Radamec Control System (VRC), Legislative Control System (LCS) or the MultiController
II. Refer to the appropriate user guide or operating instructions provided with the control system
for information on operating the head remotely.
VRC and LCS installations
The VRC system and LCS can control multiple HS-102P heads. A typical system includes the
controller with joystick control panel, head power supply, EPI interface and remotely operated
heads (Fig. 5). Each head has its own dedicated power supply that provides power to the head
and data connection between the head and controller.

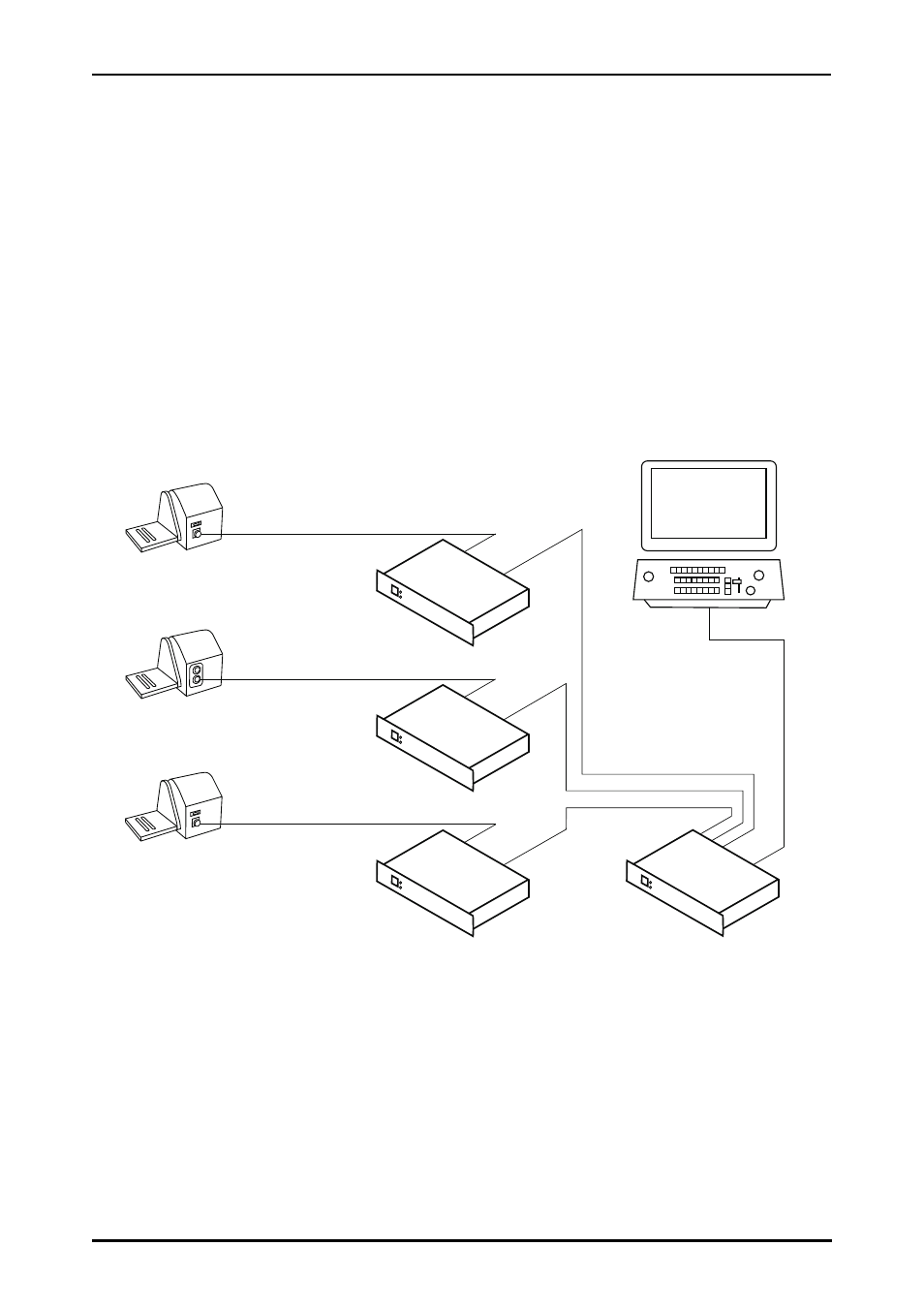

Fig. 5 Typical VRC/LCS system
HS-102P
HS-102PE
HS-102P
(up to 6 heads)
EPI Interface
AM-SP-CAB-XXX
AM-DD-CAB-XXX
Data Cable
AM-HLE-CAB-XXX
Power/Data floor cable
AM-SP-CAB-XXX
PSU AM-PS27-5R
or AM-PS30-2
PSU AM-PS27-5R
or AM-PS30-2
PSU AM-PS27-5R
or AM-PS30-2
Ethernet
VRC or LCS
User Interface
