FH/FHR-145 Pan and Tilt Head
Box Contents and Tools Required
Installation

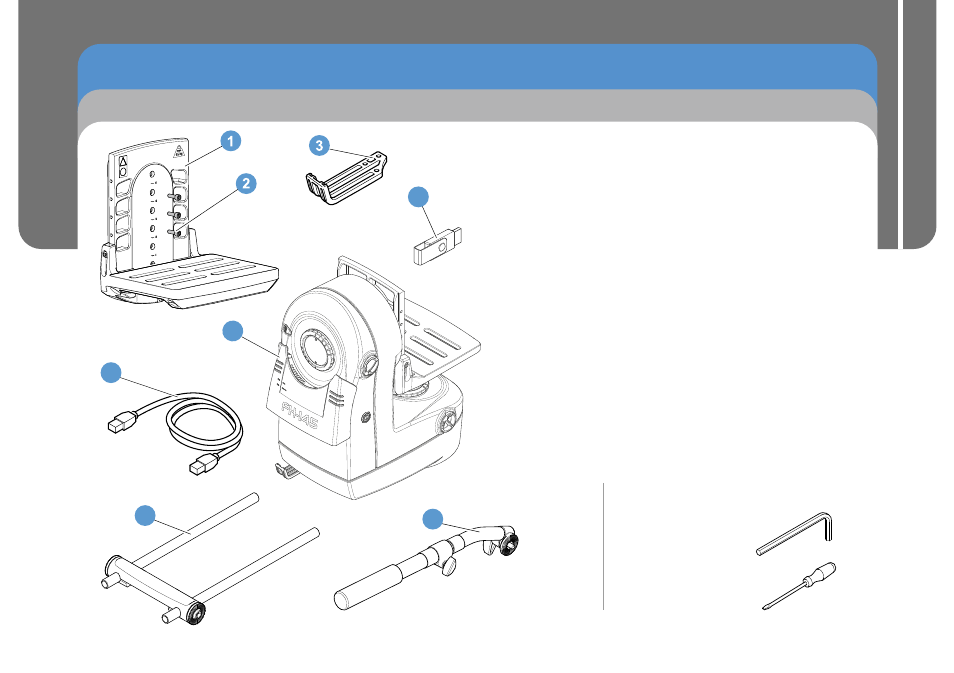

Box contents
FH-145/FHR-145 pan and tilt head
6 . . . . . . . . . . . . . . . . . . . . . . . . Ethernet cable, Cat5e FTP, 2m
7. . . . . . . . . . . . . . . . . . . . . . . Pan bar assembly (FH-145 only)
(comprising rosette bar and two 400 mm rods)
8 . . . . . . . . . . . . . Pan bars, telescopic, black, x2 (FH-145 only)
NI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Power cable, 2m
NI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cable ties, black, x5
NI. . . . . . . . . . . . . . M4 countersunk screws (cable bracket), x3
NI . . . . 3/8" BSW x 3/4" cap head screws (camera screws), x2
NI . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8" head fixing bolts, x4
NI . . . . . . . . . . . . . . . . . . . . . . . Vinten spanner (for head bolts)
NI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Installation Guide
NI . . . . . . . . . . . . ICE Tool Configuration Guide (on USB stick)
1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Camera cradle
(comprising backplate and mounting plate)
2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Centre screws, x3
3 . . . . . . . . . . . . . . . . . . . . . Cable management bracket, large
4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USB memory stick
5 . . . . . . . . . . . . . . . . . . . . .
NI = Not illustrated
Tools required
5 mm Allen key
5/16" Allen key
5/64" Allen key
5
6
Installation Guide
8 7
4
Flat-blade
screwdriver
5
