4.2 Operation with other air supplies
Amongst others, the set of transition pieces

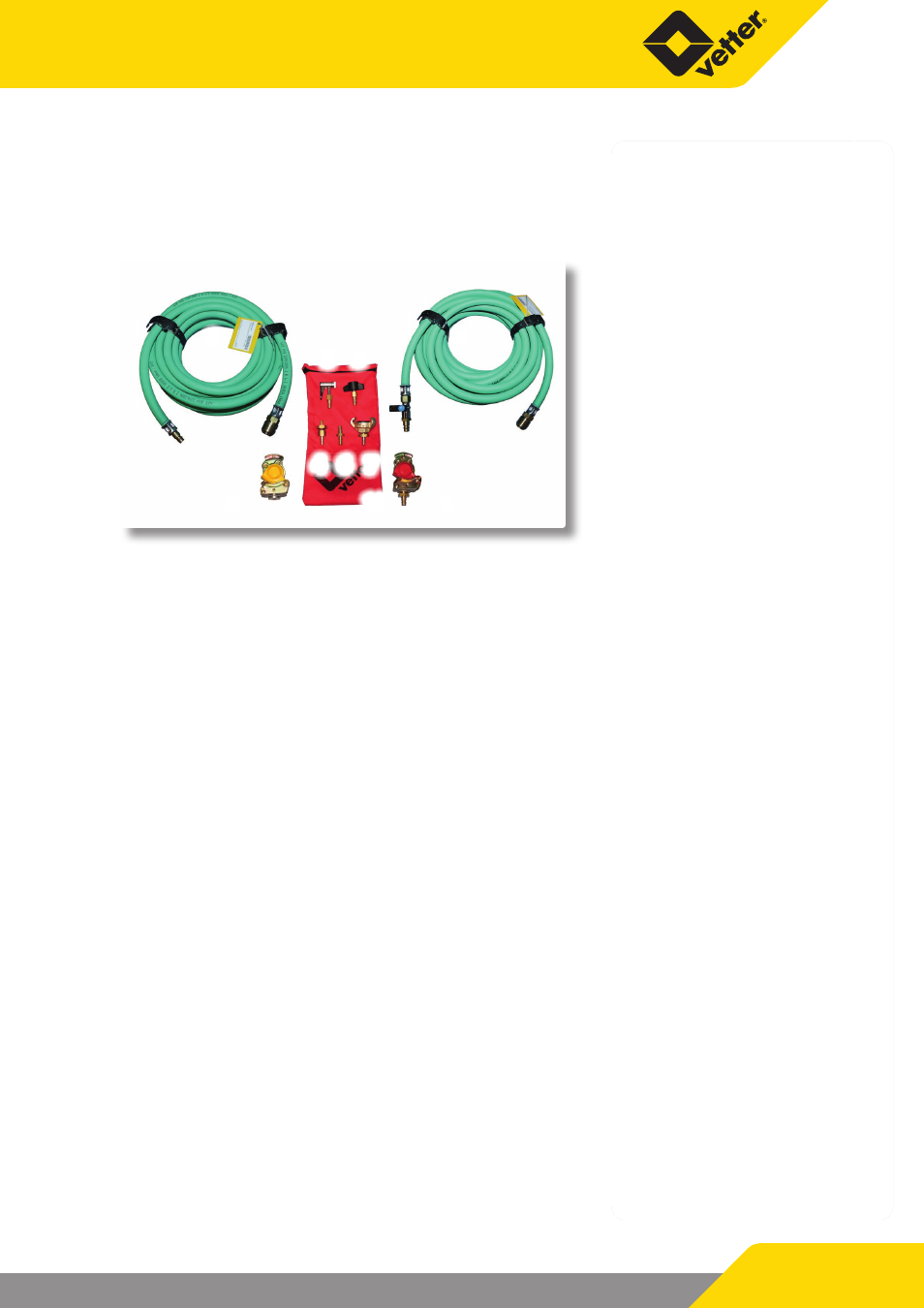

(Art. No.: 1600 0125 01) with the following adapters are available
for operation with other air sources:
2 1
3
4
5
6 7
8 9
10
1. Truck compressed air connection, dual brake system.
For tapping air out of the trailer coupling head.
2. Dummy coupling
Seals off the control line of the brake system
Remember! Ensure that the truck does not roll, use brake
blocks!
3. Truck tyre inflation device adapter
For tapping off air from the so-called tyre inflation bottle near
the brake.
Remember! The tyre inflation connection must be ensu-
red by a safety valve as a standard (blow-off pressure ap-
proximately 7.5 bar)!
4. Truck tyre valve
Inflation with a normal hand or foot pump as well as other air
supplies for tyre inflation.
5. Truck tyre valve connection, can be clamped
For extracting air for the spare tyre.
6. Adapter for the local air pressure network.
7. Adapter Construction-site compressor
8. Air supply hose, 10 m, green.
9. Air supply hose, 10 m, green, with blocking valve.
10. Case, red
4.3 Dismantling of the lifting bag system after use
Dismantling of the lifting bag system is carried out after ensuring
the lifted load and complete deflation of the lifting bag system,
including dismantling of all accessory parts in the reverse order.
