Carrier 42VMC - Manual (Page 12)

42VMC
GB - 11
E N G L I S H
Heat pump
Unit System
Unit System
ባ
ቢ
10 100
10 120
ቢ Mains supply connecting cable
(field wiring).
ባ Connecting cable, indoor-outdoor units
(field wiring).
³ Indoor unit
· Outdoor unit
» Main switch
¿ Time-delay fuse or circuit breaker
(see outdoor unit installation manual)
Terminal box legend
Earth.
L Live power supply.
N Neutral power supply.
N Neutral connection indoor/outdoor unit.
R Live connection indoor/outdoor unit.
C Neutral connection indoor/outdoor unit.
Y Compressor interlocking contact.
O Reversing valve control.
W2 Outdoor fan signal.
S Defrost end signal.

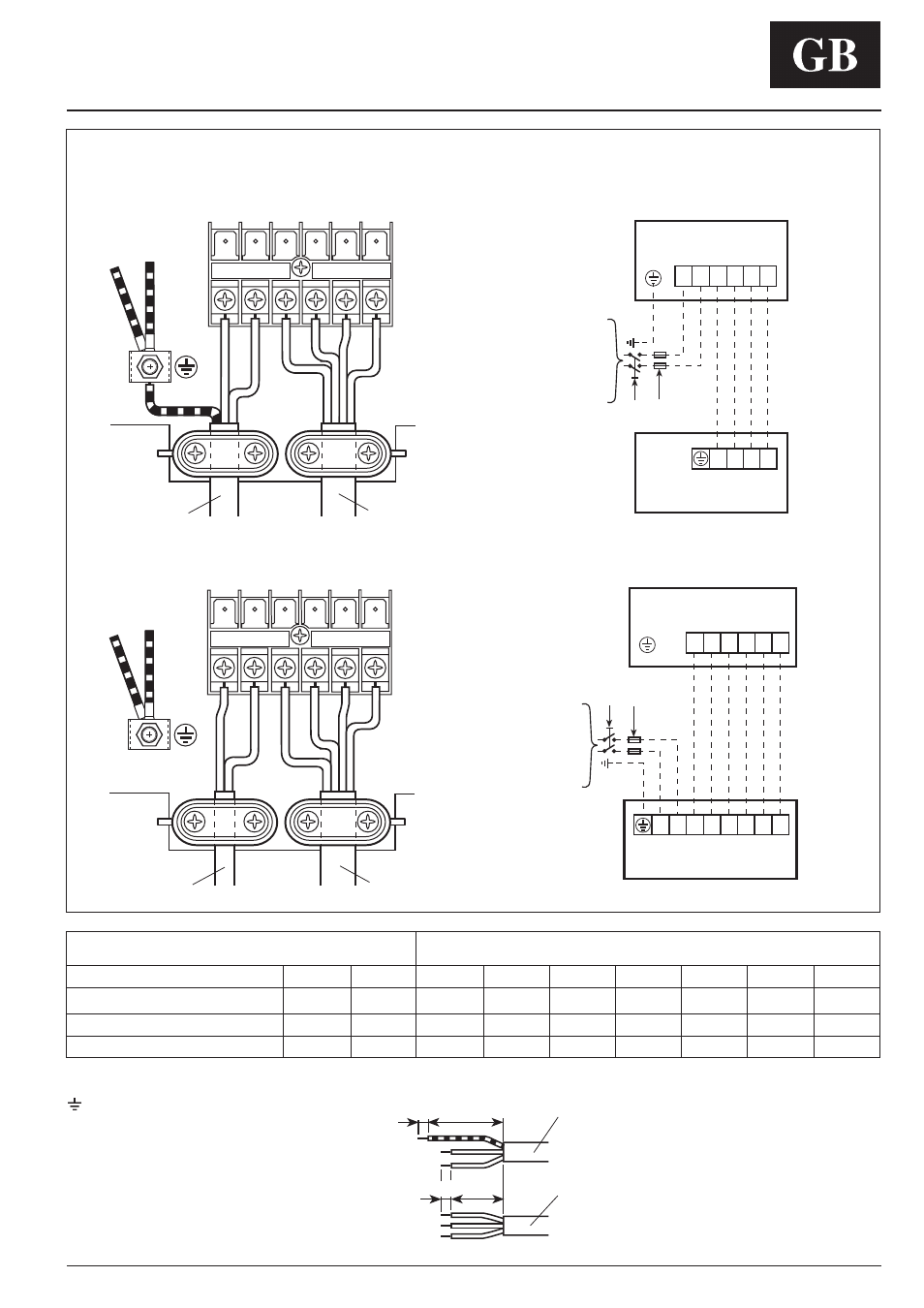

Electrical connections
R S O C Y W
2
L Y O N N W
2
ቢ
ባ
ባ
ባ
42VMC 009, 012, 014
42VMC 018, 024
L Y N
³
·
Y N
230V ~ 50Hz
» ¿
N O W 2
O W 2
³
·
230V ~ 50Hz
» ¿
R L C Y N O W 2
R Y O C W 2 S
S
Minimum connection wire size between
indoor and outdoor units (mm 2 )
Model L N N R C Y O W2 S
42VMC 009 2.5 2.5 1.5 – – 1.5 1.5 1.5 –
42VMC 012, 014 2.5 2.5 2.5 – – 2.5 2.5 2.5 –
42VMC 018, 024 – – – 1.5 1.5 1.5 1.5 1.5 1.5
