Qwik Install
STEP 0: The BATTMETER is normally installed between a power
source like a charge controller or generator and the battery or battery
array. The load would normally be connected to the charge controller. If
load is connected directly to the battery the load would be connected to
the V+ and V– terminals of the BATTMETER,
STEP 1:

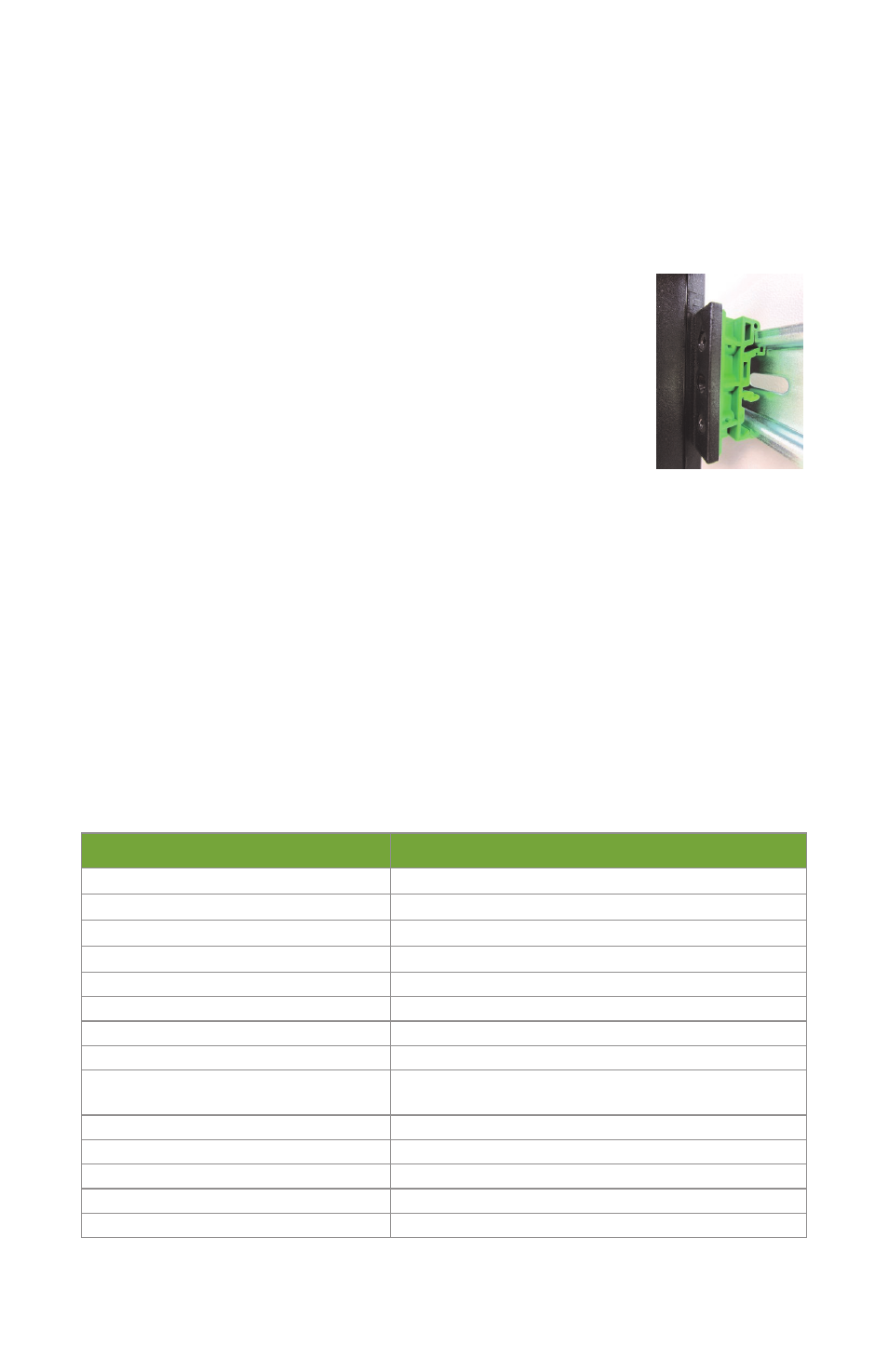

Install the BATTMETER to a wall or to a DIN
Rail using the included green DIN Rail adapters. The
DIN rail adapters have a fixed end which normally goes
towards the top and a latch end that normally goes to-
wards the bottom.
STEP 2: Connect up to 12AWG wire from the Battery
negative terminal to one of the BATTMETER VB– screw
terminals.
STEP 3: Connect up to 12AWG wire from the battery positive terminal
to one of the BATTMETER VB+ screw terminals.
STEP 4: Connect your charge controller and/or load negative to one of
the BATTMETER V– screw terminals.
STEP 5: Connect your charge controller and/or load positive to one of
the BATTMETER V+ screw terminals.
Specifications
Current Range +/- 20A
Current Accuracy +/- 0.25A
Voltage Range 0-30VDC
Voltage Accuracy +/- 0.2V
Self Consumption Current <1mA
Meter Type Analog, Self Zeroing
Wire Terminal Connections 9 Total (3 V+, 2 Battery +, 4 V-)
Wire Size (Maximum) 12AWG
Fuse
Internal, Glass Cartridge Replaceable 20A,
SFE-20 or AGX-20 Type
Operating Temperature -40 to +85°C (-40 to +185°F)
Operating Humidity 0% to 85% non condensing
Case – Color Powder Coated Steel - Black
Size (L x W x H) 127 x 102 x 33mm (5 x 4 x 1.3”)
Weight 210g (7.5oz)
