Tjernlund DJ-3, D-3, HD, I, IL, XL Draft Inducer 8504003 Rev A 07/00 User Manual
Page 9
8

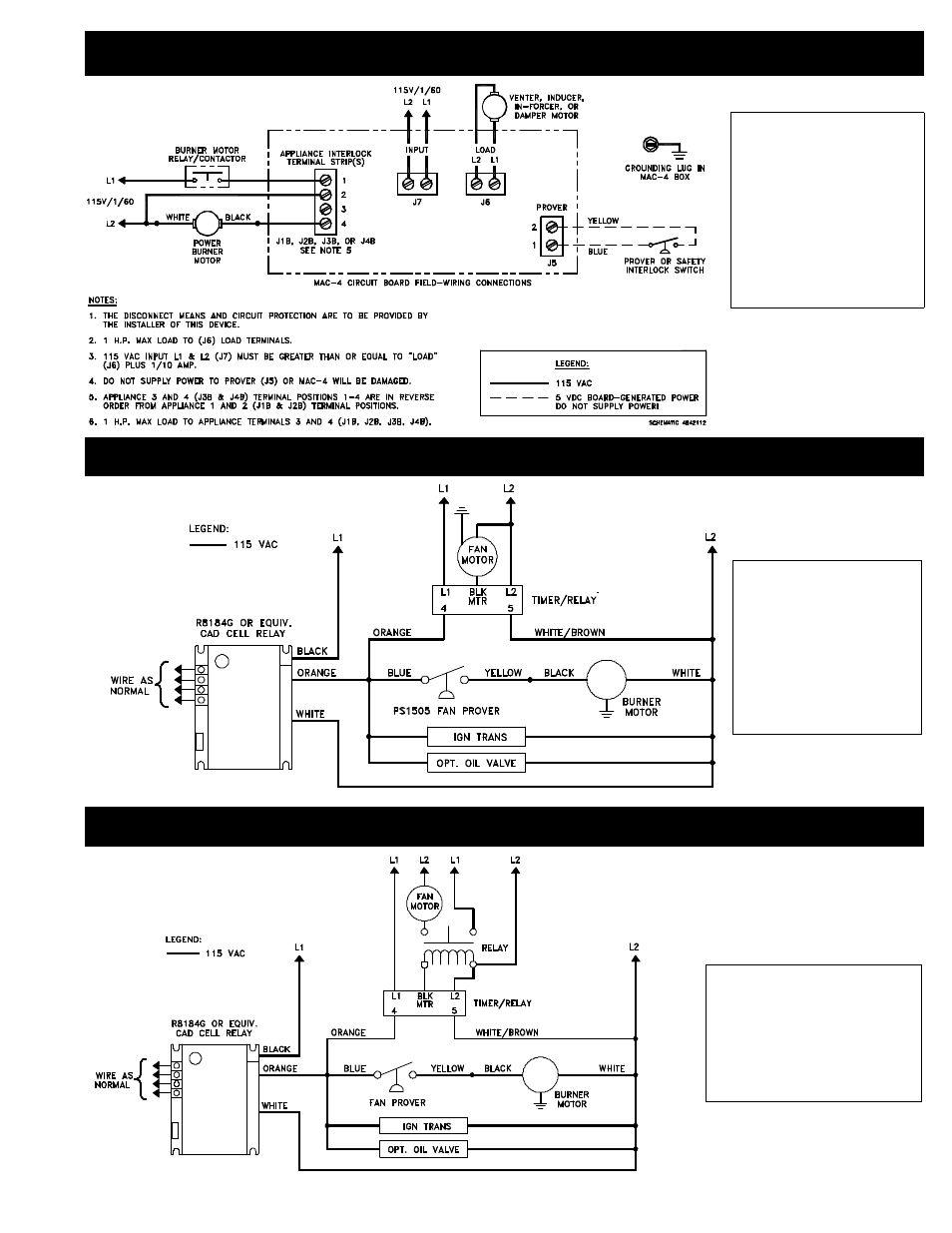

DRAFT INDUCER CONNECTED WITH UP TO 4 115V GAS APPLIANCES WITH THE MAC-4 CONTROL
(IF MOTOR LOAD IS GREATER THAN 1 H.P. AN ISOLATION RELAY WILL HAVE TO BE ADDED, SEE TOP OF PAGE 7)
DRAFT INDUCER CONNECTED TO OIL BURNER WITH R8184G CONTROLS
(DRAFT INDUCER MOTOR LESS THAN 4.4 AMPS) MODELS I, IL, XL MUST USE 950-0483 ISOLATION RELAY
DRAFT INDUCER CONNECTED TO OIL BURNER WITH R8184G CONTROLS
(DRAFT INDUCER MOTOR GREATER THAN 4.4 AMPS) INCLUDES MODELS I, IL, XL
COMPONENTS NEEDED:
(1) DRAFT INDUCER
(1) PS1505 FAN PROVER
(1) 950-1067 RELAY/TIMER
MAXIMUM AMP LOAD IS
4.4 AMPS
USE DIAGRAM BELOW IF
DRAFT INDUCER MOTOR
IS GREATER THAN 4.4 AMPS
COMPONENTS NEEDED:
(1) DRAFT INDUCER
(1) PS1505 FAN PROVER
(1) 950-1067 RELAY/TIMER
MAXIMUM AMP LOAD IS 4.4 AMPS
(1) 950-0483 115/115V RELAY
COMPONENTS NEEDED:
(1) MAC-4 APPLIANCE CONTROL
(1) DRAFT INDUCER
(1) PS1505 FAN PROVER
NOTE: The MAC-4 is used for
wiring up to 4 heating appliances
with Draft Inducers, Power Venters
or IN-FORCERs. It is suitable for
any combination of 24 VAC and 115
VAC control systems for gas and oil
burners.
