The reset switch, The reset switch -3 – Cabletron Systems 9T428-16 User Manual
Page 17
2-3
Installation
The Reset Switch
The Reset switch is located on the front panel, under the top plastic tab as shown
in Figure 2-2. It serves two functions:
¥
Pressing the reset switch twice within three seconds causes the processor (i960)
to reset.
¥
Pressing and holding the switch for three or more seconds causes the module
to shutdown. Pressing and holding the switch again for three seconds restarts
the module.
SNMP management may be used to disable this switch to enhance module
security.

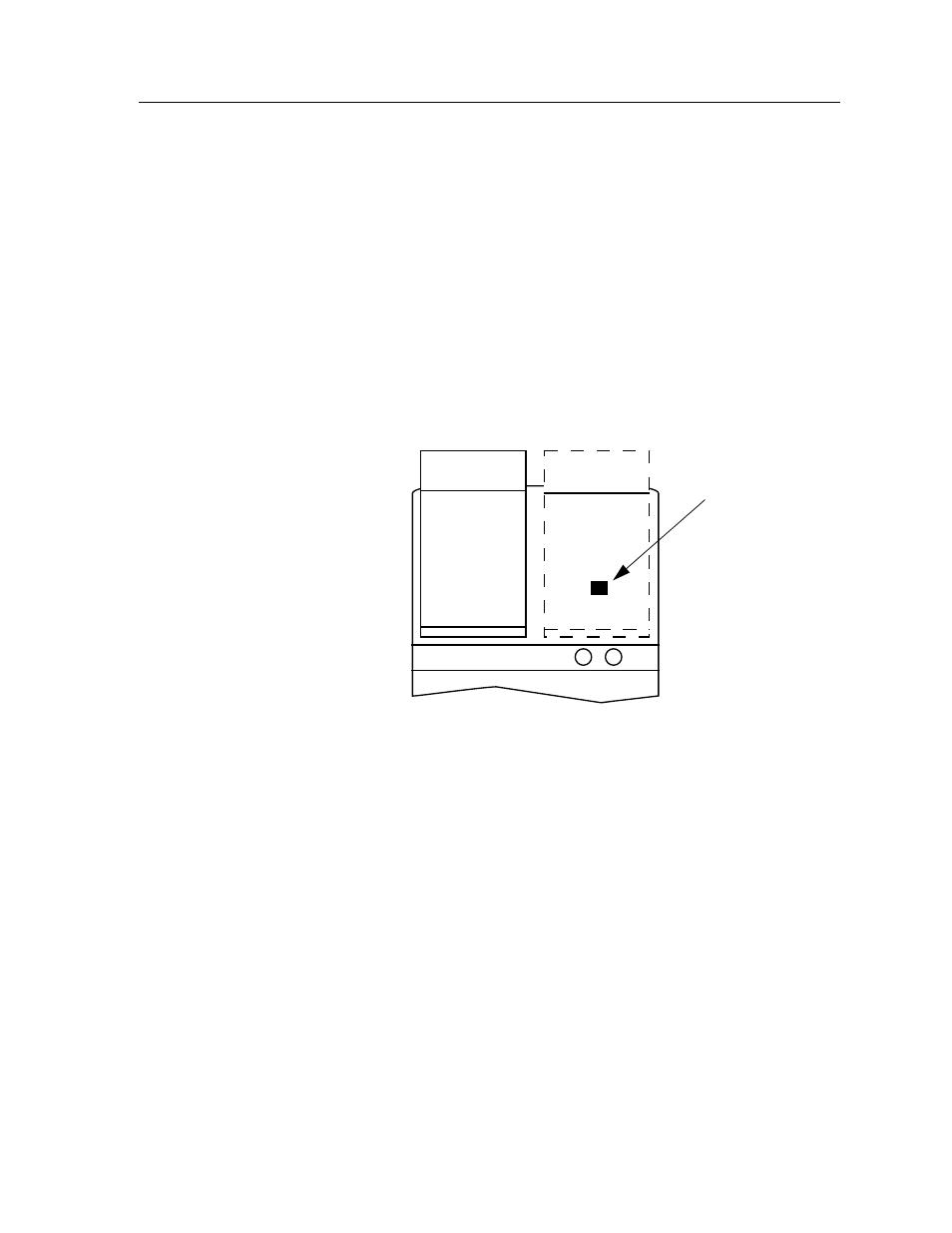

Figure 2-2. The Reset Switch
SMB
CPU
Reset Switch
