28
1500/2000VA and 3000VA include external battery port to provide additional
battery runtime. Also, 3000VA has designed an internal battery inside the
UPS.
Follow the procedure to install additional battery as below.
There are two external battery ports for each side of UPS itself and battery
pack.
1.Connect the battery cable to the external battery port of the rear of UPS.
2.Then connect the supplied battery cable from extended battery module to
the external battery port of the rear of previous UPS.
3.If adding additional extended battery packs, repeat above steps.
Caution: Connecting battery cable to external battery port may cause
spark if adding up additional battery.

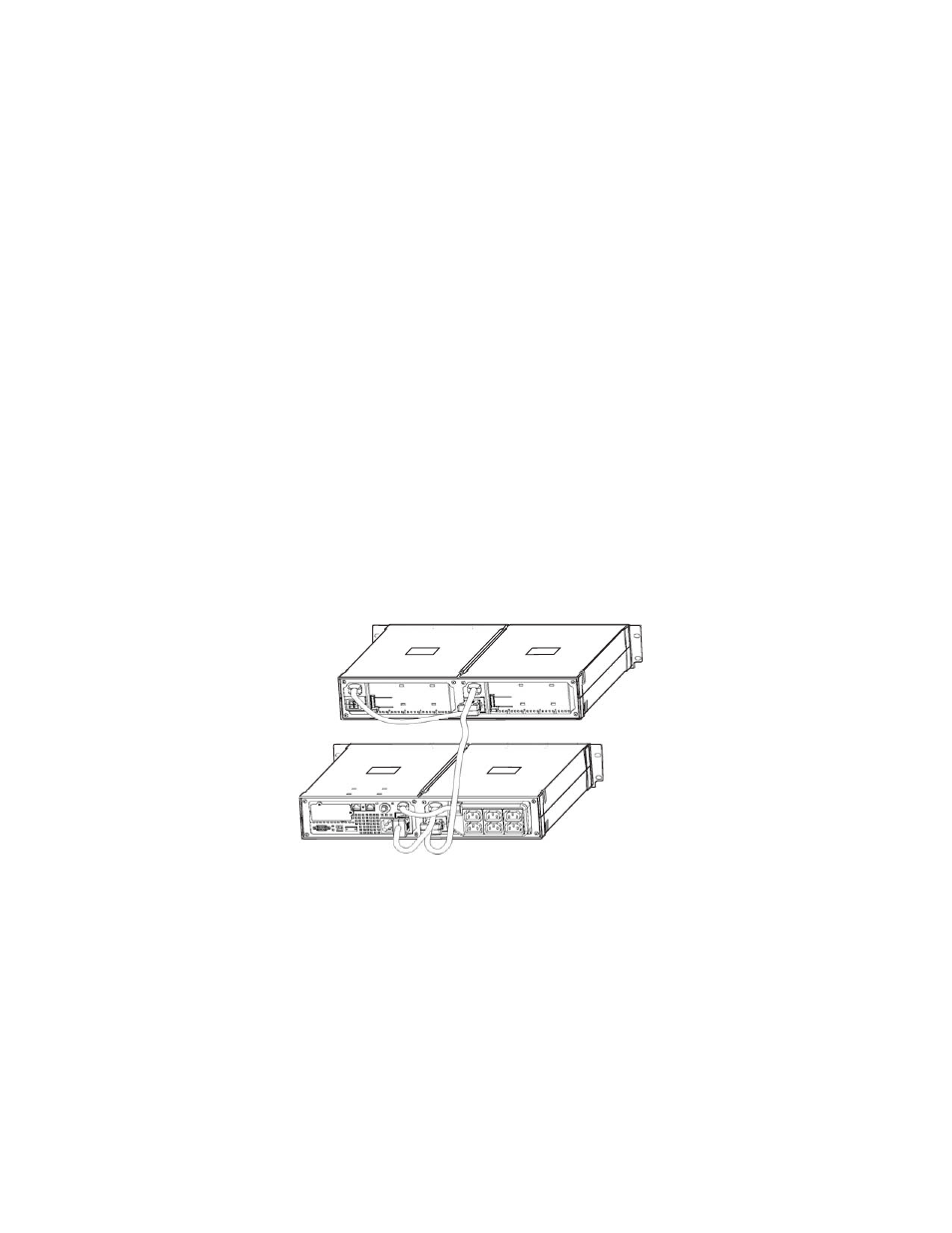

1500/2000VA
Additional battery connection in rack form
l
5. ADDITIONAL BATTERY INSTALLATION SETUP
