A. C. MODULAR GENERATOR SYSTEM
Page 18 of 50

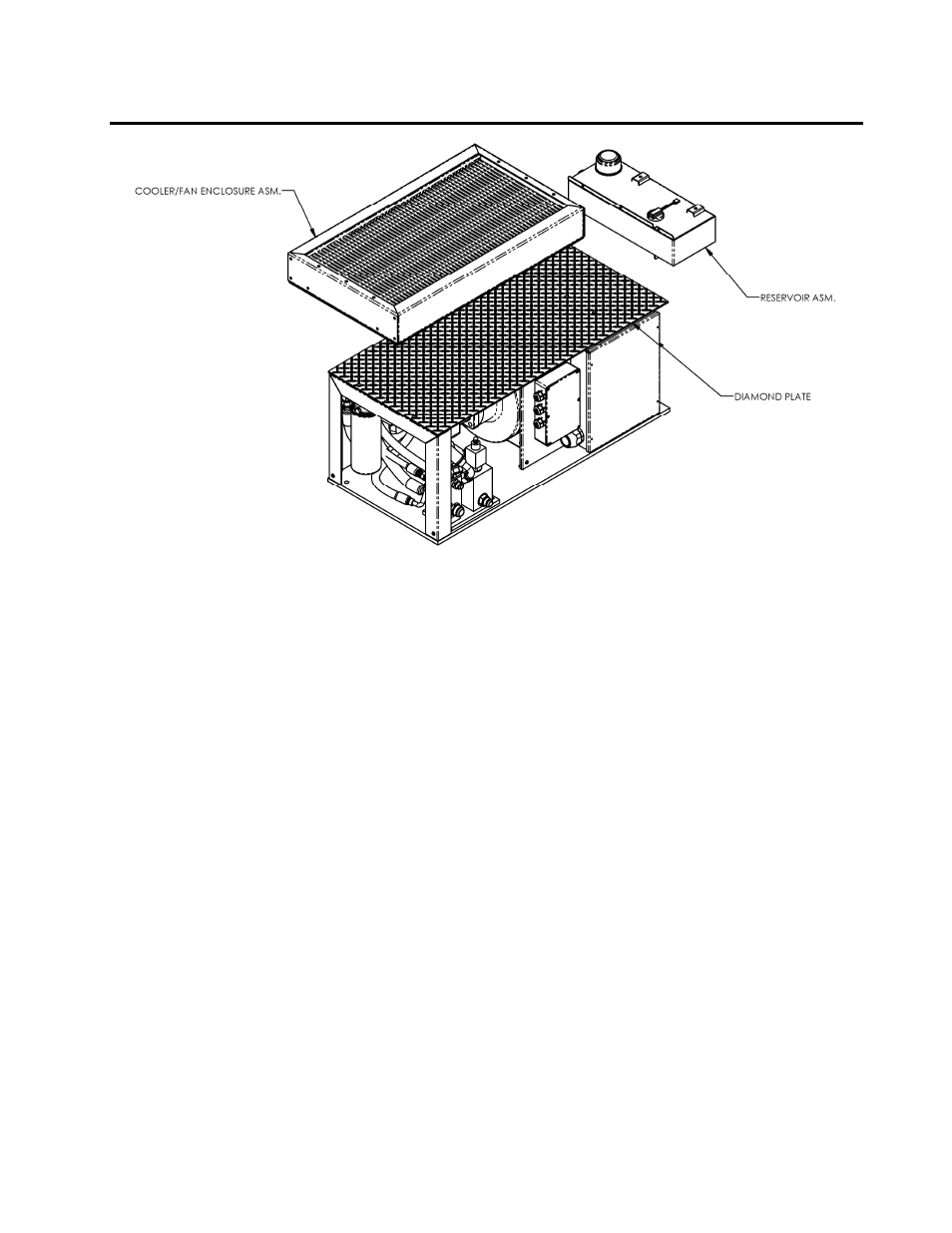

HR-20, HR-25, and HR-30 tray assemblies disassembled into base tray assembly
(with diamond plate cover added), cooler/fan enclosure and reservoir
Figure 9
6.
Mount Command & Control Center:
a. Create hole pattern as shown in Figure 10.
b. Mount Command & Control Center to vehicle using #10 stainless steel
fasteners.
c. Connect Command & Control Center to system controller unit using p/n
3722004 harness.
