Changing the bulb – SINGER 1732 Esteem User Manual
Page 19
Disconnect the machine from the power supply by removing
the plug from the main socket!
Replace bulb with same type rated 10 watts (110-120V area)
or 15 watts (220-240V area).

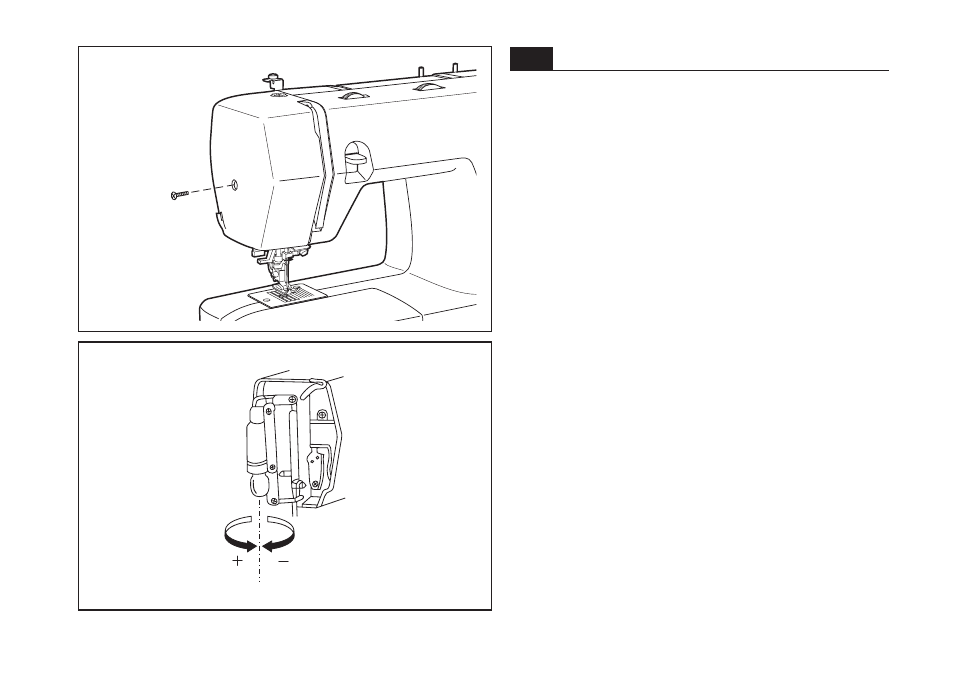

- Loosen screw (A) as illustrated. (1)
- Remove the face plate (B).
- Unscrew the bulb and install a new one (C). (2)
- Replace the face plate and tighten screw.
Should there be any problem, ask your local dealer for advice.
12
Changing the bulb
1
2
C
A
GB
B
