LAYOUT MULLION AND ANCHOR CENTERLINES
GENERAL NOTE:
FRAMES ARE INTENDED TO BE INSTALLED FROM LEFT TO RIGHT WHEN VIEWED FROM
EXTERIOR.
DETAILING IN THIS INSTALLATION MANUAL MAY VARY FOR SPECIFIC PROJECTS.
1. CHECK STRUCTURAL OPENING
Slab or beam elevation must be within adjustment of anchoring system.
Structural surfaces to receive anchoring system must be level and plumb within the adjustment limits
at head, sill and jamb. See approved shop drawings for allowable adjustment.

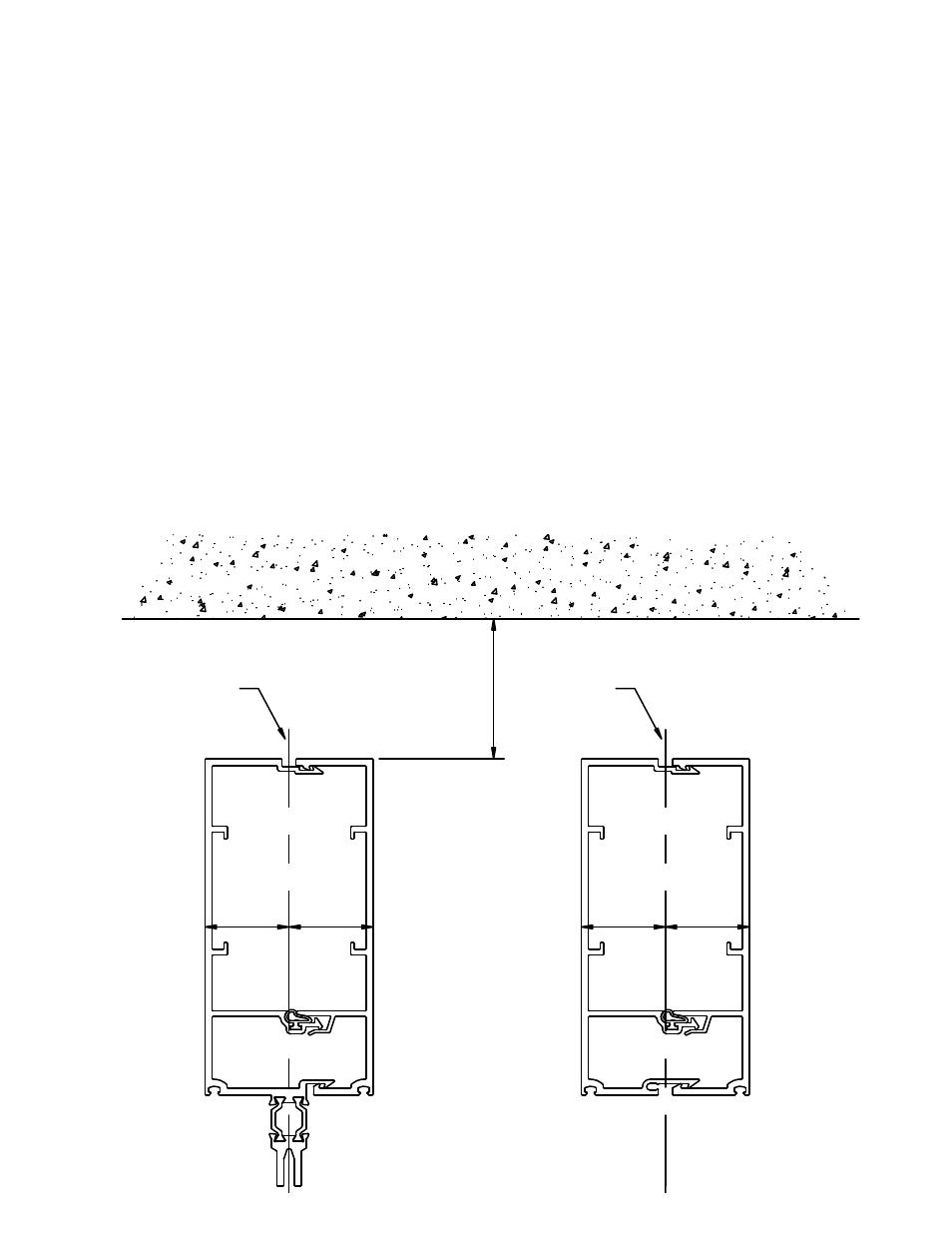

2. LAYOUT MULLION AND ANCHOR CENTERLINES
Face of slab/beam
2.50"
±
1
" building
to
lerances
Typical
captured
mullion Typical
SSG
mullion
Centerline of
mullion
±1/32" Centerline of
mullion
±1/32"
SIGNATURE SERIES UNIT WALL INSTALLATION MANUAL
1 1/2" 1 1/2" 1 1/2" 1 1/2"
