Replacing wiper blades
365
Installing wiper blades

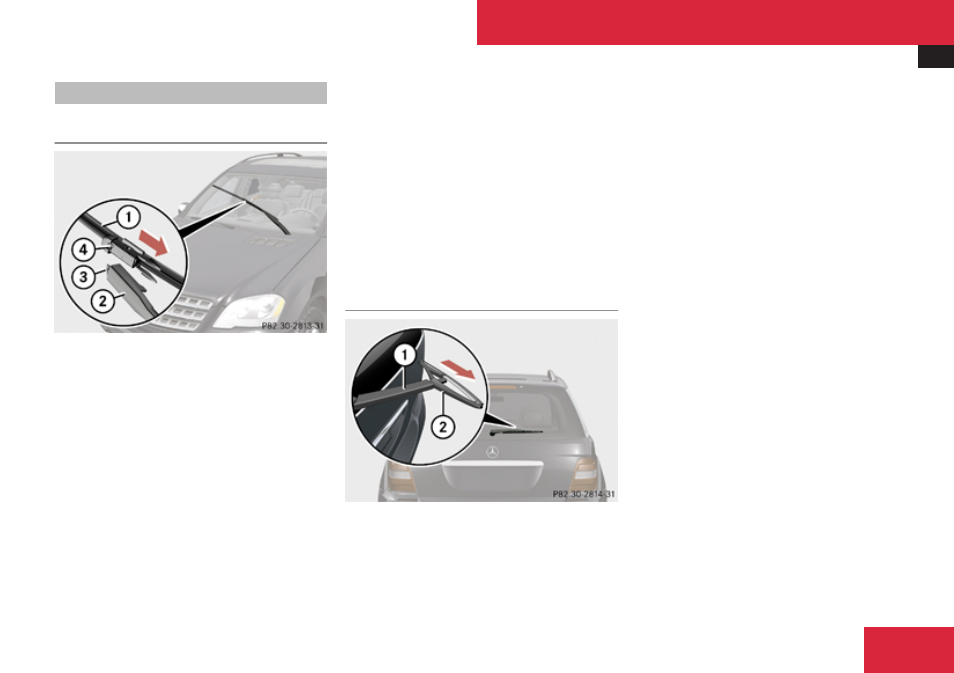

Front wiper blades
1 Wiper blade
2 Attachment
3 Guide tab
4 Opening
X With guide tab 3 sliding into opening 4 ,
place wiper blade 1 onto wiper arm in
direction of arrow.
X Fold wiper blade 1 towards wiper arm.
Tabs 2 ( Y page 364) must engage into
both recesses of attachment 2 .
X Check whether the wiper blade is securely
fastened.
X Fold the wiper arm backward to rest on the
windshield.
Make sure you hold on to the wiper arm
when folding it back.
! Make sure the wiper blades are properly
installed. Improperly installed wiper blades
may cause windshield damage.
Rear wiper blade
1 Wiper arm
2 Wiper blade
X Insert wiper blade 2 into wiper arm 1 .
X Hold wiper arm 1 and engage wiper blade
2 by pushing it in direction of arrow until
it locks into place.
X Check whether the wiper blade is securely
fastened.
X Fold the wiper arm to rest on the rear
window.
Make sure to hold on to the wiper when
folding the wiper arm back.
! Make sure the wiper blade is properly
installed. An improperly installed wiper
blade may cause rear window damage.
Practical hints
