Manhattan LCD HD089B&C Version 1 User Manual

Page 8

Section:

Section: Using Advanced Features

Using Advanced Features

False Color:

aaaaaaaaaaaaa

False color is used for setting the correct exposure level or ISO

setting on your camera. It is important to use false color when

you are shooting in low light and direct light situations because

if your shot is severely under/overexposed you may not have to

re-shoot an entire scene of your video. This is how you use this

feature.

To activate False Color press MENU scroll to the Advanced Tab

and turn the False Color slider to the ON position hit MENU

again to activate it. To deactivate it follow the reverse

procedure. If you have a HD089BV2 or HD089CV2 you can

assign a hotkey to this feature under the setup tab.

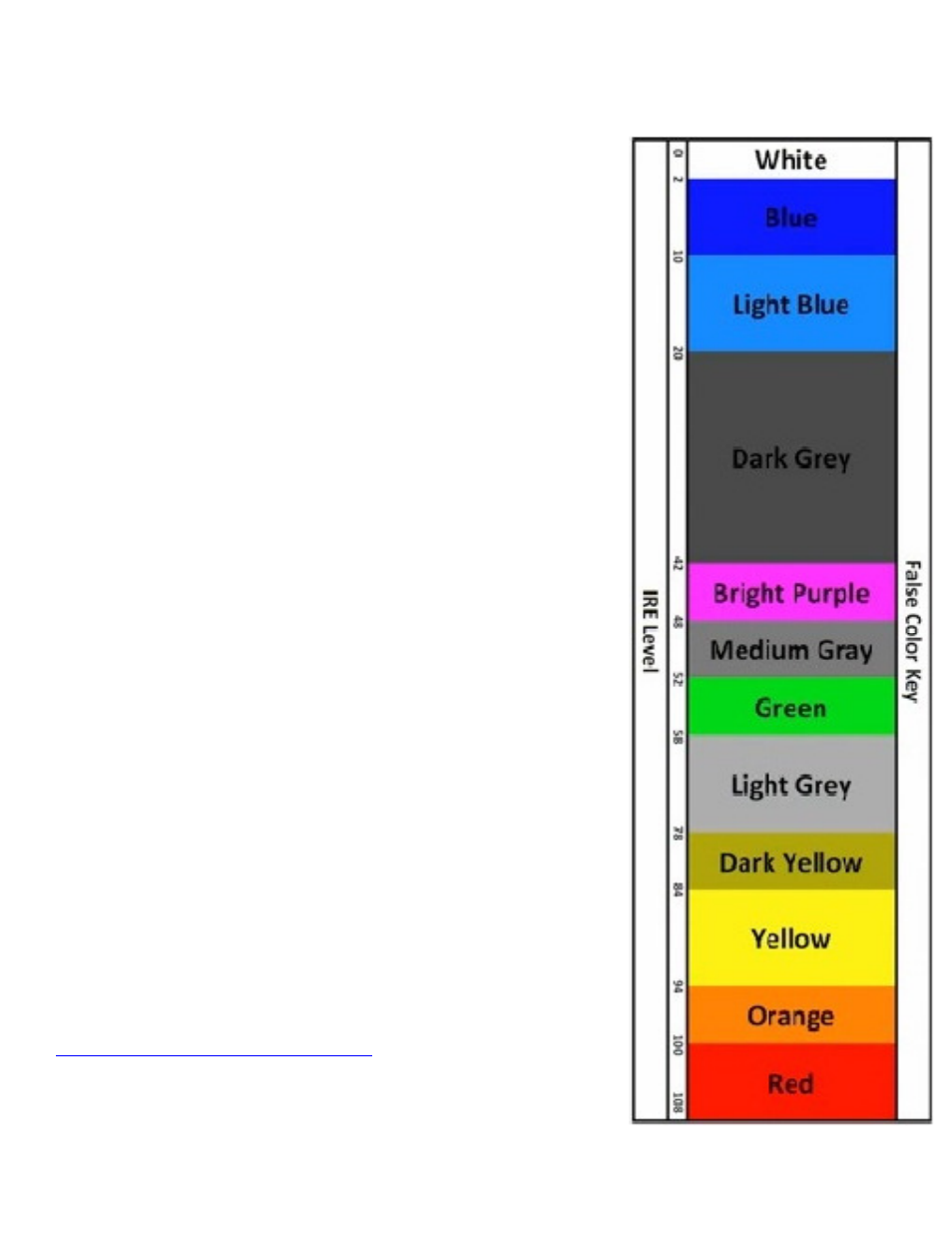

Completely underexposed or completely pitch black objects will

be totally white (0-2 IRE).

The very dark shadows, black colored objects and barely visible

objects in shadows will be Blue & Light Blue (2-20 IRE).

Lighter shadows & dark colors such as a dark grey or a shadow

on the side of a face or object will show up as Dark Grey &

Bright Purple (21-48 IRE)

The object of your video such as an object or persons face

should be, Medium Grey, Green & Light Grey (48-78 IRE).

Heavily lit areas ones where it appears to be in direct contact

with light will display as Dark Yellow & Yellow (78-84 IRE)

Overexposed areas ones which will appear white or near white

in your video will display as Orange & Red (85-108 IRE)

A video detailing how to use False Color can be viewed online
